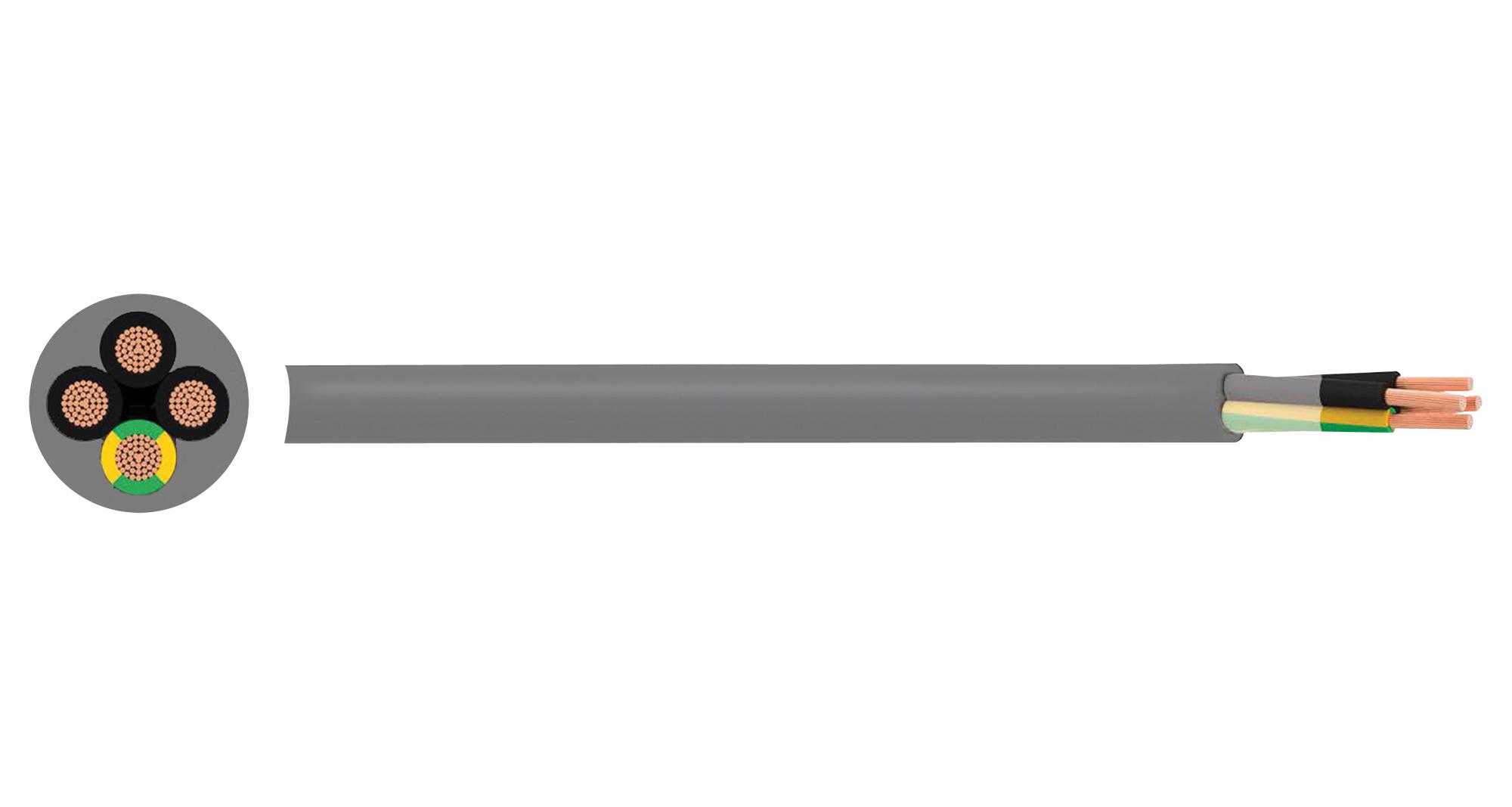

MULTICOMP-PRO PP001522 Flexible Polyurethane Multicore Cable
Flexible Polyurethane Multicore Cable is ideal for industrial use, offering exceptional flexibility and durability in tools, production lines, and outdoor installations. Constructed with Class 5 flexible copper conductors, PVC insulation, and a PUR sheath, this cable resist oils, chemicals, abrasion, and mechanical stress. It meets VDE standards and RoHS compliance, suitable for wet or dry environments with a voltage rating up to 500V and test voltage of 4kV. Available in various configurations for versatile applications, this cable ensures reliable performance and safety in demanding settings.
MULTICOMP-PRO PP001522 Flexible Polyurethane Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 4kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 10 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC
- Sheath: PUR (Polyurethane)
- Core Identification: Black with white number + Green/Yellow
- Dimensions: Diameter varies with core count and cross-sectional area, typical weight varies from 53 kg/km to 430 kg/km
- Standards: VDE 0295, VDE 0293-334, VDE 0285-525-1, VDE 0285-525-2-51
- RoHS: Yes, compliant
- Construction: Non-woven polyester tape separator, PVC insulation, PUR sheath
- Current Carrying Capacity: 0.75 mm² - 12 A, 1 mm² - 15 A, 1.5 mm² - 18 A, 2.5 mm² - 26 A
Buy the Multicomp Polyurethane 150 PP001522 – Reliable Flexible Industrial Cable
Purchase the versatile and durable flexible polyurethane multicore cable online today. Designed for industrial tooling, outdoor applications, and production lines, it offers excellent resistance to oils, chemicals, and mechanical stress. This cable ensures safety and high performance across a range of environments with RoHS compliance and meets global standards. Ideal for dry, wet, or ambient conditions, it features flexible copper conductors, PVC insulation, and a PUR sheath for longevity and safety, making it the perfect choice for demanding industrial projects.
Order your Multicomp Polyurethane 150 PP001522 today and give your projects the dependable quality they deserve with versatile, oil-resistant cable solutions.
