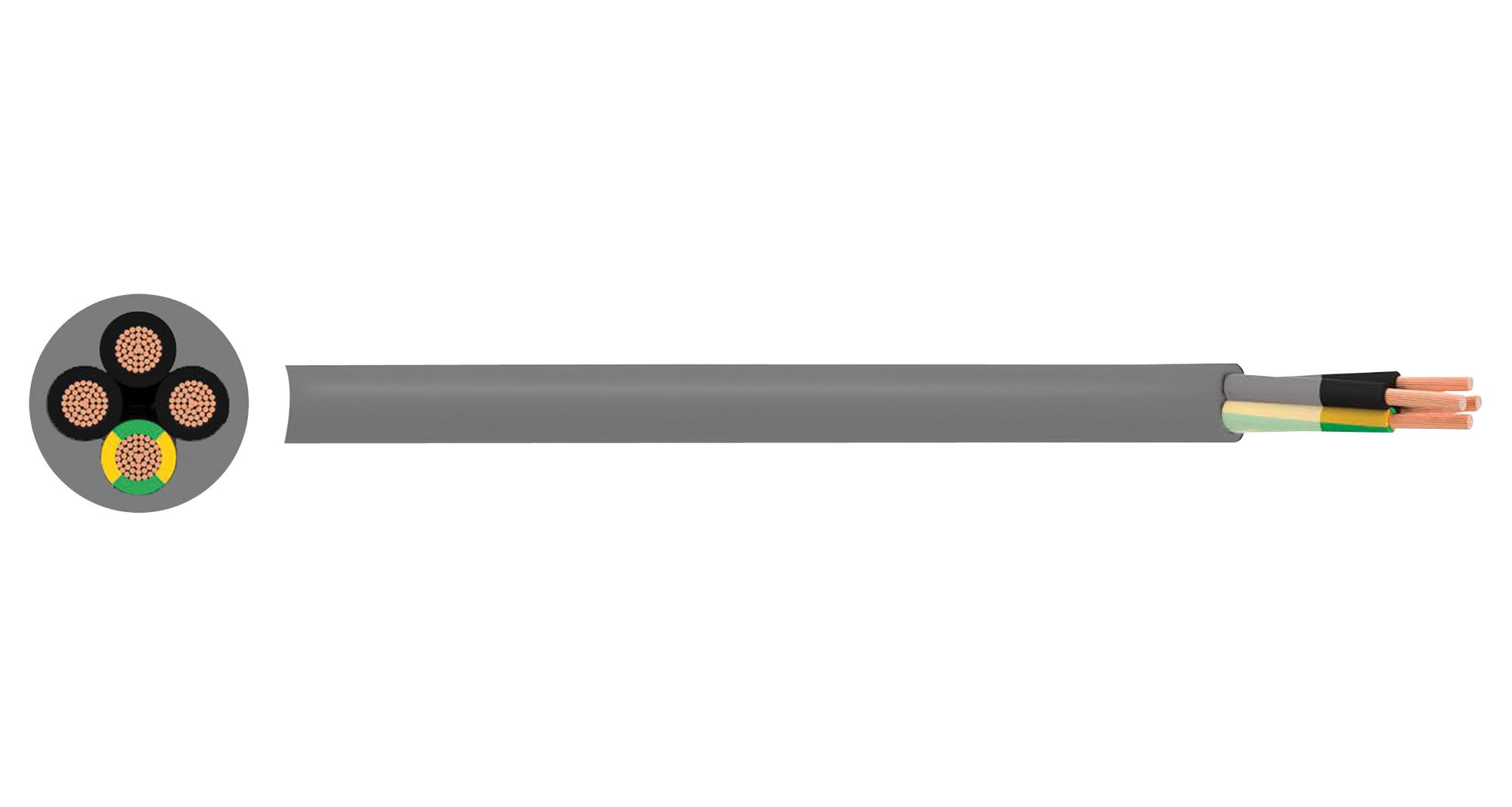

MULTICOMP PRO PP001525 Polyurethane Multicore Cable
Flexible polyurethane multicore cable designed for versatile wiring needs in machinery and production lines. It offers excellent flexibility, resistance to chemicals, oils, abrasion, and mechanical stress, suitable for dry, wet, and outdoor fixed installations. Rated for 300/500V, with a test voltage of 2.4kV, and operational temperature range from -40°C to +80°C (fixed) and -5°C to +70°C (flexed). Its construction includes class 5 copper conductors, PVC insulation, non-woven polyester separator, and PUR sheath, with various core and size options ensuring reliable performance in demanding environments.
MULTICOMP PRO PP001525 Polyurethane Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2.4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 10 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Sheath: PUR (Polyurethane)
- Core Identification: Black with white number, Green/Yellow for earth
- Dimensions: Nominal cross-sectional area from 0.75 mm² to 25 mm², various core counts
- Weight: Ranges from 53 kg/km to 430 kg/km depending on size
- Standards: VDE 0295, VDE 0293 series, UL approvals
- RoHS Compliant, UK Laboratory Tested for quality assurance
Buy the Multicomp Series Flexible Polyurethane Cable: PP001525
Purchase the Polyurethane Multicore Cable online today for reliable performance in machinery and outdoor applications. Featuring excellent flexibility, chemical resistance, and compliance with RoHS and UL standards, this cable is ideal for demanding industrial environments. With various core options and robust construction, it ensures safety, durability, and efficient operation. Easy to order in different lengths and sizes, it is the perfect choice for production lines, tooling machinery, and flexible installations. Service your needs with confidence by buying online now.
Get Multicomp Series PP001525 flexible polyurethane multicore cable today—designed for durability and versatile performance in industrial environments.
