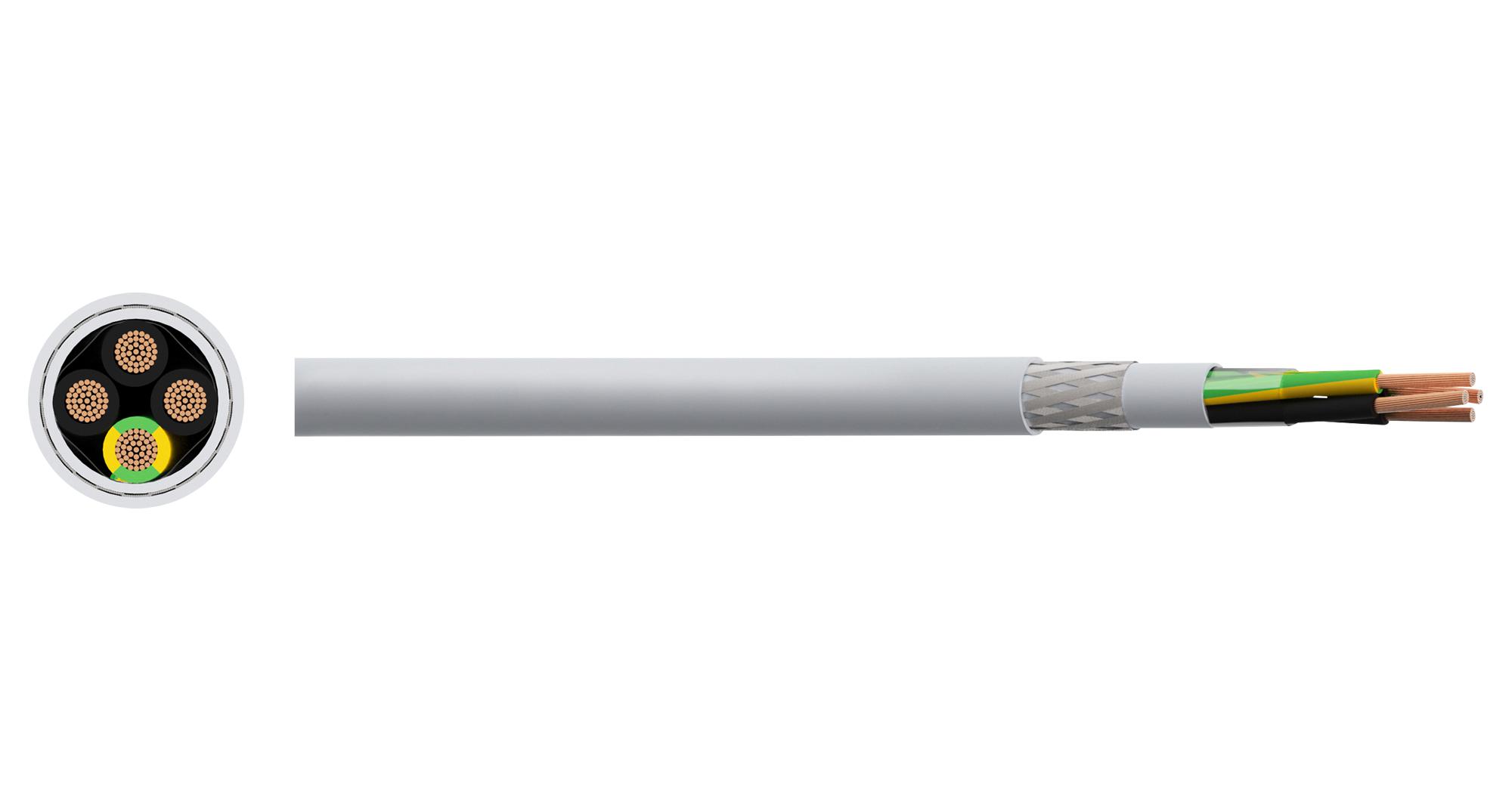

MULTICOMP-PRO PP001575 Flexible Control Cable
This flexible screened control cable is suitable for instrumentation, machinery, and flexible applications in dry, moist, and wet environments. Compliant with RoHS and low voltage directives, it features copper conductors, PVC insulation and sheath, polyester tape separator, and tinned copper wire braid screen. It supports voltage ratings up to 500V, operates within -40°C to +80°C (fixed) and -5°C to +70°C (flexed), ensuring durability and safety in industrial control and instrumentation systems. Ideal for flexible wiring without tensile load, not for outdoor or underground use.
MULTICOMP-PRO PP001575 Flexible Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed: -40°C to +80°C, Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter, Flexed: 12.5 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Separator: PET (Polyester Tape)
- Screen: Tinned Copper Wire Braid
- Sheath: PVC (Polyvinyl Chloride)
- Core Identification: Black with white number; Green/Yellow for 3 cores
- Dimensions: Nominal cross-section from 0.5 mm² to 25 mm²; overall diameter varies by specification
- Standards: VDE 0207-363-3, IEC 60332-1-2 flame retardant, RoHS compliant
- Tested by UKAS accredited laboratory for flame, resistance, tensile, elongation, and dimensional standards
Buy the Multicore Control Cable – Reliable Flexible Screened Control for Industrial Applications
Order Multicore Control Cable online today for superior quality and reliability in industrial control applications. Designed for flexible use in dry, moist, and wet environments, this cable features copper conductors, PVC insulation, and a copper braid screen to ensure durability and safety. Compliant with RoHS and IEC standards, it supports voltage ratings up to 500V and operates within -40°C to +80°C (fixed) or -5°C to +70°C (flexed). Whether for instrumentation, machinery, or control equipment, buy online now for fast delivery and competitive pricing.
Buy Multicore Control Cable now and experience unmatched flexibility, safety, and durability for your industrial wiring needs.
