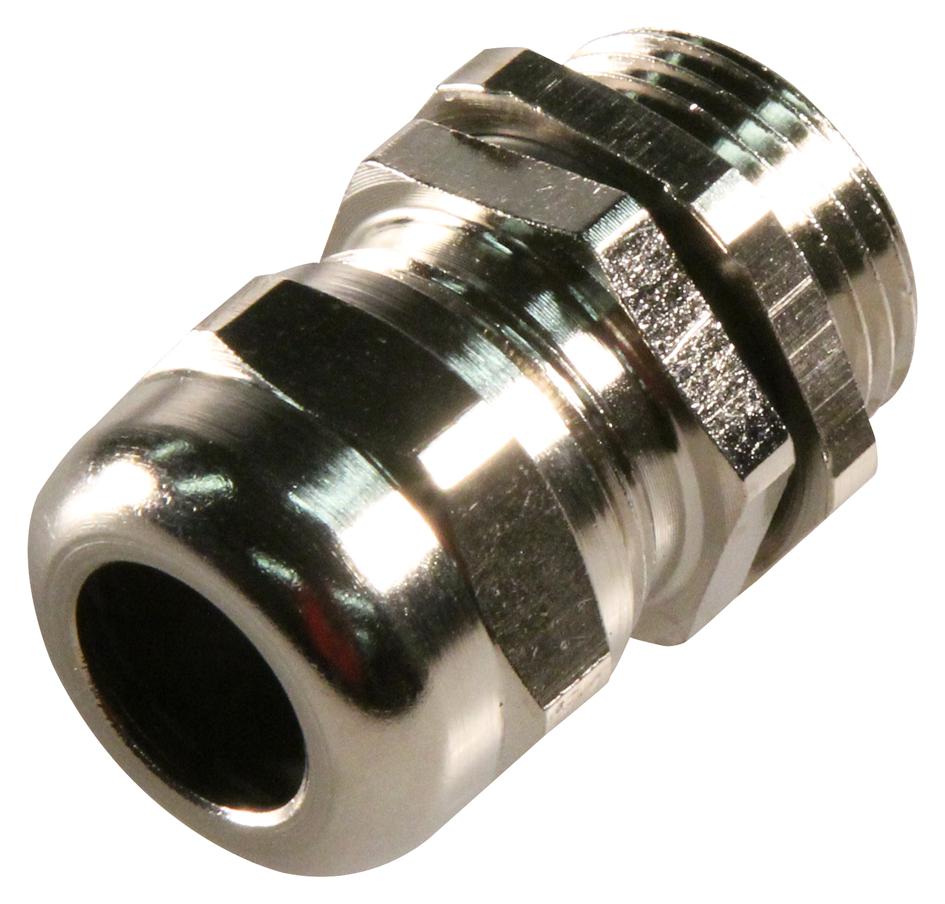

MULTICOMP PRO PP001712 Cable Gland
The EMC Metal Cable Glands - R Type are robust, nickel-plated brass components designed for secure cable management in demanding industrial environments. These glands feature an IP68 protection rating, ensuring effective sealing against dust and water ingress. Suitable for cable diameters from 3 to 14 mm, they operate efficiently within a temperature range of -40°C to 100°C, with instantaneous heat resistance up to 120°C. Equipped with hermetic seals, O-rings, and sealing nuts, they provide reliable performance in diverse electrical and control applications.
MULTICOMP PRO PP001712 Cable Gland Specifications:
- Material: Nickel-plated brass
- Hermetic Seal: Yes
- O-Ring: NBR, EPDM
- Protection Degree: IP68
- Working Temperature: -40°C to 100°C
- Instantaneous Heat Resistance: Up to 120°C
- Thread Sizes: PG7, PG9, PG11, PG13.5, PG16
- Cable Diameter Range: 3-14 mm
- Dimensions: Vary by part number, standard threading and diameter options
- Lock Nut, Body, Shield Ring, Seal: Included for secure connection
Buy the Multicomp PG7 – Reliable Cable Glands for Industrial Applications
Enhance your electrical installations with Multicomp's Nickel-plated brass cable glands designed for tough industrial conditions. Featuring IP68 protection, these glands ensure a secure and waterproof seal for cables ranging from 3 to 14 mm diameter. Suitable for temperature ranges from -40°C to 100°C with high heat resistance, they are perfect for automation, control panels, and electrical enclosures. Easy to install, these glands guarantee safe and reliable cable management with robust sealing components for demanding environments.
Buy Multicomp PG7 cable gland now and ensure durable, waterproof cable management in your industrial projects with proven reliability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001712?
You can click on the BUY or RFQ button to purchase PP001712 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001712?
You can download the PP001712 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001712?
MULTICOMP PRO
