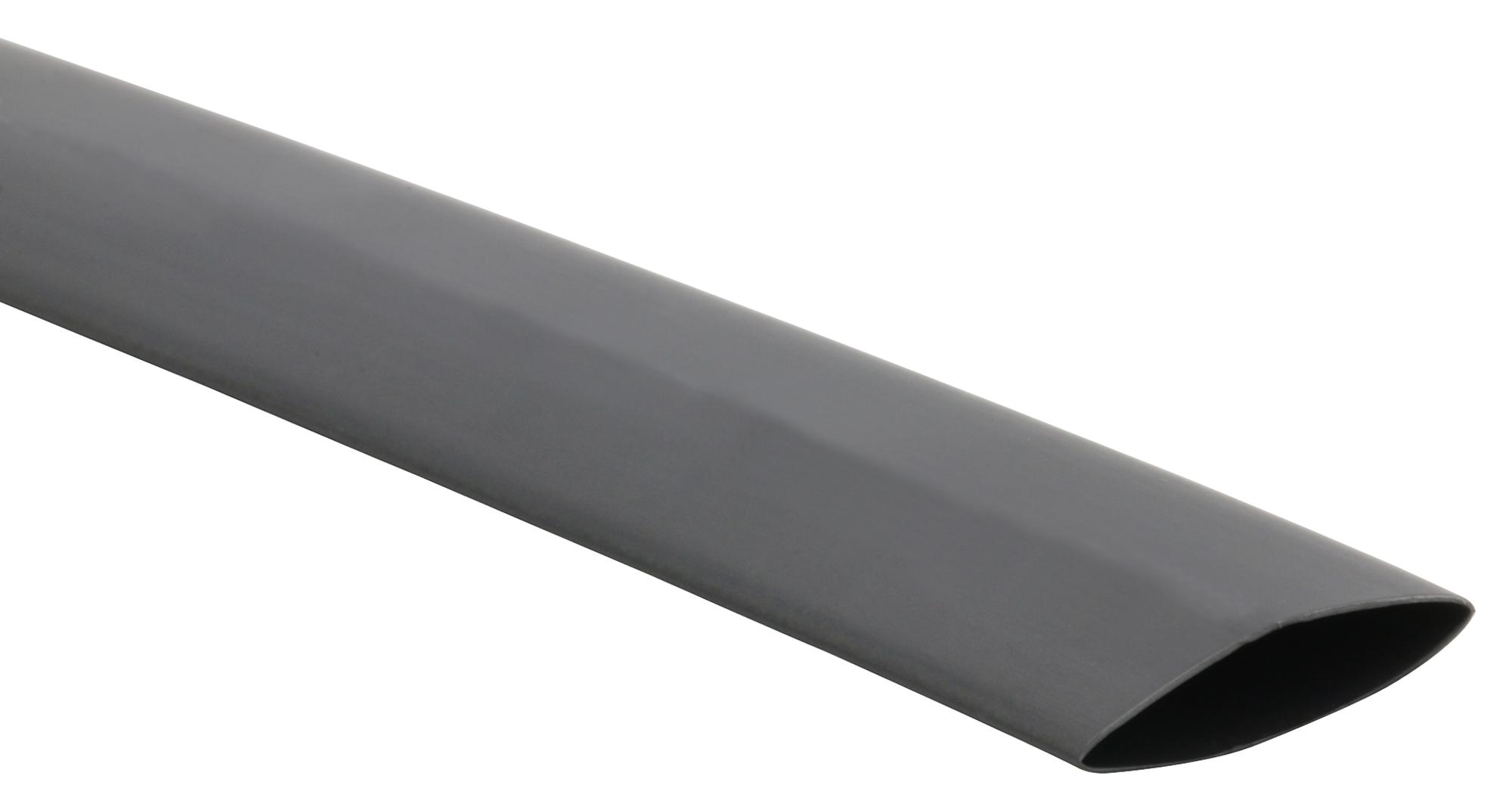

MULTICOMP PRO PP001945 Heat Shrink Tubing
This heat shrink tubing by DrO-POWER offers an environment-friendly, flexible, and highly flame-retardant polyolefin solution with a 2:1 shrink ratio. Designed for electrical insulation, it withstands temperatures from -55°C to +135°C, with a minimum full recovery temperature of 120°C, providing excellent resilience and electrical protection for inline components, terminals, and splices. Suitable for both commercial and military applications, it resists common fluids and solvents, meets UL224 VW-1 flammability standards, complies with RoHS, and is ideal for bundling wires or color-coding in complex wiring harnesses.
MULTICOMP PRO PP001945 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Min. Shrink Temperature: 70°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Colors: Black and Natural
- Resistance: Resistant to common fluids and solvents
- Flammability: UL224 VW-1
- RoHS Compliant
- Tensile Strength: 210.4MPa
- Elongation: 2200%
- Dielectric Strength: 215kV/mm
- Volume Resistivity: 21104 Q-cm
- UL Approval: UL224, 125°C 600V
- Material: Polyolefin
- Application: Electrical insulation, wire bundling, color coding
- Temperature Rating: -55°C to +135°C
- Width: 1.5mm to 18mm
- Wall Thickness: 0.36mm to 0.7mm
- Part Number Examples: PP001945 (for 3.5mm diameter, natural)
- Length: Varies from 10m to 100m depending on model
Buy the Buy DrO-POWER Heat Shrink Tubing Part Number PP001945 Online
Purchase DrO-POWER heat shrink tubing PP001945 online for reliable electrical insulation and robust protection in demanding environments. Ideal for bundling wires, color-coding, and isolating inline components, this polyolefin-based tubing offers excellent flame retardancy, chemical resistance, and durability. It shrinks to half its original size with a 2:1 ratio, ensuring a snug fit around wires and components. Suitable for both commercial and military purposes, it meets UL and RoHS standards, providing long-lasting performance and safety for your electrical projects.
Get DrO-POWER heat shrink tubing PP001945 today—designed for flexible electrical insulation and high-temperature resilience.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001945?
You can click on the BUY or RFQ button to purchase PP001945 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001945?
You can download the PP001945 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001945?
MULTICOMP PRO
