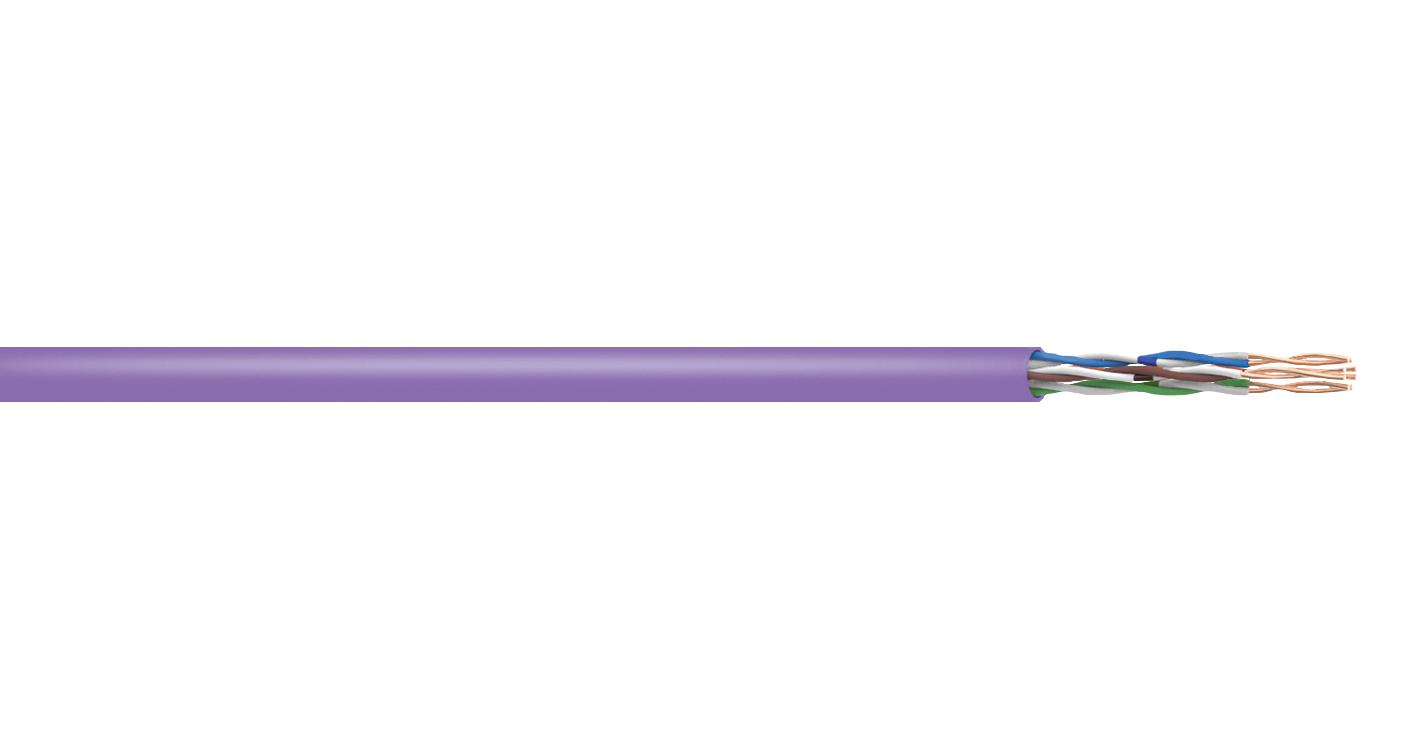

MULTICOMP PRO PP002141 Data Network Cable
High-performance unscreened Cat 6 U/UTP cable with LSZH sheath, designed for data transmission supporting speeds up to 1 Gbps. Constructed with solid copper conductors and HDPE insulation, it meets ISO/IEC 11801 and TIA568C-2 standards. The violet sheath simplifies identification, while the flexible design allows for easy installation with recommended minimum bending radius. Suitable for Ethernet networks, it features a frequency range up to 250MHz, low attenuation, and resistance characteristics optimized for reliable data transfer in professional environments, ensuring safety and compliance in both commercial and industrial settings.
MULTICOMP PRO PP002141 Data Network Cable Specifications:
- Construction: Solid copper conductor (Class 1), HDPE insulation, LSZH sheath
- Number of Pairs: 4
- Nominal Diameter: 1.035 mm
- Overall Diameter: 6.1 mm
- Sheath Color: Violet
- Temperature Rating: Fixed: -20°C to +50°C
- Minimum Bending Radius: Fixed: 5 x overall diameter, Flexed: 9 x overall diameter
- Frequency Range: Up to 250 MHz
- Attenuation at 100MHz: 19.8 dB/100m
- Impedance: 100+15 Ohms maximum
- Resistance of conductor at 20°C: 95 Ohms
- Standards: ISO/IEC 11801, TIA568C-2, BS EN/IEC 60332-1
- Cable Length Options: 305m reels or per meter
Buy the Multicomp PP002141 U+2013 Reliable Data Cable for Industrial Applications
Order the Multicomp PP002141 high-performance Cat 6 U/UTP network cable online today. This cable features low attenuation and high standards compliance, ideal for professional network setups. Its durable LSZH sheath ensures fire safety, making it suitable for industrial and commercial environments. With 4 twisted pairs of 23 AWG copper conductors, it supports Gigabit Ethernet speeds up to 1 Gbps. Easy to install, flexible, and available in convenient 305-meter reels or per meter, buy now to ensure reliable connectivity and network performance.
Buy Multicomp PP002141 now and experience unmatched reliability and performance with high-speed data transmission capabilities and industry-standard compliance.
