MULTICOMP PRO PP002143 Screened Cat 6 Network Cable

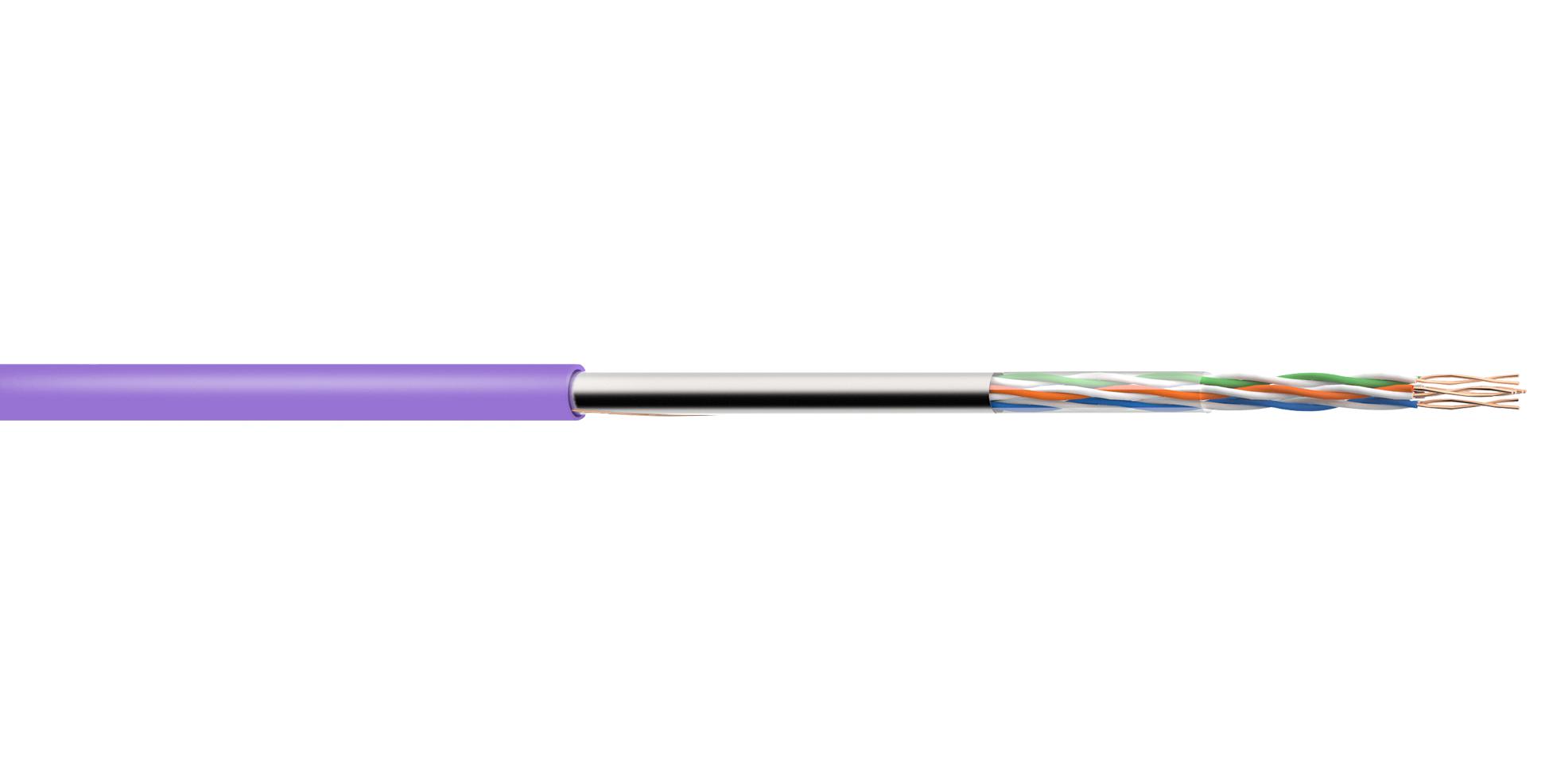

This screened Cat 6 F/UTP LSZH cable supports Gigabit Ethernet with a frequency range up to 250MHz. Featuring solid bare copper conductors, HDPE insulation, and a violet LSZH sheath, it ensures high performance and flame retardancy. The cable offers a minimum bending radius of 8x diameter, making it suited for various networking applications. It complies with ISO/IEC 11801, TIA 568-C.2, and YD/T1019 standards, making it ideal for reliable data transmission in professional environments. Available on reels of 305 meters or per meter, it guarantees consistent quality and durability for installation or upgrade projects.
MULTICOMP PRO PP002143 Screened Cat 6 Network Cable Specifications:
- Frequency Range: up to 250MHz
- Conductor: Solid bare copper, 23 AWG
- Insulation: HDPE
- Screen: Mylar + Aluminium foil/Mylar
- Outer Sheath: LSZH, Violet color
- Minimum Bending Radius: 8 x overall diameter
- Nominal Diameter (conductor): 0.565 mm
- Nominal overall diameter: 7.4 mm
- Shielding: Mylar + Aluminium foil + Drain Wire: Tinned copper
- Construction Standards: ISO/IEC 11801, TIA 568-C.2, YD/T1019
- Cable Length: 305 meters or per meter
- Tensile Strength: 210 MPa before aging, 2100% elongation
- Impedance: 100 ±15 Ω
- Delay: 566 ns at 250 MHz
- Capacitance: 45 pF/100m
- Maximum Resistance: 9.5 Ω/100m
- Maximum DC Resistance: 330 Ω/100m
- Color: Violet sheath
- Applications: High-speed network connectivity, structured cabling, Ethernet wiring
Buy the Buy Multicomp Screened Cat 6 F/UTP LSZH Cable Part Number PP002143 Online
Purchase the Multicomp Screened Cat 6 F/UTP LSZH cable online today and enhance your networking infrastructure with a high-quality, durable, flame-retardant solution. Designed for Gigabit Ethernet with support for up to 250MHz frequency, this cable ensures fast and reliable data transmission. Its solid copper conductors and LSZH sheath make it safe for fire-prone environments. Available on 305-meter reels or per meter, it provides excellent flexibility for installation, expansion, or upgrades. Order now for dependable performance in professional networking projects.
Buy Multicomp PP002143 now and experience reliable high-speed network performance with flame-retardant LSZH insulation.
