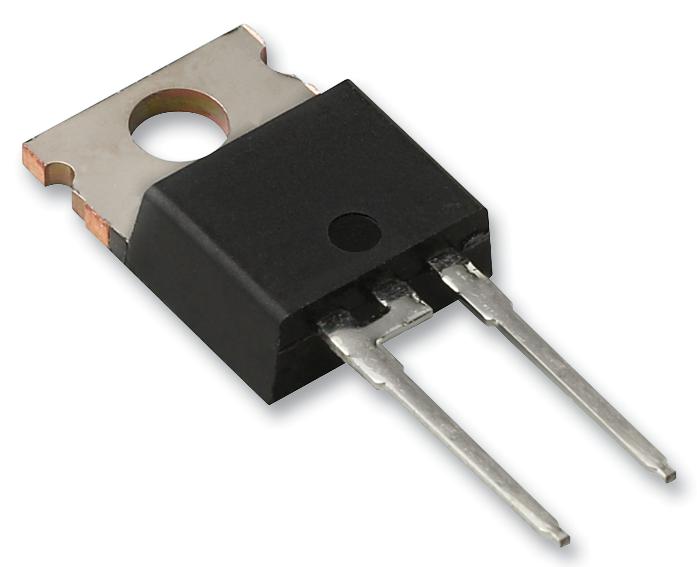

MULTICOMP PRO MBR1650 Schottky Barrier Rectifier
The MBR1650 Schottky Barrier Rectifier features a plastic TO-220AC package with UL 94V-0 flammability classification. It has a maximum reverse voltage of 50V and an RMS voltage of 35V. Designed for high-frequency switching power supplies, DC/DC converters, and polarity protection, it offers low forward voltage drop of 0.75V at 16A, low reverse leakage current of 0.1mA, and surge current capacity of 150A. Its high surge and surge current capability, coupled with robust mechanical and thermal ratings, make it ideal for efficient rectification in demanding electronic applications.
MULTICOMP PRO MBR1650 Schottky Barrier Rectifier Specifications:
- Case: TO-220AC molded plastic with UL 94V-0 flammability rating
- Polarity: As marked on the body
- Weight: 21.9 grams
- Reverse Voltage: 40 to 150 Volts
- Forward Current: 16 Amperes
- Max. Recurrent Peak Reverse Voltage VRRM: 50V
- Max. RMS Voltage Vrms: 35V
- Max. DC Blocking Voltage Voc: 50V
- Max. Forward Voltage at 16A: 0.75V
- Max. Reverse Current at 25°C: 0.1mA
- Peak Forward Surge Current: 150A (8.3ms single half-sine wave)
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions (Inches): Length 1.35, Width 0.94, Height 0.73; (Millimetres): Length 34.3, Width 24.0, Height 18.5
- Thermal Resistance Junction to Case: 2°C/W
- Mounting Position: Any
Buy the Multicomp Series Schottky Rectifier: MBR1650
Enhance your power management with the Multicomp Series MBR1650 Schottky Barrier Rectifier. Designed for high-frequency switching, it features a 50V max reverse voltage, a low forward voltage drop of 0.75V at 16A, and a surge current capacity of 150A. Its robust TO-220AC package ensures durability, while low reverse leakage current increases efficiency. Perfect for use in switching power supplies, DC/DC converters, and polarity protection, it provides reliable, high-speed rectification ideal for demanding electronic circuits. Purchase online today for dependable performance in your projects.
Get Multicomp Series MBR1650 today—built for high efficiency, low voltage drop, and reliable performance in power rectification applications.
