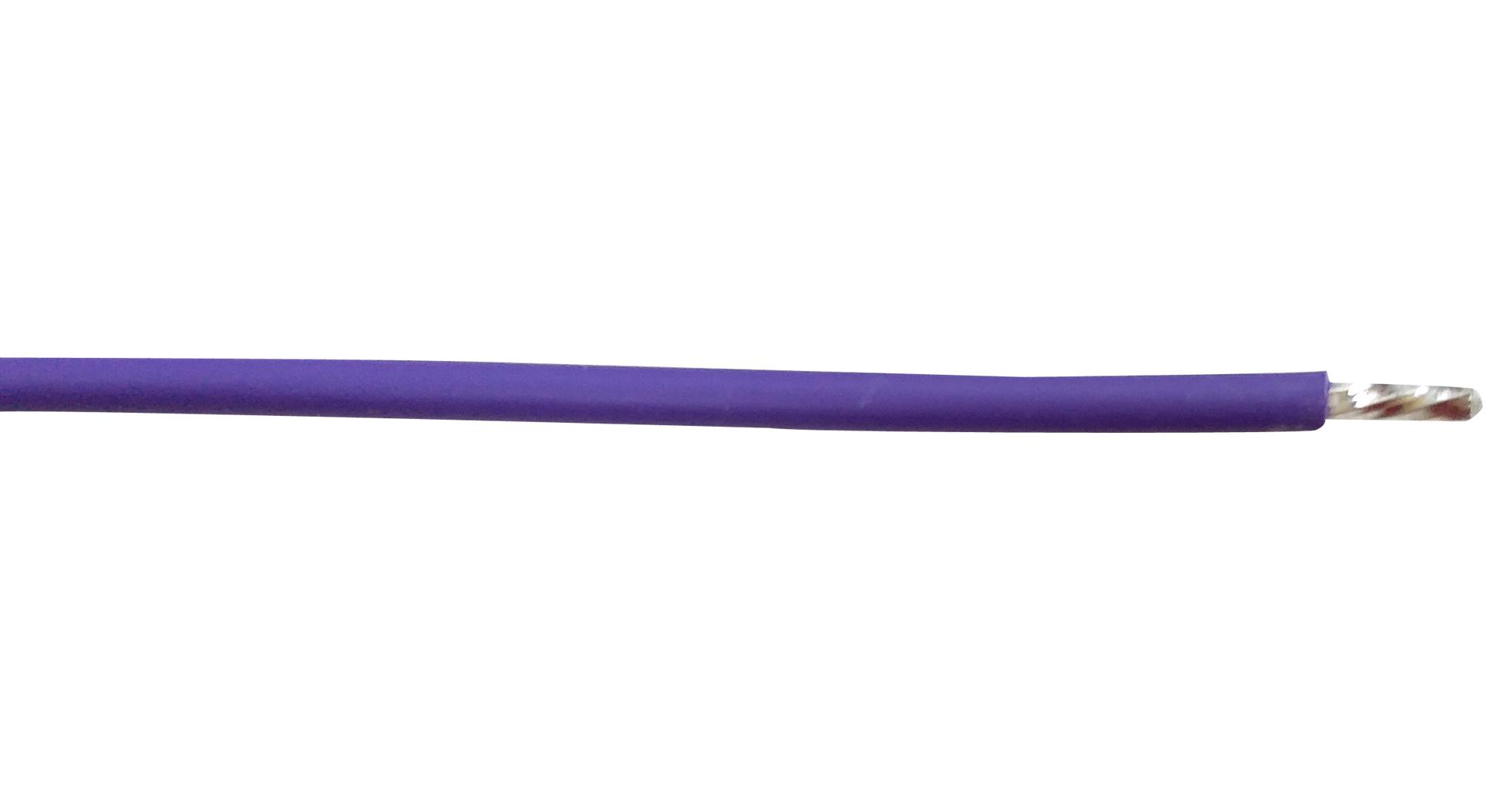

MULTICOMP-PRO PP002325 Hook-Up Wire
UL1007 Style Stranded Hook-Up Wire designed for compact electrical connections, suitable for general wiring applications. Made with stranded tinned copper conductors and insulated with PVC for durability and flexibility. Rated at 300V and up to 280°C, it complies with UL recognition standards, ensuring safety and reliability in various environments. Available in multiple colors and sizes, this wire is ideal for mounting, wiring harnesses, and internal electronic connections. Its lightweight, flexible design simplifies installation and maintenance in industrial, commercial, and household electronics.
MULTICOMP-PRO PP002325 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or per metre
- AWG Sizes: 16, 18, 20, 22, 24, 26, 28, 30
- Strands per AWG: 65/0.16, 34/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.16, 7/0.127, 7/0.10
- Diameter (mm): Ranges from 0.31 to 1.49 depending on size
- Resistance: Varies with AWG, e.g., 20°C Resistance values range from 13.32 to 319.26 Q/kM
- Color: Multiple colors including Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Purple, Grey
- Compliance: UL Recognized, RoHS compliant
Buy the Elementt4 Series UL1007 Hook-Up Wire: PP002325
Discover the premium UL1007 stranded hook-up wire available online, perfect for electronic wiring, industrial installations, and project applications. Crafted with tinned copper conductors and PVC insulation, this wire offers excellent flexibility, durability, and safety for a wide range of uses. Rated at 300V and up to 280°C, it ensures reliable performance in demanding environments. Whether you need a reel or per metre length, purchase now to enjoy fast shipping, competitive pricing, and the quality assurance of trusted suppliers for your electrical needs.
Get Elementt4 UL1007 Hook-Up Wire PP002325 today—designed for reliable electrical connections and superior insulation performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002325?
You can click on the BUY or RFQ button to purchase PP002325 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002325?
You can download the PP002325 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002325?
MULTICOMP-PRO
