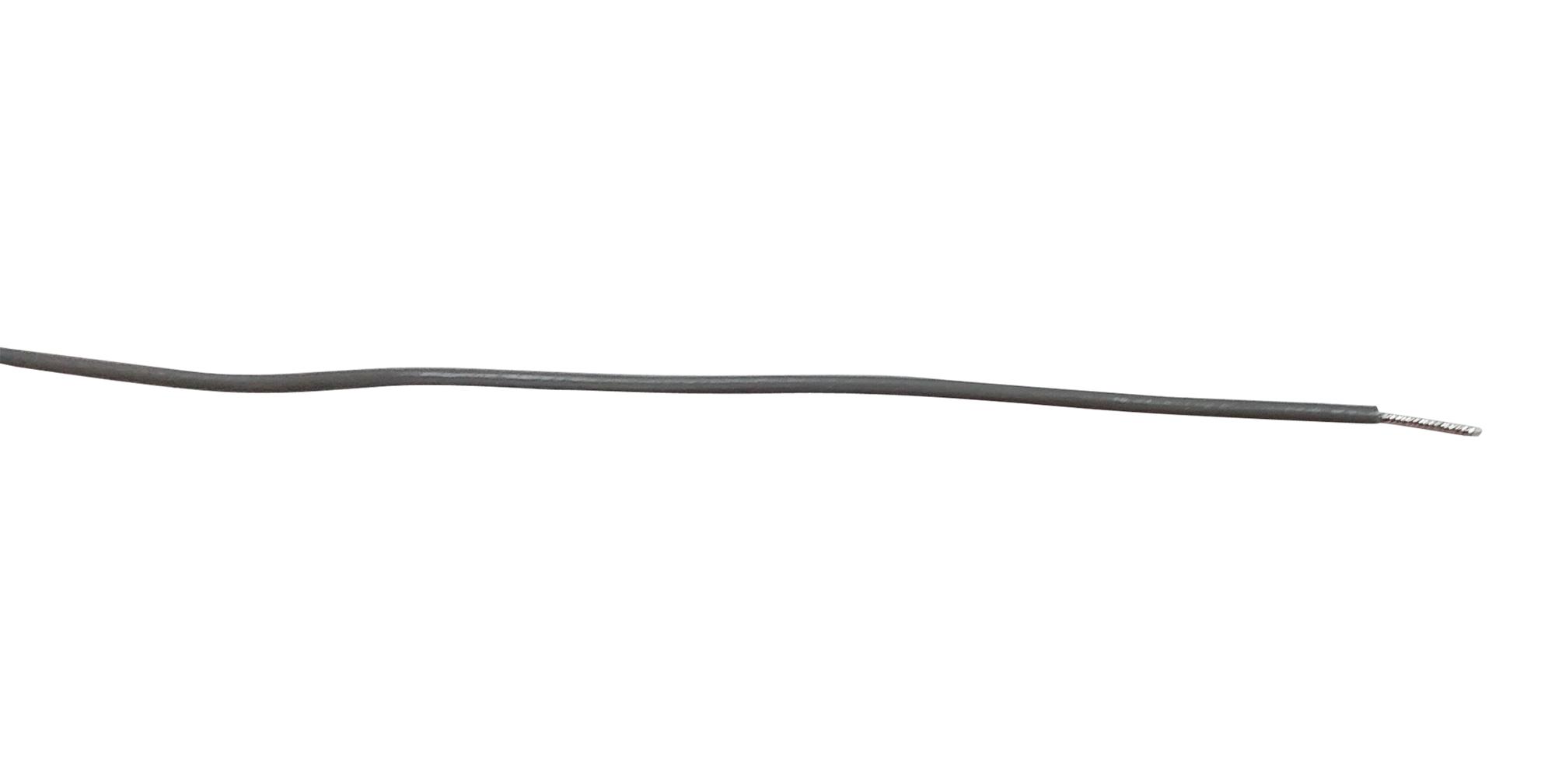

MULTICOMP-PRO PP002389 Hook-Up Wire
UL1569 Style Stranded Hook-Up Wire designed for reliable electrical connections in various applications. This flexible wire features stranded tinned copper conductors and durable PVC insulation, rated for 105°C and 300V. Available in multiple colors and sizes, including 16 to 30 AWG, it is suitable for internal wiring, control panels, and electronic devices. The wire’s construction ensures excellent conductivity and flexibility, meeting UL recognition standards for safety and performance. Suitable for professional electrical and electronic installations requiring high-quality stranded hook-up wire.
MULTICOMP-PRO PP002389 Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Available Lengths: 305 meters reel or per meter
- AWG Sizes: 16, 18, 20, 22, 24, 26, 28, 30
- Conductor Strands: 65/0.16, 34/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.127, 7/0.10
- Conductor Diameter Range: 0.49 mm to 1.49 mm
- Insulation Diameter Range: 0.31 mm to 2.0 mm
- Temperature Rating: 105°C
- Voltage Rating: 300V
- UL Recognized: File no. E352035
- Compliance: RoHS, UL, CSA
- Colors Available: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Grey
- Wire Resistance varies by size, e.g., 59.4 Q/kM for 22 AWG, 150 Q/kM for 26 AWG
Buy the Farnell Series UL1569 Stranded Hook-Up Wire: PP002389
Experience the high-quality performance of Farnell UL1569 stranded hook-up wire, engineered with tinned copper conductors and durable PVC insulation. Rated for 105°C and 300V, this versatile wire is suitable for a wide range of electrical and electronics applications, including control panels and internal wiring. Available in multiple sizes from 16 to 30 AWG and various colors, it ensures excellent conductivity, flexibility, and safety. Purchase online today to benefit from reliable, UL-recognized wiring solutions that meet industry standards.
Get Farnell UL1569 stranded hook-up wiring today—designed for safety, flexibility, and durable electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002389?
You can click on the BUY or RFQ button to purchase PP002389 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002389?
You can download the PP002389 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002389?
MULTICOMP-PRO
