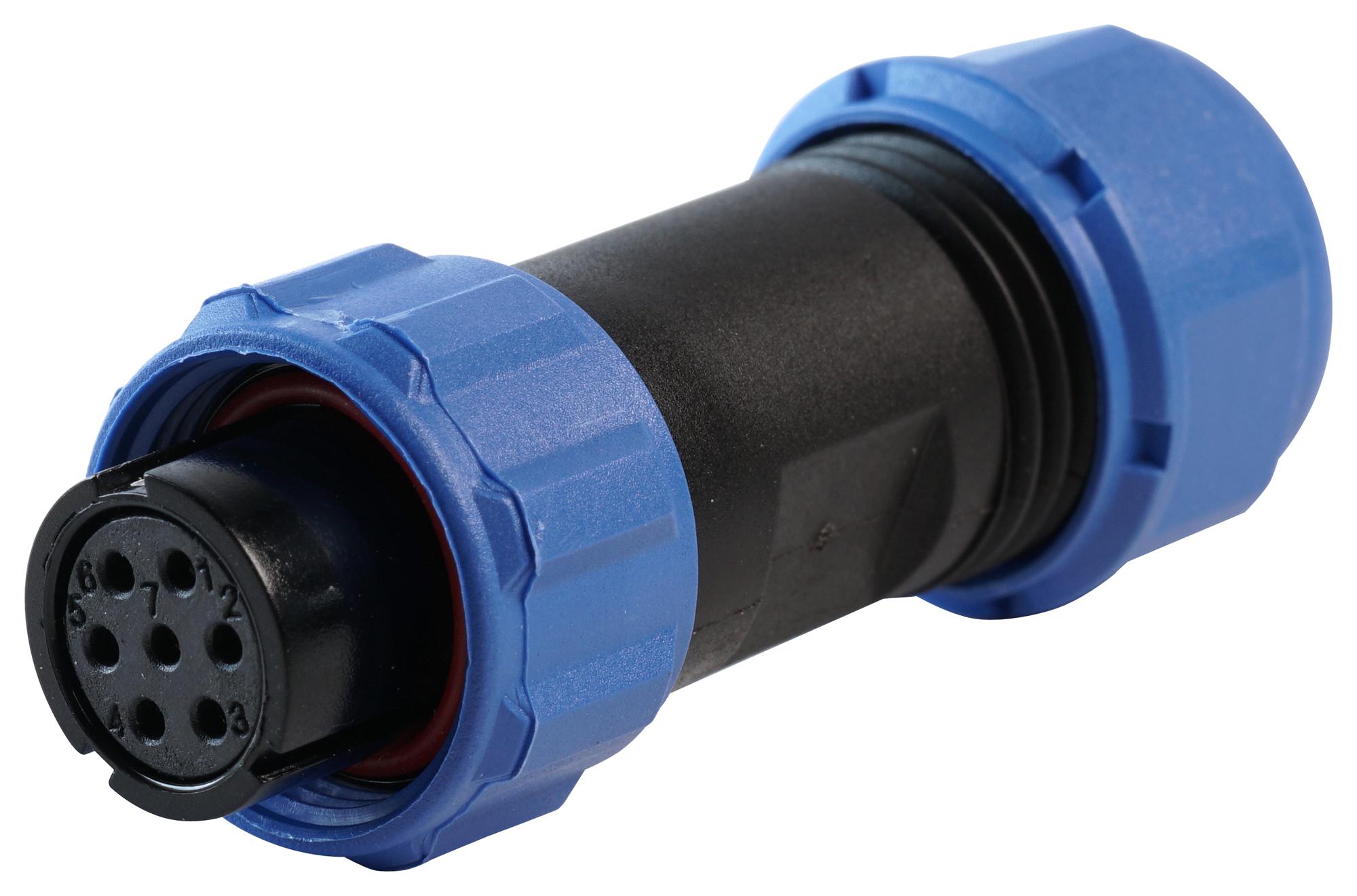

MULTICOMP PRO MP002515 IP68 Waterproof Connector
The MP-T13 IP68 series connectors offer rugged and reliable connections with threaded coupling and waterproof sealing, suitable for industrial automation, outdoor applications, and electronic devices. Available in cable mount, inline, and panel mount configurations, they feature a compact design, solder termination, and compatibility with a 13mm panel cut-out. With IP68 protection, they withstand harsh environments, making them ideal for process control, security, and medical equipment. The connectors support 2, 3, 4, 5, and 7 pole configurations, including an optional IP68 dust cap for additional protection.
MULTICOMP PRO MP002515 IP68 Waterproof Connector Specifications:
- Shell Material: Polycarbonate (PC)
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameter: 1.6 mm (2 pole), 1 mm (3 and 4 pole), 1.75 mm (5 and 7 pole)
- Rated Current: 13 A (2 pole), 5 A (3-7 pole)
- Rated Voltage: 250 V (2 and 3 pole), 200 V (4 pole), 180 V (5 pole), 125 V (7 pole)
- Test Voltage: 1500 V (1 min)
- Cable Outer Diameter Range: 4mm to 8mm
- Coupling: Threaded
- Mating Cycle: Approx. 500 times
- Operating Temperature: -40°C to +85°C
Buy the Multicomp IP68 Connectors – Reliable Waterproof Connectors for Industrial Applications
Enhance your projects with the reliable waterproof connection of the IP68-rated connector series. Designed for industrial automation, outdoor use, and critical equipment, these connectors feature threaded coupling, solder termination, and robust construction. Available in multiple configurations including cable mount, inline, and panel mount options, they support 2, 3, 4, 5, and 7 pole setups. Protect your connections from dust and water ingress with an optional IP68 dust cap. Order online now for fast delivery and quality guaranteed performance in demanding environments.
Order your Multicomp Series MP002515 waterproof connector today and ensure your projects have dependable, corrosion-resistant connectivity in harsh environments.
