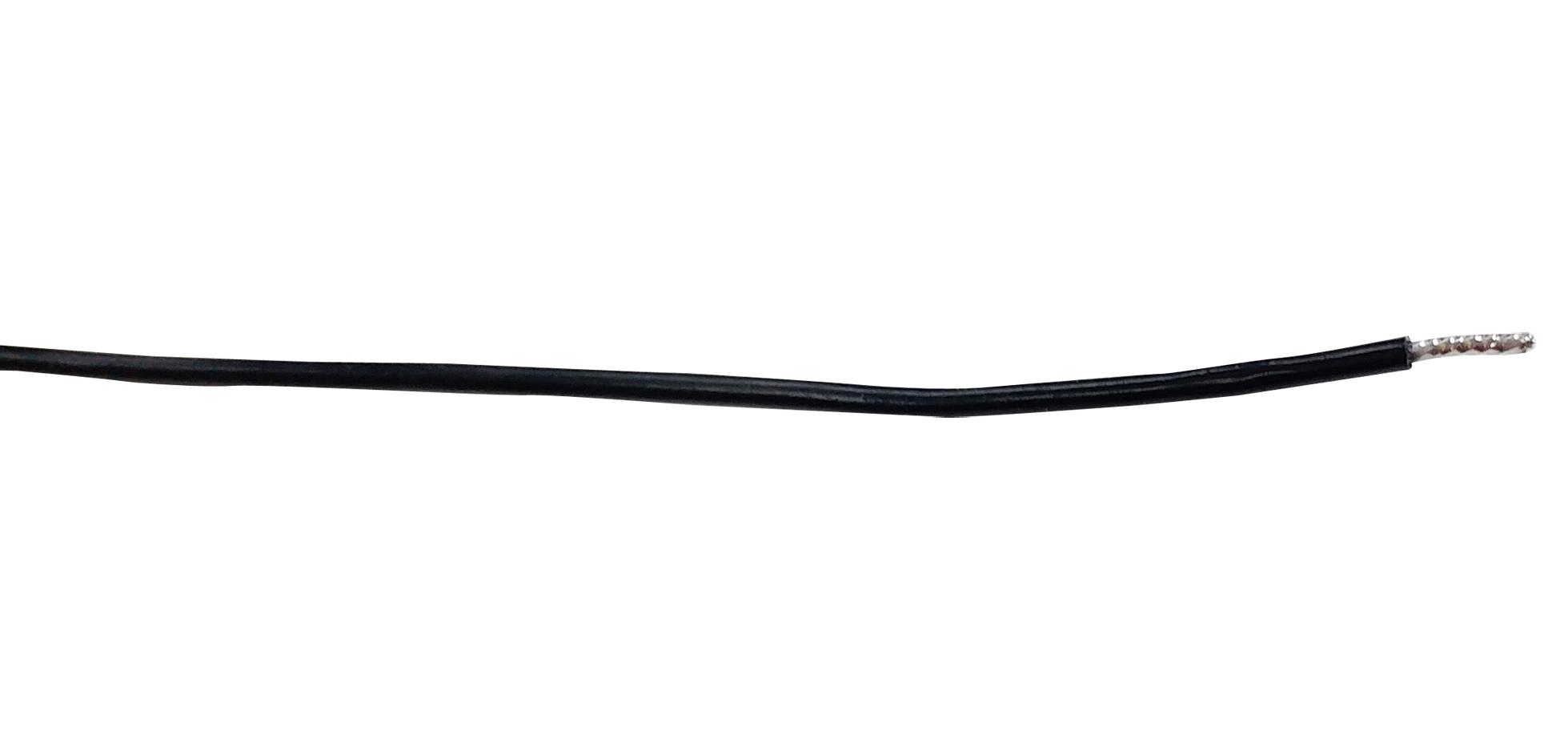

MULTICOMP-PRO PP002551 Hook-Up Wire
UL1569 style stranded hook-up wire designed for reliable electrical connections in control panels, instrumentation, and wiring projects. It features stranded tin-plated copper conductors with PVC insulation, rated for 105°C and 300V. Available in multiple gauges including 16, 18, 20, 22, 24, 26, 28, and 30 AWG, with color-coded insulation for easy identification. The cable is supplied in reels or per meter, ensuring flexibility for various installation needs. UL recognized for safety with UL file number E352035, suitable for industrial and electronic applications requiring durable, high-quality hook-up wiring.
MULTICOMP-PRO PP002551 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Cable Length: Available in 305m reel or per metre
- AWG Range: 16 to 30 AWG
- Number of Strands: 65/0.16 to 7/0.10
- Conductor Diameter: 0.49 mm to 1.49 mm depending on gauge
- Insulation Diameter: 0.95 mm to 2.0 mm depending on gauge
- Color-coded insulation: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Grey
- UL Recognized: UL file no. E352035
- Compliance: RoHS, CE
- Application: Control panels, instrumentation wiring, electronic assemblies
Buy the UL1569 Series Hook-Up Wire: PP002551
Purchase the UL1569 style stranded hook-up wire online today to benefit from premium quality wiring suitable for various control and instrumentation applications. This flexible cable features stranded tin-plated copper conductors with PVC insulation, rated for 105°C and 300V, meeting UL standards for safety. Available in multiple gauges, including 16, 18, 20, 22, 24, 26, 28, and 30 AWG, the wire comes in reels or per meter. Order now for fast delivery and reliable performance in your electrical projects.
Order your UL1569 Series Hook-Up Wire PP002551 today and ensure your electrical projects are wired with high-quality, durable, and UL recognized cable.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002551?
You can click on the BUY or RFQ button to purchase PP002551 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002551?
You can download the PP002551 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002551?
MULTICOMP-PRO
