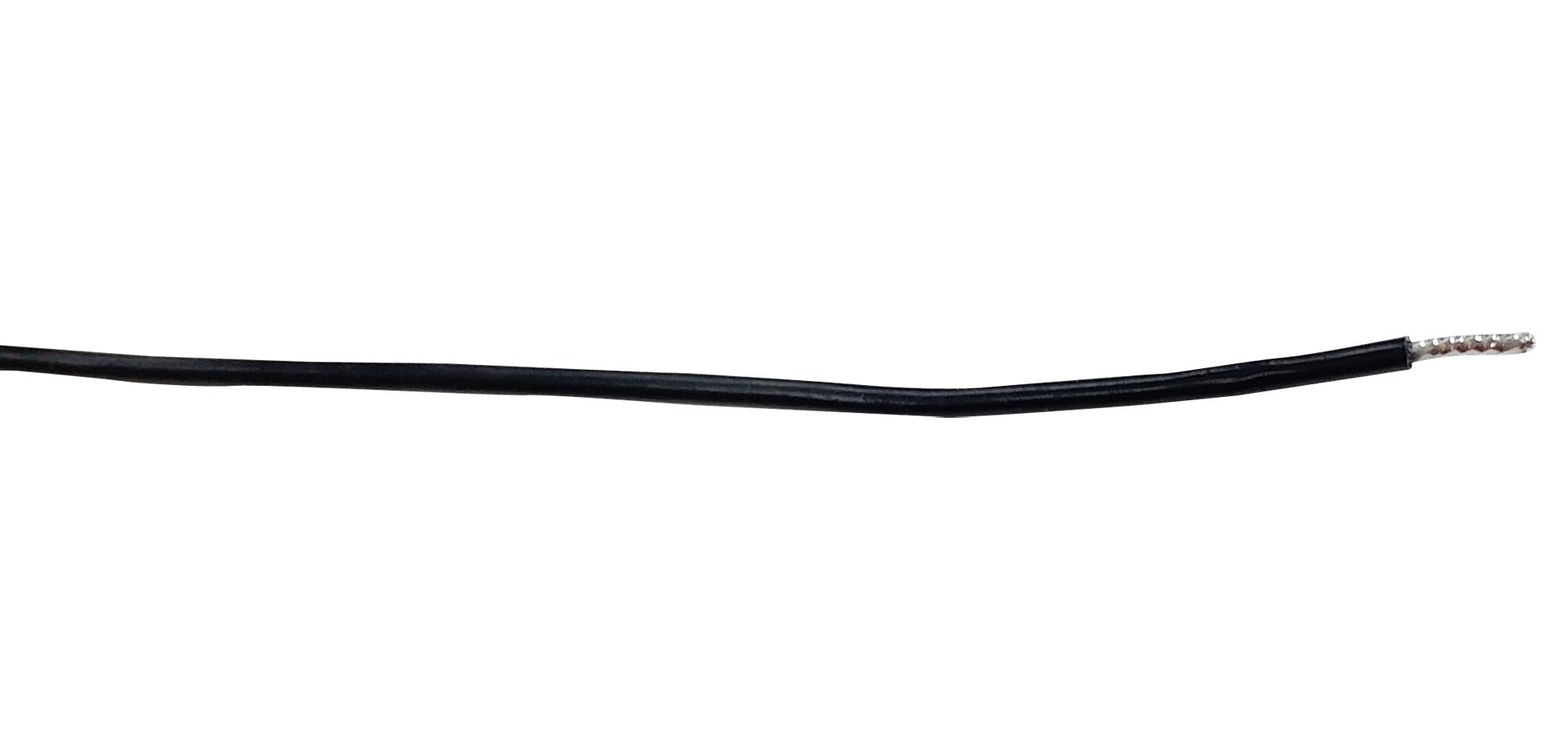

MULTICOMP PRO PP002575 Hook-Up Wire
This UL1061 style stranded hook-up wire by pro-POWER is suitable for industrial electrical applications, rated at 80°C and 300V, featuring stranded tinned copper conductors and SR PVC insulation. Available in multiple colors and sizes, it is ideal for wiring in control panels, machinery, and electronic devices. The wire is supplied on 305-meter reels or per meter, ensuring flexibility for various project needs. Its high-temperature rating of 280°C and UL recognition guarantee safety, durability, and compliance for dependable electrical connections.
MULTICOMP PRO PP002575 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: 305m reel or per metre
- Wire Sizes Available: 18, 20, 22, 24, 26 AWG
- Conductor Strands: 34/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.16 strands
- Conductor Diameter: 1.21 mm, 0.95 mm, 0.76 mm, 0.61 mm, 0.49 mm
- Insulation Diameter: 1.8 mm, 1.5 mm, 1.25 mm, 1.15 mm, 1 mm
- Resistance: 23.2, 36.7, 59.4, 94.2, 150 Q/kM respectively
- Temperature Rating: 280°C
- RoHS Compliant
- UL Recognized
Buy the Pro-Power PP002575 – Reliable Hook-Up Wire for Industrial Applications
Enhance your electrical wiring projects with this high-quality hook-up wire from pro-POWER. Rated for 80°C and 300V, it features stranded tinned copper conductors and SR PVC insulation, ensuring safety and durability. Available in various sizes and colors, it is suitable for control panels, electronic devices, and machinery wiring. The product is supplied on convenient reels or by the meter, providing flexibility for different installation requirements. Trust this UL-recognized wire for dependable, high-performance electrical connections in industrial environments.
Order your pro-POWER PP002575 hook-up wire today and ensure reliable and safe electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002575?
You can click on the BUY or RFQ button to purchase PP002575 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002575?
You can download the PP002575 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002575?
MULTICOMP PRO
