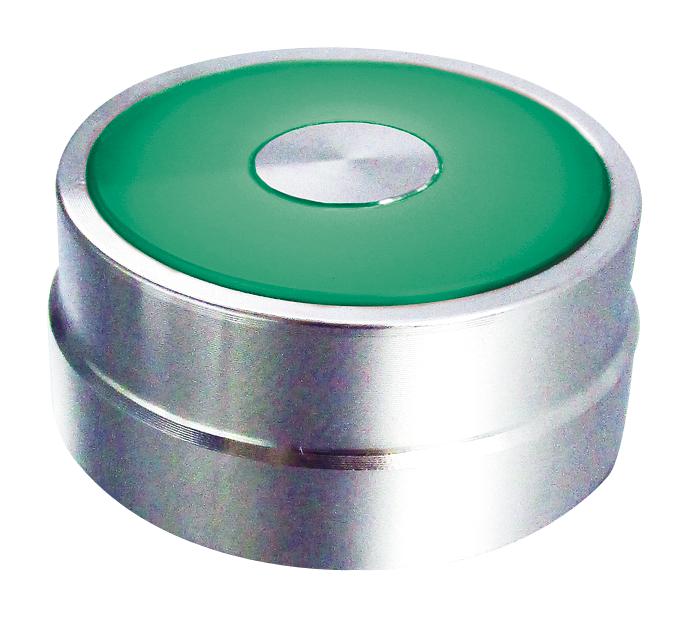

MULTICOMP PRO MC010957 Vandal Resistant Switch
This flush illuminated vandal resistant switch features a metal bezel-ring, is suitable for mounting holes of 22mm and 30mm, and offers high durability with a dielectric strength of 2000V AC/min. It has green, red, or blue LEDs powered at 12V AC/DC, with a degree of protection rated IP65. The switch handles up to 600V rated voltage and 210A rated current, suitable for industrial control panels. It provides mechanical and electrical life of 1,000,000 and 100,000 cycles respectively, and withstands vibration and shock to ensure long-term reliable operation.
MULTICOMP PRO MC010957 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 100 m/s² (Operating), 1,000 m/s² (Damage limits)
- Mechanical Life: 1,000,000 (Momentary), 100,000 (Maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy MultiComp Vandal Resistant Switch Part Number MC010957 Online
Enhance your control panel with this high-quality vandal resistant switch featuring LED indicators and IP65 protection. Easy to install in 22mm or 30mm mounting holes, it offers reliable operation with a long mechanical and electrical life. Suitable for demanding industrial environments, the switch supports voltages up to 600V and currents of 210A. Its durable aluminium finish withstands harsh conditions, while the LED status indicators provide clear visual feedback, making it ideal for safety and automation applications.
Buy MultiComp MC010957 now and enjoy high durability with IP65 protection and LED indicators suitable for industrial control panels.
