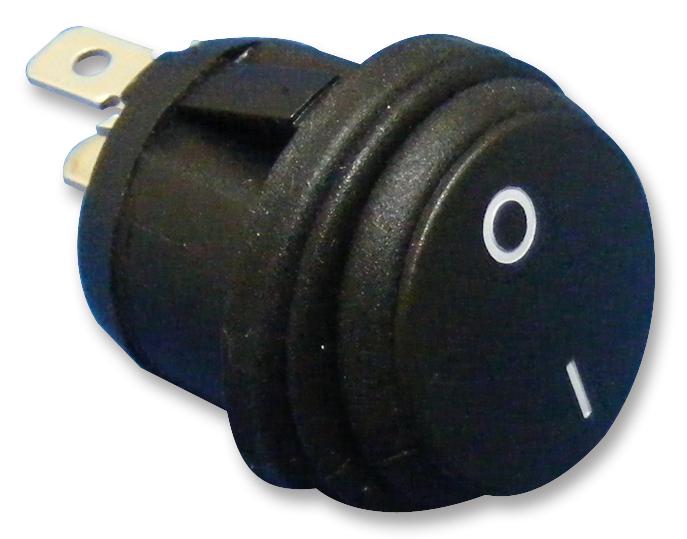

MULTICOMP PRO R13112F802BB2A Rocker Switch
The Multicomp Pro R13 series rocker switches are mechanically operated, available in both illuminated and non-illuminated versions, with multiple switching configurations, including SPST and DPST options. They are designed for panel mounting with actuator caps in white, black, red, and green, ensuring reliable performance in industrial, automation, and power management applications. Rated for use on direct and alternating current systems, these switches support loads up to 60 amperes at 250 volts or 30 amperes at 600 volts, and feature durable construction with high electrical and mechanical endurance. They are ideal for control panels, automation systems, and industrial machinery requiring robust switching solutions.
MULTICOMP PRO R13112F802BB2A Rocker Switch Specifications:
- Rated voltage and current: up to 60A at 250V AC, 30A at 600V AC
- Contact resistance: <100mΩ at 5V, 1A DC
- Dielectric strength: >1,000V (contact gap >2,500V between contacts)
- Insulation resistance: >100MQ at 500V DC
- Electrical life endurance: >6,000 operations
- Mechanical actuation force: varies by switch type
- Operating life endurance: >100,000 operations
- Terminal strength: >2.5 kg for solder terminals, >6.8 kg for plug-in/screw terminals
- Ambient temperature range: -20°C to +65°C
- Humidity: Max 85%
- Shock resistance: 100g/10ms; Vibration resistance: 10-55Hz/1.5mm, 2 hours per axis
- Material: Durable plastics with metal contacts
- Mounting: Panel mount
- Actuator color options: White, black, red, green
- Certifications: Suitable for industrial environment use
Buy the Buy Multicomp Pro Rocker Switch Series R13 Part Number R13112F802BB2A Online
Purchase the Multicomp Pro R13 series rocker switch online now to enjoy reliable switching performance in industrial and automation applications. Featuring SPST and DPST configurations, illumination options, and durable construction, this switch is ideal for power management and control panels. Its high electrical and mechanical endurance support over 100,000 operations, making it perfect for demanding environments. Easy to install with panel mounting, ensure your projects are equipped with robust, high-quality switches by ordering today for fast delivery and excellent support.
Order your Multicomp Pro Series R13 R13112F802BB2A rocker switch today and enhance your industrial control systems with dependable, high-performance switching solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13112F802BB2A?
You can click on the BUY or RFQ button to purchase R13112F802BB2A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13112F802BB2A?
You can download the R13112F802BB2A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13112F802BB2A?
MULTICOMP PRO
