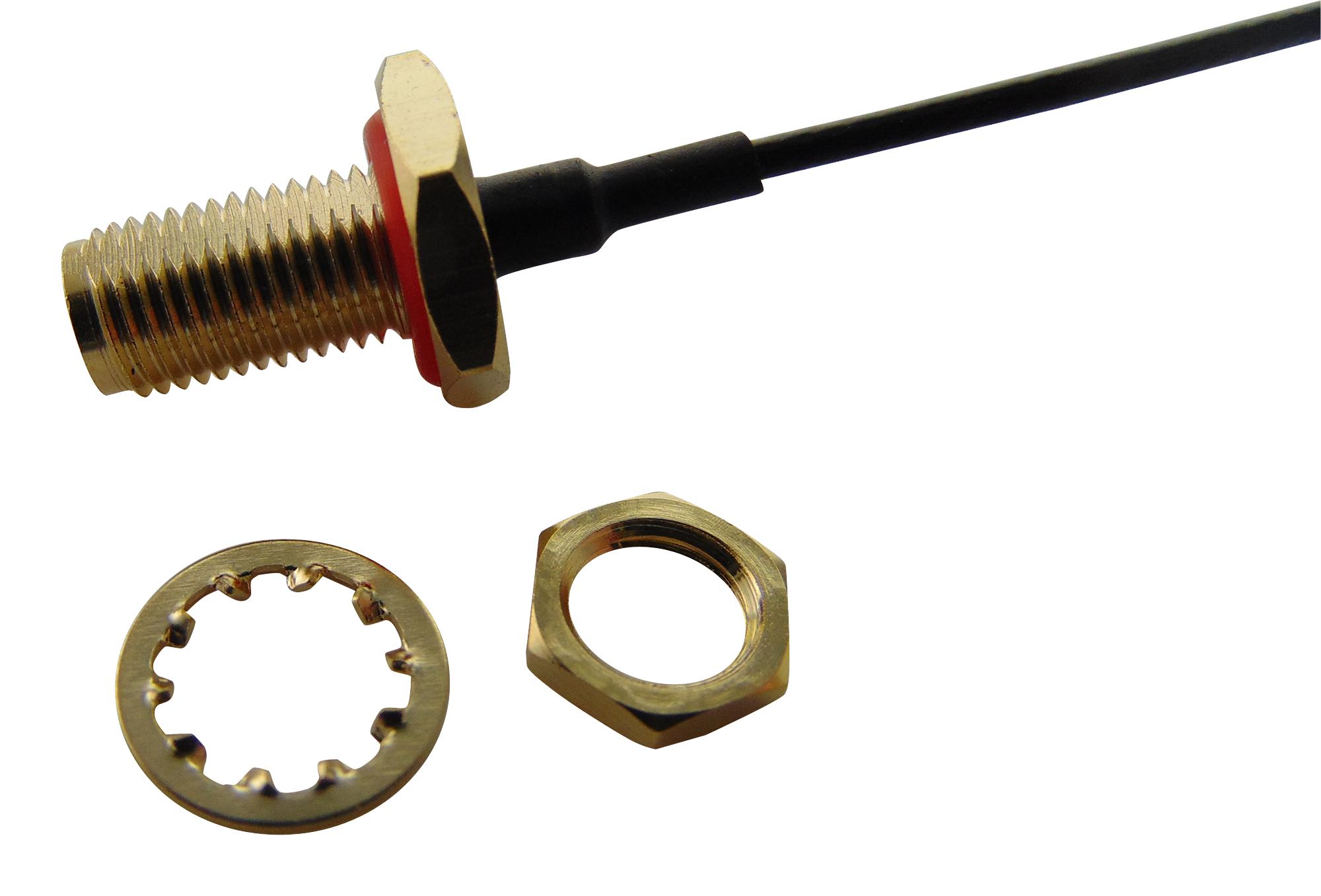

MULTICOMP PRO R132G7210100CC RF Coaxial Cable Assembly
The R-132G7210100CC is a 100mm waterproof RF coaxial cable assembly featuring an SMA bulkhead jack and a U.FL plug, ideal for outdoor RF, IoT, and antenna applications. It employs a low-loss 1.37mm cable with an impedance of 50Ω, operating from DC to 3 GHz, and supports a maximum voltage of 60Vrms. The assembly withstands DC~3GHz frequencies with an insertion loss of up to -1.3dB and a VSWR of 1.4:1. Suitable for RF communication modules, imaging systems, and video applications, it offers durability with IP67 waterproofing and temperature tolerance from -40°C to +90°C.
MULTICOMP PRO R132G7210100CC RF Coaxial Cable Assembly Specifications:
- Cable diameter: 1.37mm (options of 1.32mm double screened cable)
- Maximum cable bend radius: 16mm
- Temperature range: -40°C to +90°C
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Min.
- Insulation resistance: 500MΩ (Min.)
- Connector types: SMA bulkhead jack and U.FL plug
- Insertion loss: Up to -1.3dB
- VSWR: 1.4:1 Max
- Cable length: 100mm
- Color: Black
- Environmental: Waterproof IP67, suitable for outdoor use
- Temperature tolerance: -40°C to +90°C
Buy the Multicomp Series RF Coaxial Cable: R132G7210100CC
Enhance your RF communication setup with this durable, waterproof 100mm coaxial cable assembly featuring a high-quality SMA bulkhead jack and U.FL plug. Designed for outdoor environments with IP67 rating, it ensures reliable connections across a frequency range up to 3 GHz. Its low-loss 1.37mm cable, high impedance of 50Ω, and maximum working voltage of 60Vrms make it ideal for IoT, remote monitoring, and video systems. Easy to install, it withstands extreme temperatures from -40°C to +90°C, offering excellent performance in harsh conditions. Purchase online now for quick, secure delivery and professional-grade RF applications.
Order your Multicomp Series RF coaxial cable assembly R132G7210100CC today and ensure reliable, waterproof RF connections for outdoor and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R132G7210100CC?
You can click on the BUY or RFQ button to purchase R132G7210100CC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R132G7210100CC?
You can download the R132G7210100CC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R132G7210100CC?
MULTICOMP PRO
