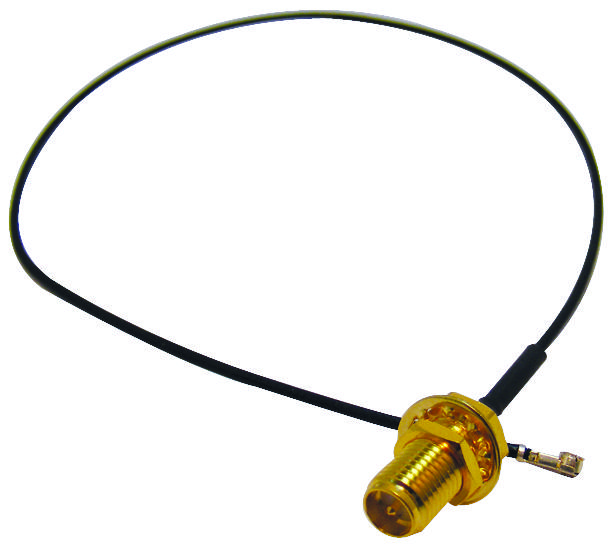

MULTICOMP-PRO R134G7210200CB RF Coaxial Cable Assembly
The RF coaxial cable assembly features a 200mm length with an IP67 waterproof rating, ideal for outdoor wireless communication systems. It connects an RP-SMA bulkhead jack with a U.FL connector, using a low-loss, black sheathed 1.37mm diameter cable. With a 50Ω impedance, it supports frequencies from DC to 3 GHz, handling up to 60V RMS with withstand voltages up to 200V RMS. Its insulator resistance exceeds 500 Megaohms, ensuring durability and reliable signal transmission in harsh environments, operating from -20°C to +70°C with low insertion loss and VSWR.
MULTICOMP-PRO R134G7210200CB RF Coaxial Cable Assembly Specifications:
- Connector Type A: U.FL
- Connector Type B: SMA, RP, bulkhead jack
- Cable Assembly Type: RF Coaxial
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Max. Working Voltage: 60V rms
- Min. Dielectric Withstanding Voltage: 200V rms
- Min. Insulation Resistance: 500 Megaohms
- Cable Length: 200mm
- External Diameter: 1.37mm
- Jacket Colour: Black
- Operating Temperature Range: -20°C to +70°C
- Insertion Loss: -1.3dB
- VSWR: 1.4:1
- Sheath Material: PVC, Black
- Connector Shell: Nickel-plated
- Weatherproof: IP67 rated
- Application: Outdoor RF communication systems
Buy the Multicomp Series RF Coaxial Cable IP67 Waterproof Part Number R134G7210200CB
Order the Multicomp RF coaxial cable assembly online today to ensure reliable outdoor wireless communication. Designed with IP67 waterproof protection and low-loss cable, it supports frequencies up to 3 GHz and is suitable for harsh environments. Its 200mm length with 50Ω impedance and high voltage ratings make it ideal for outdoor RF projects requiring high durability. With easy installation and excellent signal integrity, enhance your outdoor communication setups confidently with this high-quality, reliable RF cable assembly. Buy now for fast delivery and seamless integration.
Get Multicomp RF coaxial cable assembly today—built for outdoor RF communication with waterproof IP67 protection and high performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO R134G7210200CB?
You can click on the BUY or RFQ button to purchase R134G7210200CB from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part R134G7210200CB?
You can download the R134G7210200CB datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of R134G7210200CB?
MULTICOMP-PRO
