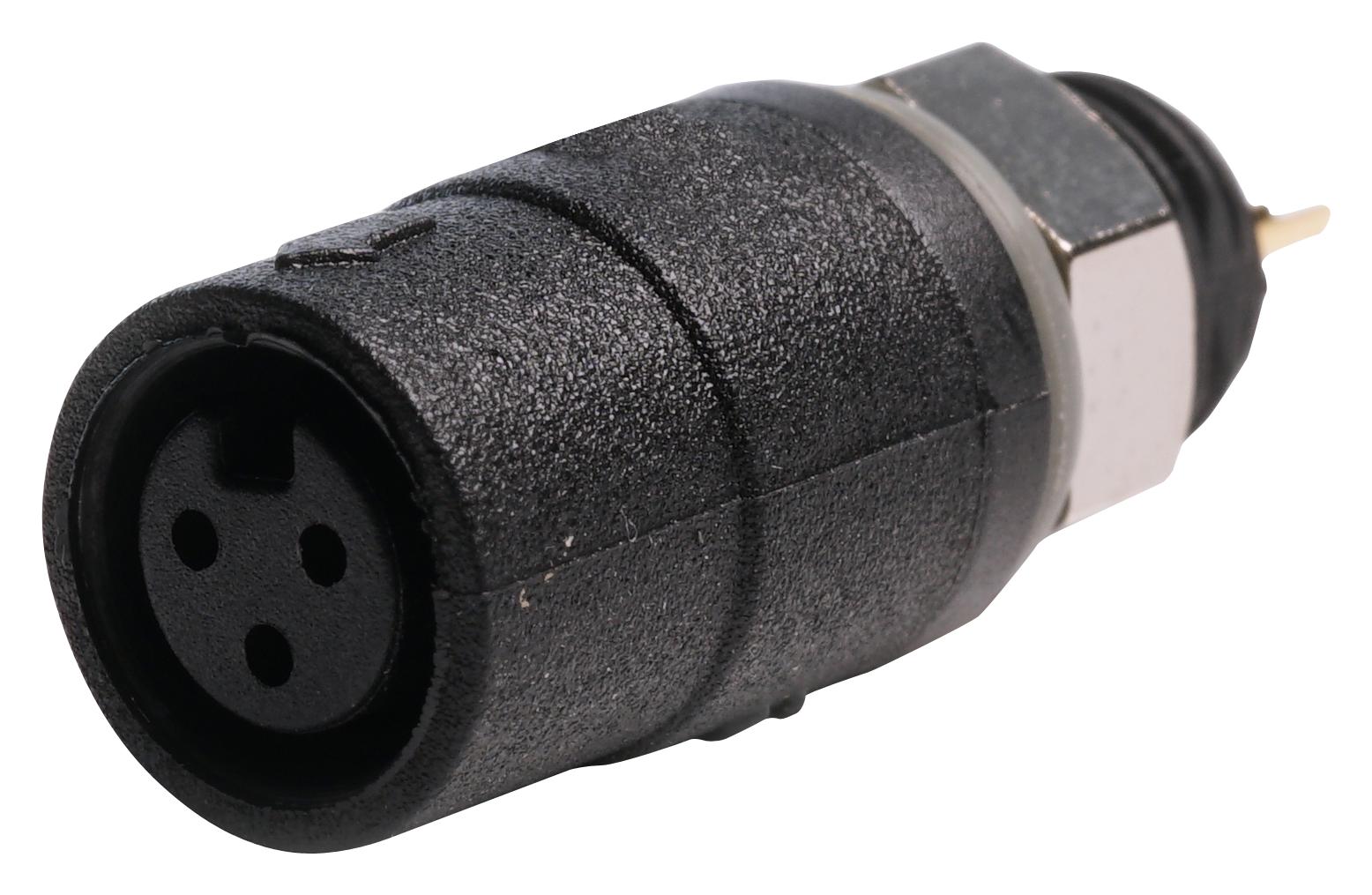

MULTICOMP PRO MP002492 Circular Connector
The MP M6 Snap-In Series are compact, environmentally sealed connectors with an IP67 rating, designed for quick, secure snap-in connection for cable-to-panel or cable-to-cable applications. These robust connectors feature a diameter of 8.5mm and support 3 or 6-pole configurations, suitable for automation, security, marine, and medical environments. They support both solder and pre-wired terminations, fitting a 6.1mm panel cut-out, ensuring reliable performance in tight spaces. Ideal for industrial control, process automation, and harsh conditions, these connectors combine ease of use with durability.
MULTICOMP PRO MP002492 Circular Connector Specifications:
- IP Rating: IP67
- Diameter: 8.5mm
- Panel Cut-Out: 6.1mm
- Supports: 3 or 6 poles
- Material: Thermoplastic housing, copper alloy contacts
- Finish: Au plated contacts
- Cable Compatibility: UL20549 24AWGx3C+Al/My, OD=4.4mm, PU, Black
- Termination: Solder and pre-wired options available
- Environmental Sealing: Sealed to prevent dust and water ingress
- Suitable for: Automation, process control, security, marine, medical industries
- Mounting: Snap-in connection for quick installation
- Connector type: Circular, snap-in
- Application: In-line cable-to-cable, cable-to-panel connections
- Compliance: RoHS compliant
- Operating Temperature Range: Typical -40°C to +105°C
- Dimensions: 8.5mm diameter, supports a 6.1mm mounting cut-out
Buy the Buy Multicomp Snap-in M6 Connector Part Number MP002492 Online
Order the reliable Multicomp Snap-in M6 Connector MP002492 online now to ensure secure, easy-to-install connections for your automation or industrial project. This IP67-rated connector supports both solder and pre-wired terminations, fitting a 6.1mm panel cut-out, making it ideal for tight or harsh environments. Its durable thermoplastic housing and gold-plated contacts provide excellent corrosion resistance and high-performance connectivity. Perfect for wire-to-panel or cable-to-cable applications in industrial, medical, marine, and security sectors—buy online today for fast, dependable delivery and superior connection quality.
Get Multicomp Snap-in M6 Connector MP002492 today—designed for quick installation, reliable sealing, and long-lasting durability in industrial environments.
