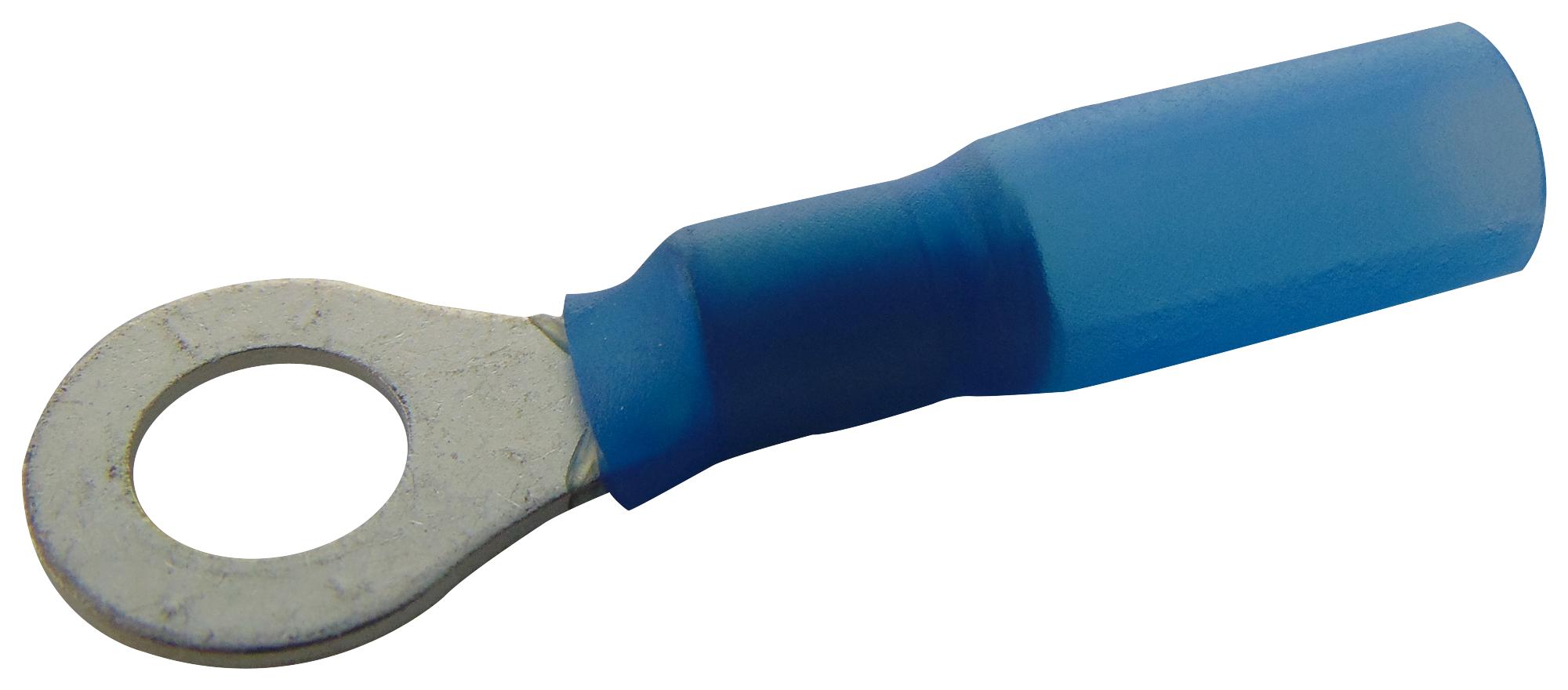

MULTICOMP PRO RHD26 Ring Crimp Terminal
This ring crimp terminal is designed for secure electrical connections with a ring tongue terminal type suitable for 16-14 AWG wires. Made from tin-plated copper, it features a high-density polyethylene insulation with a copper sleeve on the barrel, ensuring durability and corrosion resistance. It is rated for up to 600V and can operate reliably between -10°C and +105°C. The terminal has a 6mm stud size, with a maximum cable diameter of 1.63mm, and is ideal for various industrial and electrical wiring applications, providing a robust, insulated connection.
MULTICOMP PRO RHD26 Ring Crimp Terminal Specifications:
- Maximum Electrical Rating: 600V
- Maximum Electrical Current: 18A (AWG 16), 30A (AWG 14)
- Wire Range: 16AWG-14AWG (1.5mm² - 2.5mm²)
- Insulation Material: High Density PE with copper sleeve on barrel
- Insulated Colour: Blue
- Terminal Material: Copper, Tin plated
- Terminal Thickness: 0.8mm
- Stud/Tab Size: 6mm
- Cable Diameter Max: 1.63mm
- Operating Temperature: -10°C to +105°C
- Shrink Temperature: 150°C
- Connector Type: Ring Tongue
- Termination Method: Crimp
- Dimensions: Not specified, but designed for 6mm stud connection
Buy the Buy Multicomp Ring Crimp Terminal Part Number RHD26 Online
Purchase the multicomp series RHD26 ring crimp terminal online today and enjoy fast delivery and competitive pricing. This high-quality terminal is perfect for 16-14 AWG wires, featuring durable tin-plated copper construction. Its high-density PE insulation ensures safety and reliability in a wide temperature range from -10°C to +105°C. With a 6mm stud size and maximum cable diameter of 1.63mm, it provides a secure, corrosion-resistant connection suitable for industrial applications. Order now to enhance your wiring systems with trusted quality and convenience.
Order your Multicomp Series RHD26 ring crimp terminal today and secure reliable electrical connections with high-density insulation and tin plating for durability.
