MULTICOMP PRO MCBFS5220471KU power inductor
The inductor provides a 470uH inductance with a ±10% tolerance, suitable for various electronic applications. Designed for reliable performance, it features high-temperature resistance up to 130°C and a low DCR of approximately 3.14 ohms, ensuring efficient energy storage and minimal power loss. Its compact SMD design makes it ideal for space-constrained circuits, and the component undergoes extensive reliability testing including vibration, humidity, and temperature cycling to guarantee durability. Constructed with high-quality materials, it ensures consistent inductance values and stable operation in demanding environments.
MULTICOMP PRO MCBFS5220471KU power inductor Specifications:
- Inductance: 470uH with ±10% tolerance
- Maximum Temperature: 130°C
- DCR: approximately 3.14 ohms
- Material: R5A core, copper wire @0.11mm
- Dimensions: Length 12.77mm, Width 9.21mm, Height 4.81mm
- Solder Type: Lead free, Sn99.3%/Cu0.7%
- Operating Frequency Range: up to 1kHz
- Vibration Resistance: No damage at 10-55Hz, amplitude 4.52mm
- Temperature Cycling: 10 cycles between -40°C to 85°C
- Humidity Resistance: 90-95% RH for 500 hours
- Solderability: >90% solder coverage at 245°C
- Reliability Tests: High temperature, low temperature, humidity, vibration, and temperature cycling
- Application: Suitable for power supplies, filtering, energy storage, and electronic circuits

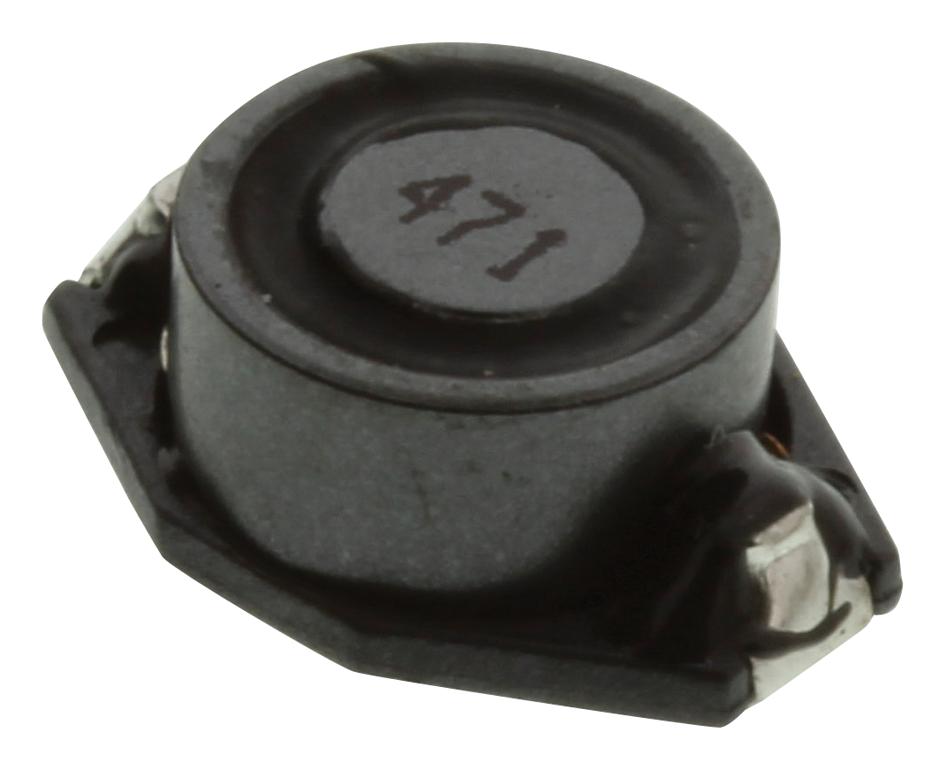

Buy the Buy Multicomp Pro Inductor Part Number MCBFS5220-471KU Online
Purchase the Multicomp Pro power inductor MCBFS5220-471KU online today and enjoy reliable performance in your electronic designs. This 470uH SMD component offers a tolerance of ±10%, operates up to 130°C, and features a low DCR for efficient energy storage. Its durable construction withstands vibration, humidity, and temperature cycling tests, ensuring durability in demanding environments. Perfect for power supplies, filtering, energy storage, and circuit stability, this inductor guarantees high-quality performance. Order now for fast delivery and enhance your projects with trusted components.
Get Multicomp Pro MCBFS5220-471KU today—built for precision and long-lasting durability in power management and filtering applications.
