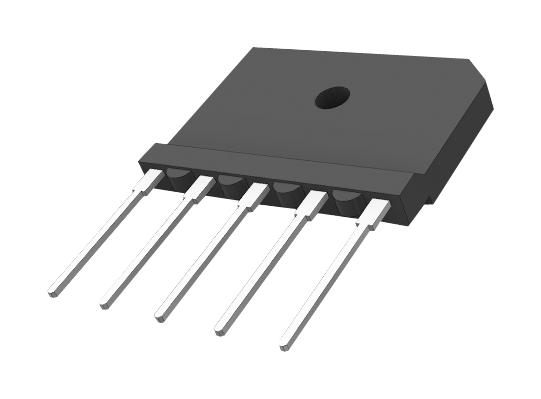

MULTICOMP PRO SGBJ2516 Three Phase Bridge Rectifier
The three-phase bridge rectifier with glass passivated chip offers high reliability, low forward voltage drop, and an insulation voltage of 2500V. Suitable for power supplies of DC equipment, PWM converter input rectifiers, and DC motor applications, it features a compact size, lightweight design, and excellent thermal conductivity for efficient heat dissipation. Rated for up to 1600V and 25A, it has a maximum average forward current of 25A, a peak surge current of 350A, and operates within temperature ranges from -55°C to +150°C. The device ensures safe operation with UL 94V-0 flammability rating and complies with industry standards.
MULTICOMP PRO SGBJ2516 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V (SGBJ2508), 1000V (SGBJ2510), 1200V (SGBJ2512), 1600V (SGBJ2516)
- Peak Non-Repetitive Reverse Voltage VersM: 900V, 1100V, 1300V, 1700V respectively
- Maximum Forward Surge Current Irs: 350A at 8.3ms
- Maximum Average Forward Current: 25A
- Forward Voltage Drop: 14V at Ve 12.5A
- Reverse Peak Current Ir: 5pA
- Insulation Voltage Viso: 2500V
- Typical Thermal Resistance: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Mounting Torque: 0.8 N·m
- Weight: 10g
- Dimensions: 1.391 inches (35.3mm) length, 0.993 inches (25.2mm) width, 0.140 inches (3.55mm) height
- Material: Glass passivated chip, thermally conductive body
Buy the Multicomp Series 3 Phase Bridge Rectifier: SGBJ2516
Purchase the high-reliability three-phase bridge rectifier online today to ensure efficient power rectification for your DC equipment, motor drives, or PWM converters. Designed with glass passivated chips, it features low forward voltage drop, high insulation voltage, compact size, and excellent thermal performance, making it perfectly suited for industrial and electronics applications requiring durable, safe, and efficient power conversion solutions, with fast delivery and trusted online shopping convenience.
Get Multicomp Series 3 Phase Bridge Rectifier SGBJ2516 today—built for high reliability and efficient power conversion.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ2516?
You can click on the BUY or RFQ button to purchase SGBJ2516 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ2516?
You can download the SGBJ2516 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ2516?
MULTICOMP PRO
