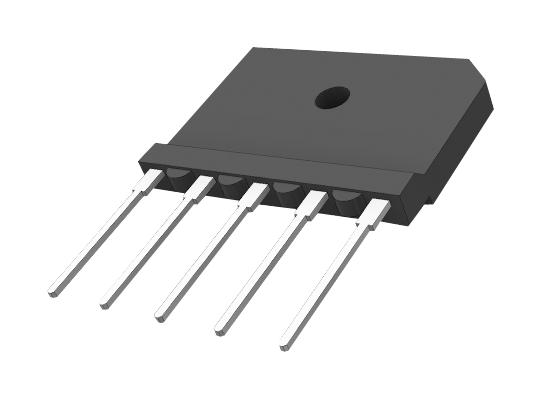

MULTICOMP PRO SGBJ5016 Three Phase Bridge Rectifier
The three-phase bridge rectifier is designed with glass-passivated chip technology for high reliability and low forward voltage drop. It features an insulation voltage of 2500V, small size, and lightweight construction. Suitable for power supplies of DC equipment, PWM converter input rectifiers, and DC motor applications, it has a peak repetitive voltage of 1600V and a maximum average forward current of 50A at 110°C. The rectifier offers high thermal conductivity, low thermal resistance, and operates within a temperature range of -55°C to +150°C, with quick surge current handling and robust electrical characteristics.
MULTICOMP PRO SGBJ5016 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1600 V
- Peak Non-Repetitive Reverse Voltage VRSM: 1700 V
- Maximum Average Forward Current: 50A at 110°C
- Peak Forward Surge Current: 450A
- Maximum Forward Voltage Drop: 17.5V at Peak
- Reverse Peak Current: 5pA
- Isolation Voltage: 2500 V
- Thermal Resistance: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 1.391 inches (35.3 mm) x 0.993 inches (25.2 mm)
- Weight: 10g
- Mounting Torque: 0.8 N·m
- Insulation Voltage: 2500V
Buy the Multicomp Series SGBJ 1600V Bridge Rectifier: SGBJ5016
Discover the high-performance three-phase bridge rectifier, ideal for power supplies, PWM input conversion, and DC motors. Features include a 1600V voltage rating, 50A current capacity, lightweight design, and exceptional thermal management. This robust component offers high insulation voltage of 2500V, low forward voltage drop, and excellent reliability across a wide temperature range. Perfect for industrial and commercial power applications, it ensures efficient energy conversion, durability, and easy mounting. Enhance your electrical system with this dependable, compact rectifier designed for demanding environments and long-term operation.
Buy Multicomp SGBJ5016 now and experience unmatched reliability and performance in power rectification applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ5016?
You can click on the BUY or RFQ button to purchase SGBJ5016 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ5016?
You can download the SGBJ5016 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ5016?
MULTICOMP PRO
