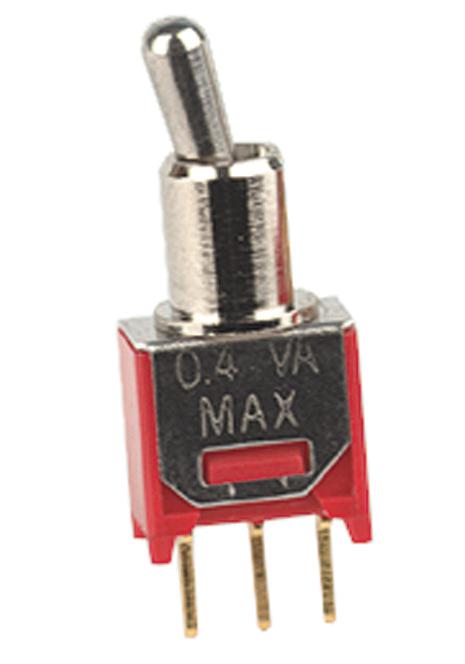

MULTICOMP PRO 2MD2T2B2M2RE Toggle Switch
This high-quality toggle switch offers multiple configurations including SPDT and DPDT with vertical and horizontal mounting options, ideal for electronic and industrial control applications. It features gold contacts for reliable conductivity, epoxy sealing for durability, and supports manual soldering and wave soldering methods with a recommended peak temperature of 260°C. Designed for robust performance, it withstands temperatures from -30°C to +85°C, ensuring consistent operation in various environments. The switch's sturdy construction includes brass, chrome, and nickel-plated components, making it suitable for demanding professional use.
MULTICOMP PRO 2MD2T2B2M2RE Toggle Switch Specifications:
- Contact Rating: 0.4 volt-amps at 20V max.
- Mechanical Life: 30,000 cycles
- Contact Resistance: 20mΩ max. at 2 to 4V DC
- Dielectric Strength: 1,000VRms at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Case and Bushing - Diallyl phthalate; Actuator - Brass, chrome plated; Housing - Brass, nickel plated; Contact Terminals - Brass, tin plated; Seal - Epoxy
- Dimensions vary by model, typically around 5.59 mm to 9.25 mm in height, with detailed millimeter and inch measurements provided.
- Soldering: Manual and wave soldering recommended; peak temperature 260°C with specific profile
- Mounting: Panel, PCB, or threaded options available, with mounting dimensions specified for each model
- Seal: Epoxy for environmental protection
- Switch Function: SPDT and DPDT configurations available with multiple pole and position options
Buy the Buy multicomp:ro Toggle Switch Part Number 2MD2T2B2M2RE Online
Discover the reliable multicomp:ro toggle switch designed for professional electronics and industrial control systems. With multiple configurations including SPDT and DPDT, epoxy sealing, and gold contact material, this switch ensures durability and consistent performance. Easy to install via through-hole mounting, it supports manual and wave soldering processes with a maximum peak temperature of 260°C. Suitable for temperature ranges from -30°C to +85°C, it offers excellent electrical characteristics, making it ideal for rigorous environments. Purchase online today for guaranteed quality and performance in your next project.
Buy multicomp:ro 2MD2T2B2M2RE toggle switch now and experience unmatched reliability and versatile control with epoxy sealing for demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MD2T2B2M2RE?
You can click on the BUY or RFQ button to purchase 2MD2T2B2M2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MD2T2B2M2RE?
You can download the 2MD2T2B2M2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MD2T2B2M2RE?
MULTICOMP PRO
