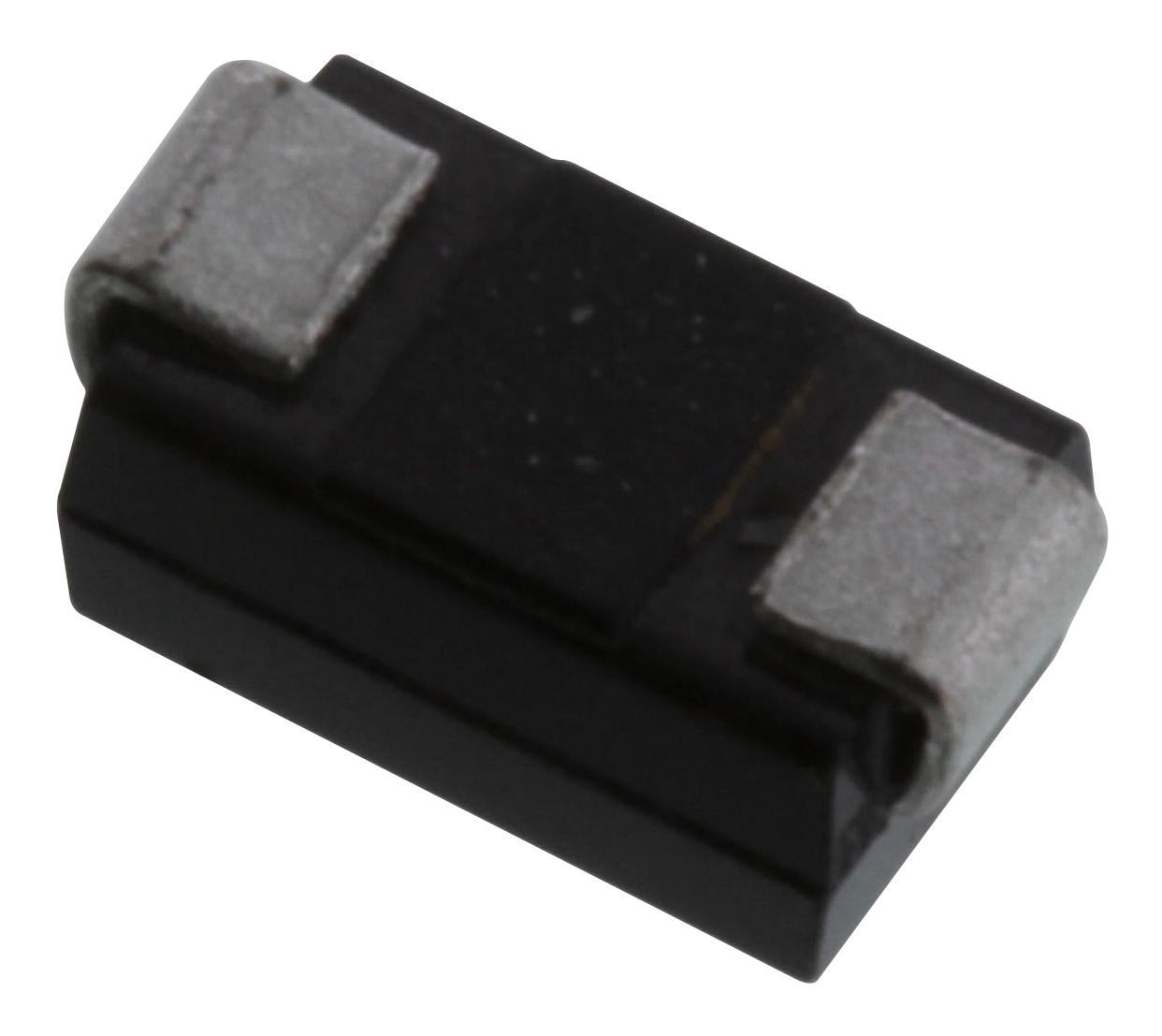

MULTICOMP PRO SMAJ4744A Silicon Zener Diode
Silicon Zener Diode designed for voltage regulation and protection in electronic circuits. Features high surge current rating and higher voltages. Case: JEDEC DO-214AC molded plastic over passivated chip, with terminals solderable per MIL-STD-750, method 2026. Suitable for surface mounted applications with UL 94-0 flame retardant epoxy. Voltage range from 3.3 to 100 volts, with a power dissipation of 1.0 Watts. Maximum temperature for soldering is 260°C for 10 seconds, and operating temperature ranges from -55°C to +150°C. These diodes are ideal for stabilizing voltage in power supplies and protecting sensitive electronics from voltage spikes.
MULTICOMP PRO SMAJ4744A Silicon Zener Diode Specifications:
- Case: JEDEC DO-214AC molded plastic
- Terminal: Solderable per MIL-STD-750, method 2026
- Polarity: Indicated by cathode band
- Voltage Range: 3.3 to 100 Volts
- Power Dissipation: 1.0 Watts
- Operating Temperature Range: -55°C to +150°C
- Soldering Temperature: 260°C for 10 seconds max.
- Voltage Tolerance: Approximately ±10%
- Peak Reverse Voltage: Varies from 7.5V to 56V depending on model
- Zener Impedance: 61Ω to 110Ω at specified currents
- Maximum Surge Current: Up to 200mA
- Dimensions: 0.067 x 0.110 inches (1.7 x 2.80 mm), height: 0.030 inches (0.76 mm), various pin configurations
- Package: Surface mount (SMa-DO-214AC) with high surge capacity
Buy the Multicomp Series Silicon Zener Diode Voltage Regulation Part Number SMAJ4744A
Secure your electronic projects today by purchasing the multicomp Silicon Zener Diode online. This high-quality component offers excellent voltage regulation, surge protection, and reliable performance in demanding industrial environments. Its surface mounted design ensures easy installation, while the high surge current rating and temperature range make it suitable for a wide variety of applications. Don't miss out on this essential component for power stability, circuit protection, and efficient regulation – buy now and ensure stable operation of your electronic systems.
Buy multicomp Silicon Zener Diode now and experience unmatched voltage stability and surge protection for your industrial electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SMAJ4744A?
You can click on the BUY or RFQ button to purchase SMAJ4744A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ4744A?
You can download the SMAJ4744A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SMAJ4744A?
MULTICOMP PRO
