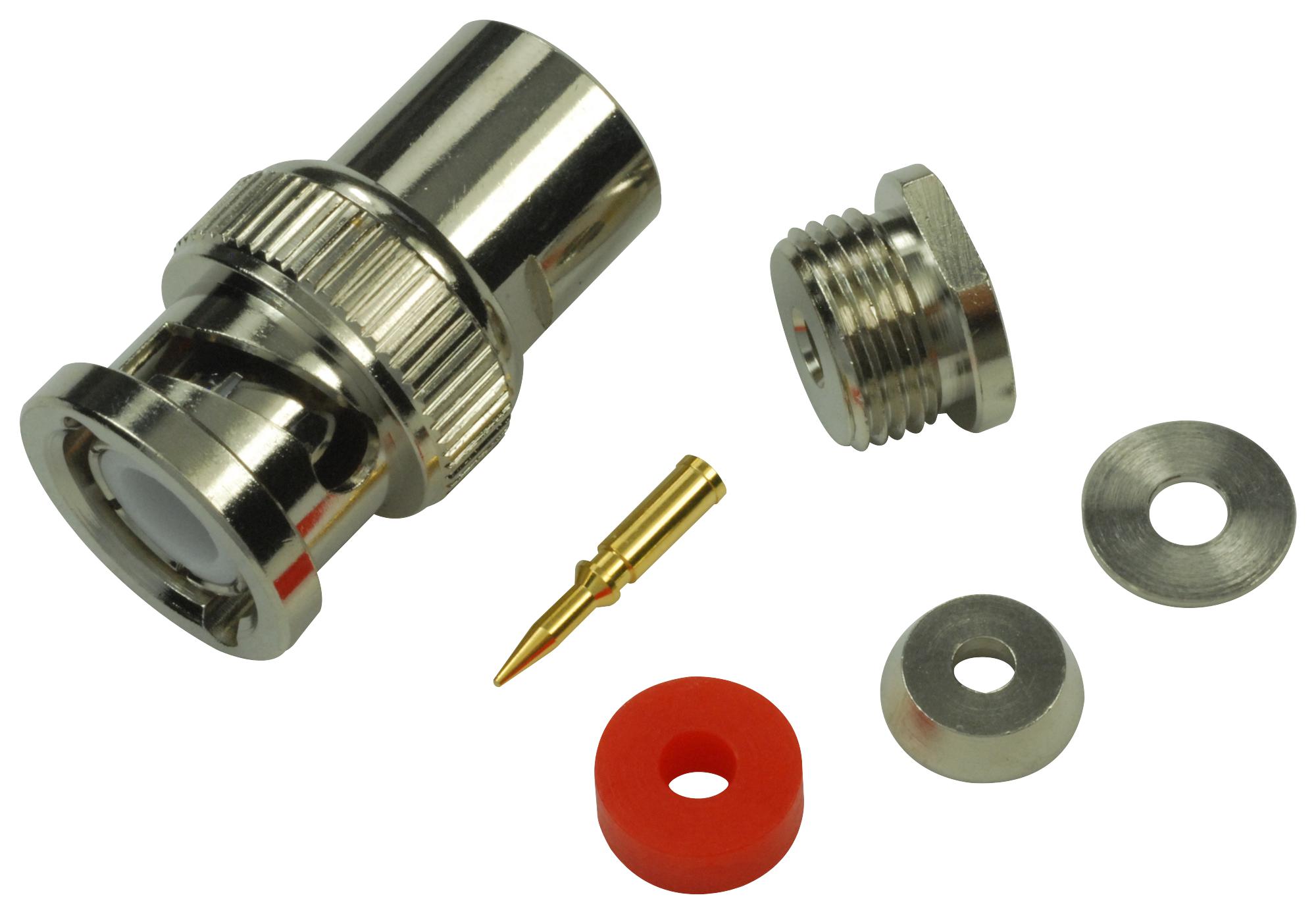

MULTICOMP-PRO SPC11223 BNC Coaxial Connector
The SPC11223 is a straight BNC clamp plug compatible with RG174, RG188, RG188A, RG316U, 9174, and 9316 Alpha RF coaxial cables. It features a silver-plated brass body with a gold-plated brass center contact and a PTFE insulator. Designed for RF communication and industrial applications, it offers a maximum VSWR of 1.3 and a temperature range of -65°C to 85°C. This product is rated highly for quality, with a 12-month limited warranty and a high customer recommendation rate.
MULTICOMP-PRO SPC11223 BNC Coaxial Connector Specifications:
- Connector Type: BNC
- Connector Body Style: Straight Plug
- Coaxial Termination: Solder
- Impedance: 50Ω
- Coaxial Cable Types: RG174, RG188, RG188A, RG316U, 9174, 9316
- Contact Material: Brass
- Contact Plating: Gold Plated
- Frequency Max: 4GHz
- Connector Mounting: Cable Mount
- Material: Brass
- Finish: Nickel, 100μm
- Insulator: PTFE
- Temperature Range: -65°C to 85°C
- Max VSWR: 1.3
Buy the Buy Multicomp Coaxial BNC Part Number SPC11223 Online
Purchase the Multicomp BNC Coaxial Connector SPC11223 online today. Ideal for RF communication systems, it features a high-quality brass body with gold-plated contacts, compatible with RG174 cables. Designed for industrial and communication applications, it provides excellent electrical performance up to 4GHz, with a robust solder connection and PTFE insulator for durability. Enjoy fast, secure online purchasing and benefit from our warranty, ensuring a reliable connection in your RF projects or testing setups. Order now for top-tier performance.
Get Multicomp SPC11223 today—built for RF communication with high durability and reliable performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SPC11223?
You can click on the BUY or RFQ button to purchase SPC11223 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC11223?
You can download the SPC11223 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SPC11223?
MULTICOMP-PRO
