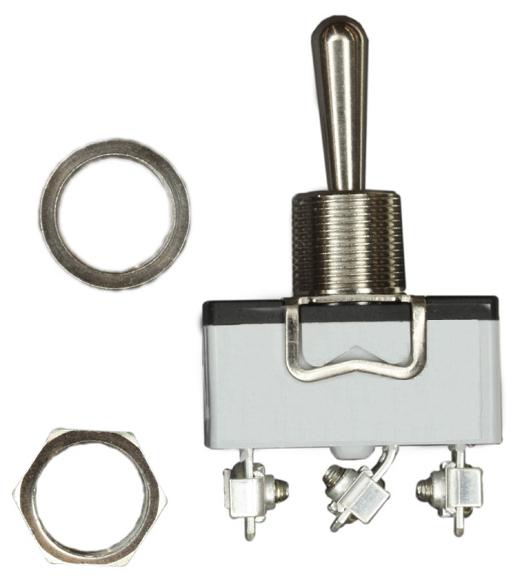

MULTICOMP PRO SPC21169 Industrial Toggle Switch
The SPC21169 is a robust dual-pole double-throw panel-mount toggle switch designed for industrial use. It features a non-illuminated ON-ON switching function with a chrome-plated brass actuator and nickel-plated brass bushing for durability. Made with silver alloy contacts, it offers a maximum contact resistance of 20 milliohms and a minimum insulation resistance of 200 megaohms at 500V DC. The switch has a rated lifetime of 40,000 cycles and operates effectively between -30°C and 85°C, ensuring reliable performance in demanding environments.
MULTICOMP PRO SPC21169 Industrial Toggle Switch Specifications:
- Action: DPDT
- Contact Rating: 215A at 250V AC, 20A at 125V AC
- Max. Contact Resistance: 20mΩ
- Dielectric Strength: 1,500Vrms
- Min. Insulation Resistance: 200MΩ at 500V DC
- Operating Life: 40,000 cycles
- Operating Temperature: -30°C to +85°C
- Material: Actuator - Brass, chrome plated; Bushing - Brass, nickel plated; Contact - Silver alloy; Support - Brass, tin plated
- Terminal Types: SPC21169 (Brass, nickel plated, screw/long), SPC21166 (Bare brass, flat), SPC21408 (Brass, tin plated, solder), others
- Switching Positions: DPDT, ON-ON configuration
- Connection Terminals: Multiple types including screw and solder terminals
- RoHS Compliant
Buy the Buy Multicomp Pro Switch Part Number SPC21169 Online
Secure your industrial control panels with the Multicomp Pro SPC21169 toggle switch. Featuring durable silver alloy contacts, a chrome-plated actuator, and nickel-plated brass components, this switch ensures reliable operation for up to 40,000 cycles. Designed for demanding environments, it handles high current ratings and offers excellent insulation resistance. Easy to install with screw terminals, this DPDT switch is RoHS compliant and perfect for automation, machinery, and control systems. Buy online today for quality and durability you can trust.
Get Multicomp Pro SPC21169 today—designed for high reliability and long-lasting control in industrial applications.
