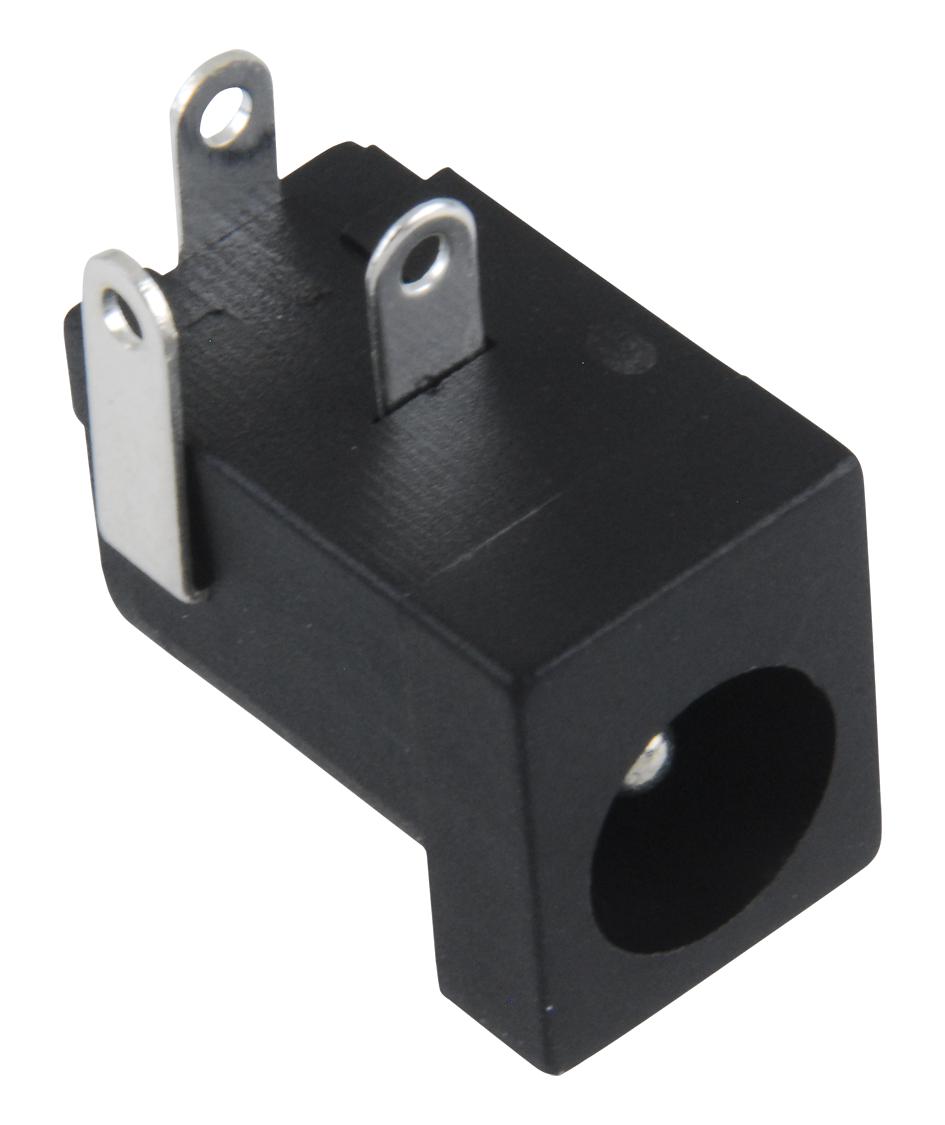

MULTICOMP PRO SPC21364 Power Jack
The SPC21364 power jack is designed for reliable panel mounting with solderable contacts, supporting up to 5A at 16V DC. It features a contact resistance of 30mΩ, insulation resistance of 50MΩ minimum at 500V DC, and dielectric strength of 500VAC. The component withstands 5,000 operational cycles, operating effectively within -25°C to +70°C temperatures, and tolerates wave soldering at 260°C for 5 seconds. Its compact design includes pin diameters, terminal sleeves, and dimensions suitable for power supply connections in various electronic devices, ensuring durability and corrosion resistance for long-term use.
MULTICOMP PRO SPC21364 Power Jack Specifications:
- Connector Type: DC Power
- Contact Rating: 5A at 16V DC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 50MΩ Min at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Life Cycle: 5,000 Cycles
- Insertion Force: 0.3kg to 3kg
- Withdrawal Force: 0.3kg to 3kg
- Operating Temperature: -25°C to +70°C
- Wave Solder Temperature: 260°C for 5 seconds
- Pin Diameter: 1.45 +0.0/-0.1 mm
- Schematic Sleeve Diameter: 2.35 +0.0/-0.1 mm
- Dimensions: Compact panel mount design suitable for power connection
- RoHS compliant and rated for environmental durability
Buy the Multicomp Series Power Jack: SPC21364
Purchase the Multicomp SPC21364 power jack online today for your power supply and electronic device projects. This durable and reliable component features panel mounting with solderable contacts, supporting up to 5A current and high insulation resistance. Designed to withstand high temperatures and repeated cycles, it ensures long-term performance. Ideal for power management systems, its compact form factor simplifies installation, while its high dielectric strength guarantees safety and durability. Order now for fast delivery and excellent quality to enhance your electronic applications.
Get Multicomp Series SPC21364 today—built for reliable power management and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SPC21364?
You can click on the BUY or RFQ button to purchase SPC21364 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC21364?
You can download the SPC21364 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SPC21364?
MULTICOMP PRO
