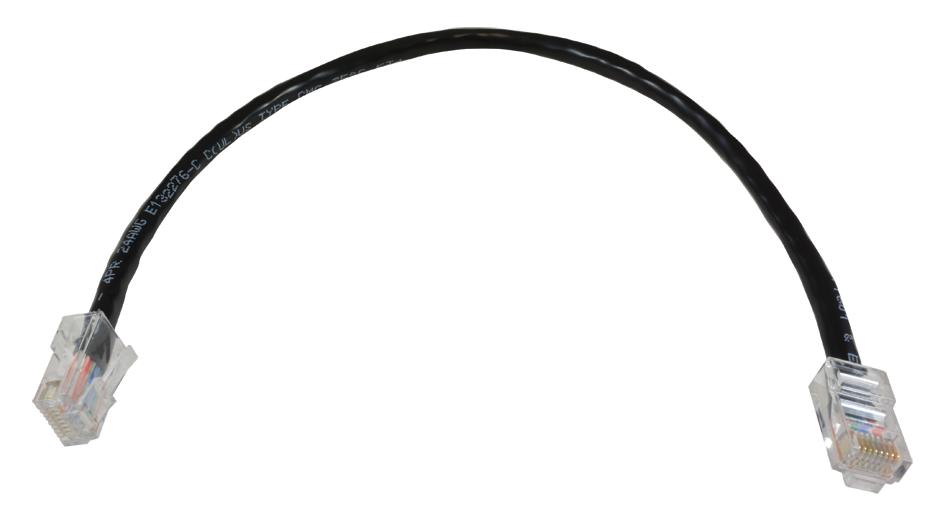

MULTICOMP PRO SPC21902 Ethernet Patch Cable
The SPC21902 is a 1-foot Category 5e Ethernet patch cable with RJ45 connectors, constructed with 24 AWG stranded copper conductors and PVC insulation in a black jacket. It features a Shore A hardness of approximately 88 ± 3, a dielectric strength of 500 VAC for one minute, and a temperature rating up to 75°C, ensuring reliable network connections. The cable's maximum conductor resistance is 89 ohms per kilometer at 20°C, with a minimum insulation resistance of 100 megaohms per kilometer at 20°C. Its impedance is approximately 100 ohms ± 15 ohms, making it suitable for high-speed LAN environments and data transfer applications.
MULTICOMP PRO SPC21902 Ethernet Patch Cable Specifications:
- Wire Gauge: 24 AWG (7/0.2mm)
- Conductor Material: Bare Copper
- Insulation Material: Polyethylene (PE)
- Jacket Material: PVC
- Cable Length: 1 foot
- Color: Black
- Hardness: Shore A 88 ± 3
- Temperature Rating: Up to 75°C
- Dielectric Strength: 500V AC for 1 minute
- Conductor Resistance: Max 89Ω per km at 20°C
- Insulation Resistance: Min 100 MΩ per km at 20°C
- Impedance: 100 ± 15Ω (from 1 MHz to 350 MHz)
- Connectors: RJ45 8P8C, Gold-plated contacts
- Compliance: RoHS, UL CMG FT4 rated
- Application: Ethernet networking, high-speed data transfer
Buy the Buy multicomp Ethernet Patch Cable Part Number SPC21902 Online
Purchase the multicomp SPC21902 Ethernet patch cable online for all your networking needs. Designed with 24 AWG copper conductors and a durable PVC jacket, this 1-foot cable ensures stable, high-speed connections with excellent insulation resistance and impedance suited for LAN environments. Its Shore A hardness of 88 ± 3 and temperature rating up to 75°C guarantee flexibility and durability in demanding settings. Reliable and easy to install, this cable is ideal for professional networking, data transfer, and ensuring seamless connectivity across your devices. Order now for fast delivery and quality assurance.
Get multicomp SPC21902 today—built for reliable network connections and high-quality data transfer.
