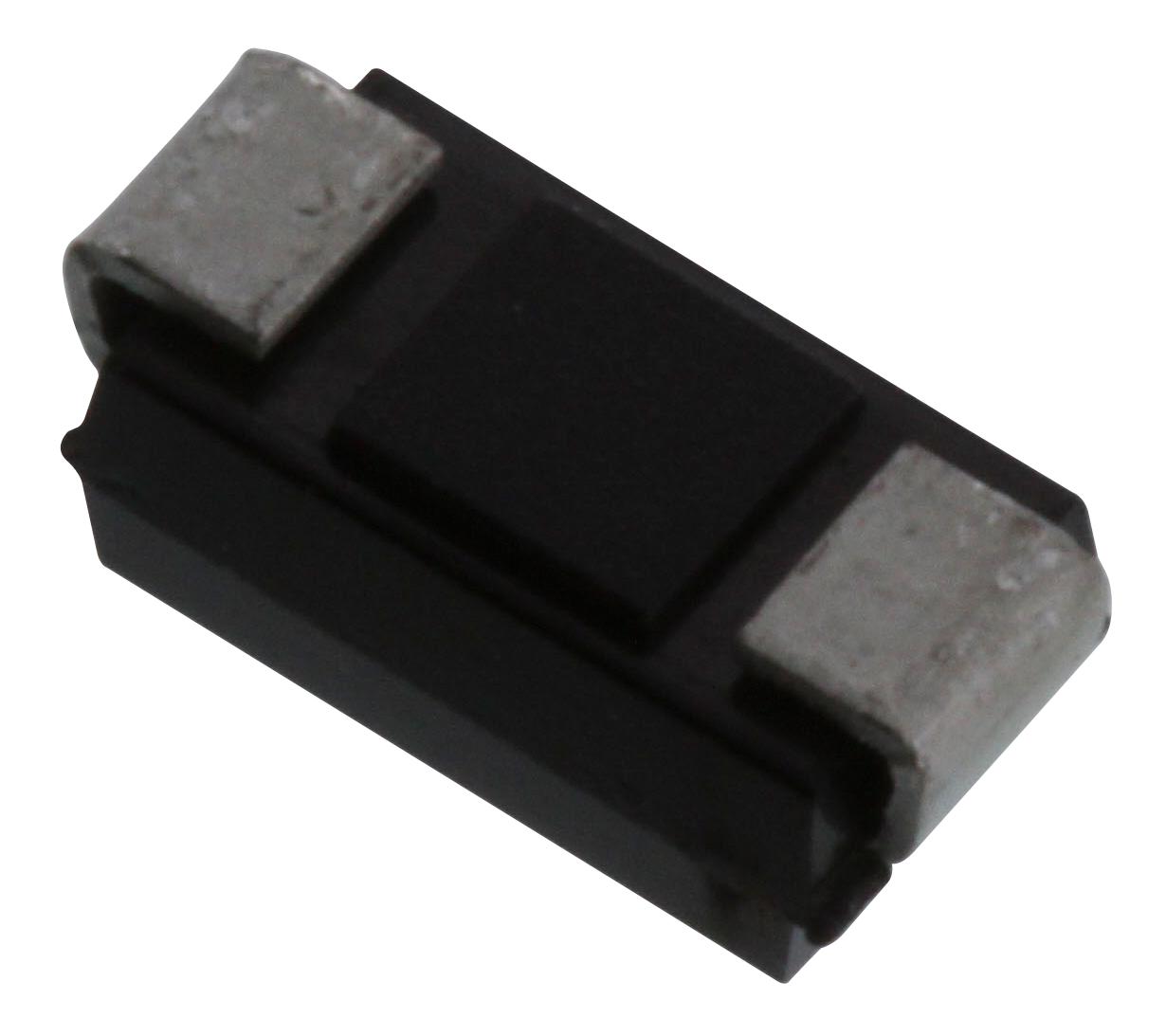

MULTICOMP PRO SS110 Schottky Rectifier
The SS110 Schottky Rectifier is designed for surface mounted applications, featuring a metal-semiconductor junction with guarding and epitaxial construction. It offers very low forward voltage drop and high current capability, making it suitable for low voltage, high frequency inverters, freewheeling, and polarity protection. With a reverse voltage range of 20 to 150V and a maximum forward current of 1A, it is built for durability and efficiency in electronic power regulation. Its plastic case has UL 94V-0 flammability rating, ensuring safety and reliability.
MULTICOMP PRO SS110 Schottky Rectifier Specifications:
- Case: Molded Plastic with UL 94V-0 flammability rating
- Polarity: Color band denotes cathode
- Weight: 0.002 ounces, 0.053 grams
- Reverse Voltage: 20 to 150 Volts
- Forward Current: 1 Ampere at 25°C
- Max RMS Voltage: 14 to 105 V
- Max. DC Blocking Voltage: 20 to 150 V
- Peak Forward Surge Current: 30A (8.3ms single half sine-wave)
- Max. Instantaneous Forward Voltage: 0.5 to 0.95V at 1A and 25°C
- Max. Reverse Current at 25°C: 0.2 to 0.1A
- Junction Capacitance: 110 pF
- Thermal Resistance: 28°C/W
- Operating Temperature Range: -65°C to +150°C
- Storage Temperature Range: Not specified
- Dimensions: Length approximately 0.181 inch (4.60mm), width 0.114 inch (2.90mm), height 0.049 inch (1.25mm)
Buy the Schottky Rectifier Series SS110: High-Speed 150V 1A
Purchase the Schottky Rectifier Series SS110 online today for reliable low forward voltage drop and high current capability. Designed for surface mounted applications, it features a molded plastic case with UL 94V-0 flammability rating, offering safety and efficiency. Its specifications include a reverse voltage of 20 to 150V, a maximum forward current of 1A, low junction capacitance, and excellent thermal resistance. Ideal for low voltage, high frequency inverters, freewheeling, and polarity protection, this rectifier ensures optimal performance in your electronic projects and manufacturing solutions.
Get Schottky Rectifier Series SS110 today—built for precision and long-lasting durability in power conversion applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SS110?
You can click on the BUY or RFQ button to purchase SS110 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SS110?
You can download the SS110 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SS110?
MULTICOMP PRO
