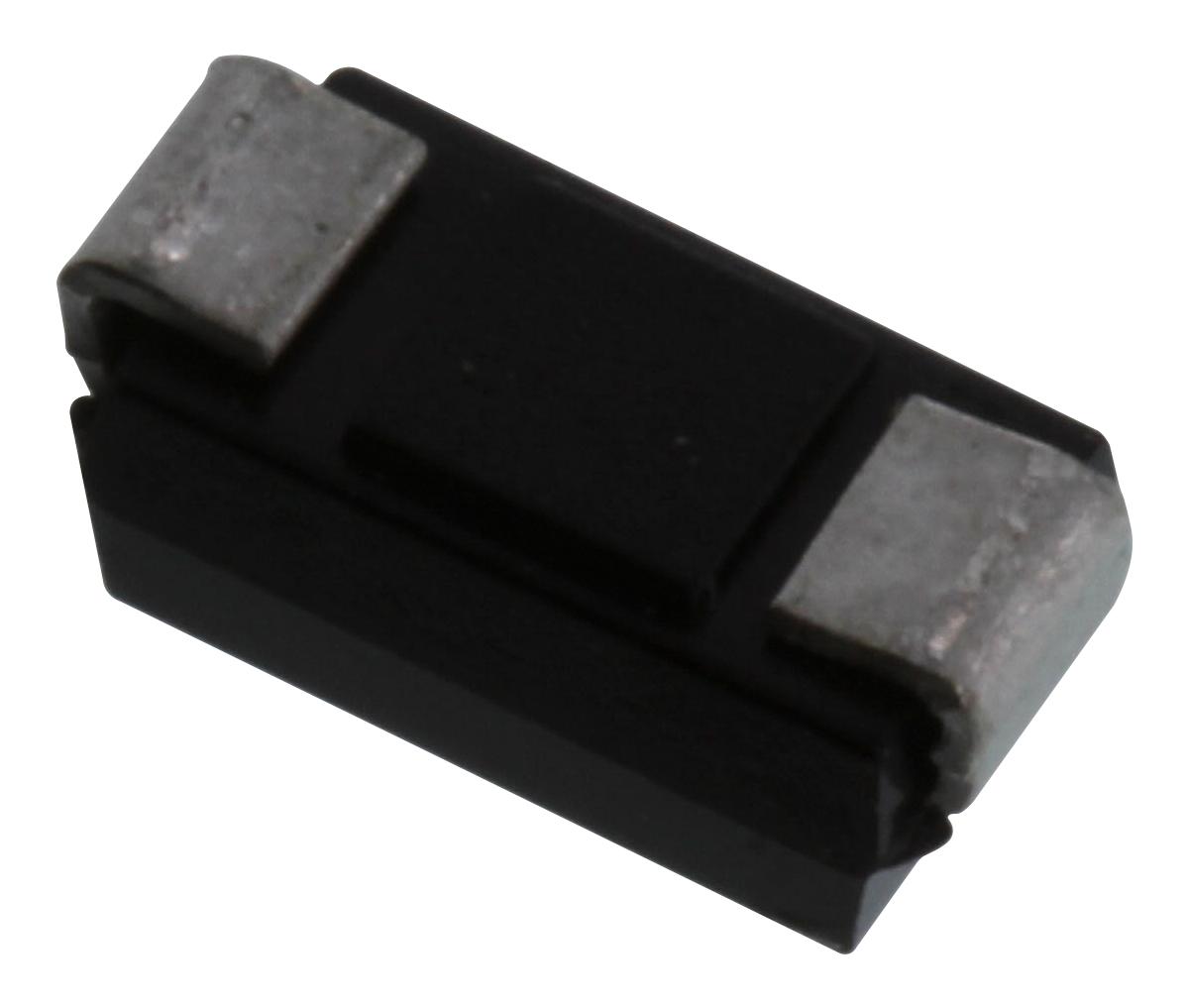

MULTICOMP PRO SS24A Schottky Barrier Rectifier
This surface mount Schottky Barrier Rectifier features a metal-semiconductor junction with guarding and epitaxial construction, offering very low forward voltage drop and high current capability. Suitable for low voltage, high-frequency inverters, free-wheeling, and polarity protection applications, it provides robust performance with a UL 94V-0 flammability-rated plastic case. Capable of handling reverse voltages up to 60V, continuous forward currents of 2A, and operating temperatures from -55°C to +150°C, this rectifier ensures reliable operation in demanding electronic circuits.
MULTICOMP PRO SS24A Schottky Barrier Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.002 ounces, 0.064 grams
- Reverse Voltage: 30 to 60 Volts
- Forward Current: 2 Amperes
- Max. RMS Voltage: 30 to 60 Volts
- Max. DC Blocking Voltage: 30 to 60 Volts
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance: 15°C/W
- Junction Capacitance: 200 pF
- Surge Current (8.3ms): 10A (resistive or inductive load)
- Peak Forward Voltage at 2A DC: data not specified, typical low forward voltage
- Max. Reverse Current at 25°C: data not specified
- UL Flammability Rating: 94V-0
Buy the Buy Multicomp Schottky Barrier Rectifier Part Number SS24A Online
Order the Multicomp Schottky Barrier Rectifier SS24A online today for efficient low voltage, high-frequency applications, and circuit protection solutions. Designed with a molded plastic case rated UL 94V-0, it handles reverse voltages up to 60V and continuous forward currents of 2A, ensuring durability and reliable performance in demanding environments. Ideal for inverters, free-wheeling, and polarity protection, this surface mount rectifier offers low forward voltage drop, high current capacity, and operates from -55°C to +150°C, making it a versatile and essential component for modern electronic circuits.
Get Multicomp SS24A today—built for reliable circuit protection with low forward voltage and high current capability in surface mount design.
