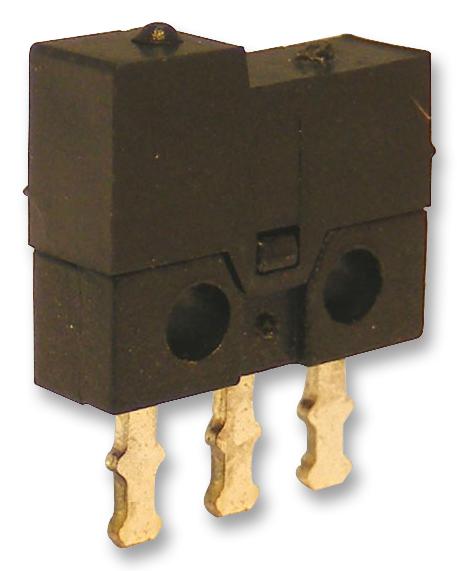

MULTICOMP-PRO SSM002 snap action switch
This snap action switch features a 30V DC rating and a 500mA current capacity, with a maximum initial contact resistance of 100mΩ. It offers a dielectric strength of 500V AC for 1 minute and can operate within a temperature range of -15°C to +70°C. The switch uses high-quality silver alloy contacts, brass terminals with silver plating, and durable housing made of PBT, ensuring reliable performance for industrial applications. Its minimum switch life is 100,000 cycles, with an option for up to 250,000 cycles upon request, making it suitable for demanding automation systems.
MULTICOMP-PRO SSM002 snap action switch Specifications:
- Rating: 30V DC, 500mA
- Max. Initial Contact Resistance: 100mΩ
- Min. Insulation Resistance: 100MQ at 250V DC
- Dielectric Strength: 500V AC for 1 minute
- Temperature Range: -15°C to +70°C
- Max. Operating Force: 50 to 120 gf
- Min. Switch Life: 100,000 cycles, up to 250,000 cycles upon request
- Housing: PBT
- Cover: PBT
- Lever: PBT
- Actuator: POM
- Contacts: Silver alloy
- Terminals: Brass, silver plated
Buy the Multicomp SSM002 – Reliable Snap Action Switch for Industrial Applications
Enhance your automation projects with the reliable Multicomp snap action switch. With a 30V DC rating, 500mA current capacity, and a switch life of 100,000 cycles, it guarantees durability. Its high-quality contacts and insulating housing make it suitable for diverse industrial environments. Easy to install and maintain, this switch is perfect for precise control applications. Purchase online now to enjoy fast delivery and ensure your systems operate smoothly with this dependable component.
Order your Multicomp SeriesSMM002 industrial snap action switch today and ensure dependable operation for your automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO SSM002?
You can click on the BUY or RFQ button to purchase SSM002 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part SSM002?
You can download the SSM002 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of SSM002?
MULTICOMP-PRO
