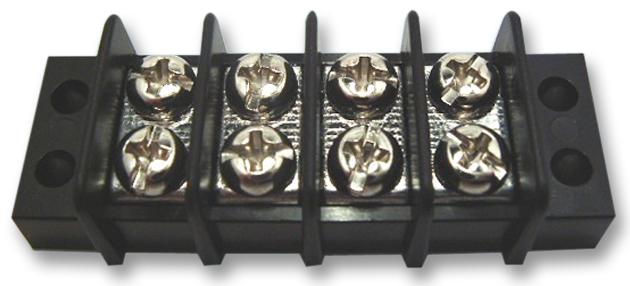

MULTICOMP PRO T644WAY 4-Way Terminal Block
The T64 4-Way Terminal Block is a compact, panel-mount connector with four connections, supporting wire gauges from 12 to 22 AWG. Featuring tin-plated brass contacts and a black polycarbonate insulator, it is rated for 20A and 300V. Designed for vertical screw termination, it offers over 2000 megaohms insulation resistance within a temperature range of -40°C to +105°C, making it ideal for communication and networking applications. Its 9.5mm pitch ensures easy installation in demanding environments, complying with safety standards and maintaining reliable electrical performance.
MULTICOMP PRO T644WAY 4-Way Terminal Block Specifications:
- Current Rating: 20A (300V AC)
- Insulation Voltage: 2,000V AC
- Insulation Resistance: > 2,000MW (500V DC)
- Operating Temperature: -40°C to +105°C
- Wire Range: 12AWG to 22AWG
- Screw Torque: 12 Ib-inch
- Connector Mounting: Panel
- Pitch Spacing: 9.5mm
- Number of Contacts: 4
- Contact Material: Tin-plated brass
- Contact Plating: Tin
- Terminal Type: Screw
- Wire Area Size Max: 12 AWG
- Termination Method: Screw connection
Buy the Multicomp 4WAY – Reliable Terminal Block for Industrial Applications
Purchase the Multicomp 4-Way Terminal Block online today to ensure reliable connections for your electrical and communication projects. Designed with high-quality tin-plated brass contacts and a durable polycarbonate insulator, it supports 20A and 300V ratings, suitable for a wide range of wiring tasks involving 12 to 22 AWG wires. Its vertical screw termination and 9.5mm pitch make installation straightforward in panel mount setups. With excellent insulation resistance and operating temperatures ranging from -40°C to +105°C, this terminal block guarantees safety, durability, and performance in industrial and networking environments.
Order your Multicomp Series T644WAY 4-Way Terminal Block today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO T644WAY?
You can click on the BUY or RFQ button to purchase T644WAY from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part T644WAY?
You can download the T644WAY datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of T644WAY?
MULTICOMP PRO
