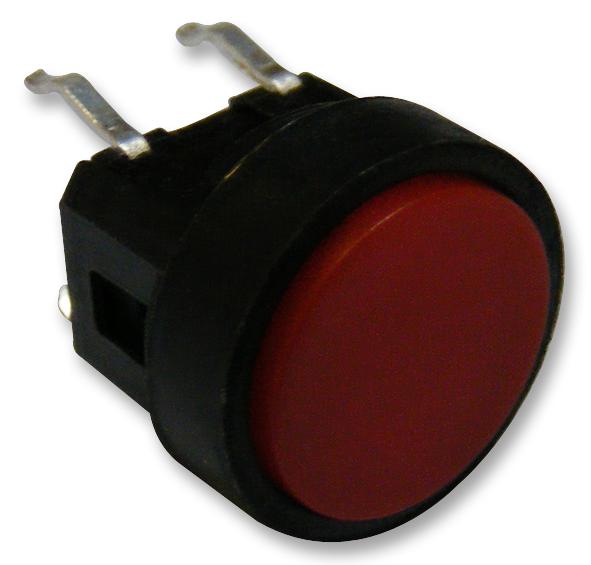

MULTICOMP PRO TS0B23 Tactile Switch
The tactile switch TS0B23 is designed for reliable momentary operation with a current rating of 50mA and a voltage rating of 12V DC. It features high dielectric withstand voltage of 250V AC for 1 minute, low contact resistance of 100mΩ, and insulation resistance of 100MΩ. Operating force is approximately 160gf, with a total travel of 0.25mm. It supports a minimum life of 1,000,000 cycles, with soldering specifications suited for PC mounting at a maximum temperature of 265°C for 5 seconds. Ideal for compact, high-reliability electronic applications.
MULTICOMP PRO TS0B23 Tactile Switch Specifications:
- Circuit: SPST
- Current: 50mA
- Voltage Rating: 12V DC
- Dielectric Withstanding Voltage: 250V AC for 1 minute
- Max. Contact Resistance: 100mΩ (initial)
- Min. Insulation Resistance: 100MΩ
- Operating Force: approximately 160gf
- Total Travel: 0.25mm
- Min. Operating Life: 1,000,000 cycles
- Solder Specifications: 265°C for 5 seconds
- Function: Momentary
- Operating Temperature: +10°C to +160°C
- Mounting: PC Mounting
- Dimensions: approximately 7.6mm x 4.5mm x 7.2mm (millimeters) or 0.3in x 0.18in x 0.28in
- Material: Plastic housing with metal contacts
- Design: Compact, surface-mount suitable for automated assembly
Buy the Multicomp Series Tactile Switch: TS0B23
Enhance your electronic devices with the reliable Multicomp Series TS0B23 tactile switch, perfect for precision, durability, and compact applications. Designed for momentary operation, it features a 12V DC rating, high dielectric withstanding voltage, low contact resistance, and long cycle life. Its compact size makes it ideal for tight spaces in electronic assemblies. Easily soldered with a maximum temperature of 265°C for 5 seconds, this switch provides stable performance under varied operating conditions. Upgrade your projects by purchasing online today for quality and dependability.
Order your Multicomp Series TS0B23 tactile switch today and give your projects the dependable quality they deserve, with high durability and compact design for reliable operation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO TS0B23?
You can click on the BUY or RFQ button to purchase TS0B23 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part TS0B23?
You can download the TS0B23 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of TS0B23?
MULTICOMP PRO
