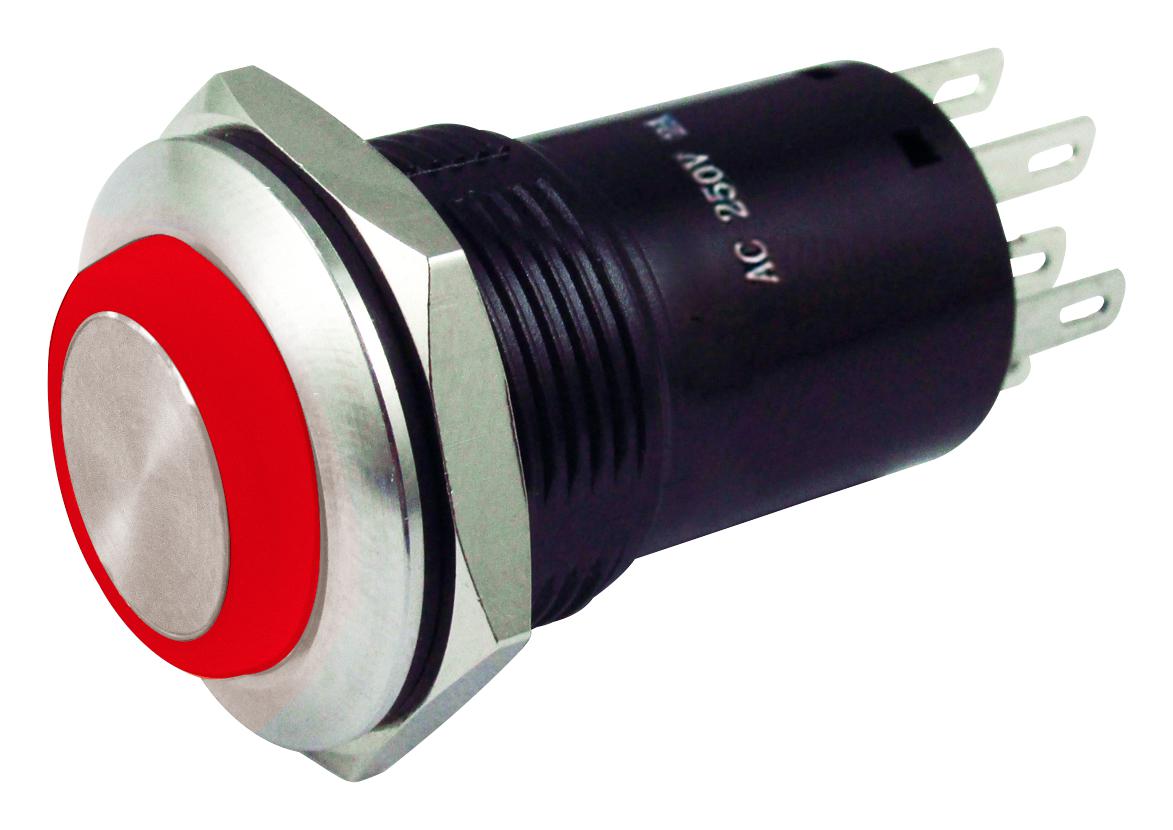

MULTICOMP PRO MC010934 Vandal Resistant Switch
The illuminated vandal resistant switch features a 19mm mounting hole, stainless steel construction, and silver contact blocks for durability. It offers LED indicators in blue, green, or red, with various contact configurations including 1NO + 1NC and 2NO + 2NC. Rated for 250V and 5A, it withstands harsh environments with an IP65 degree of protection. Designed for industrial applications, it supports operating temperatures from -25°C to +50°C, with high dielectric strength, vibration, and shock resistance, ensuring reliable performance in demanding conditions. Suitable for control panels and equipment requiring vandal-resistant, illuminated switching solutions.
MULTICOMP PRO MC010934 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue, Green, Red
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial), 100mΩ Min. (500V DC)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200m/S² operating, 500m/S² damage
- Mechanical Life: 1,000,000 cycles (Momentary), 100,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Dimensions: Millimetres [specify actual values if available]
- Gasket, Hex Nut included
Buy the Multicomp Series Illuminated Vandal Resistant Switch: MC010934
Order the robust, illuminated vandal resistant switch online today. Designed with stainless steel for durability, it features LED indicators in multiple colors, high dielectric strength, and IP65 protection. With options for various contact configurations and a 19mm mounting hole, it is ideal for harsh industrial environments. Enjoy quick delivery and competitive prices on this high-quality contro lswitch, perfect for industrial control panels, security systems, and machinery. Ensure reliable operation and vandal resistance in demanding applications—buy now!
Get Multicomp MC010934 today—built for durability, vandal resistance, and reliable illumination in industrial control panels.
