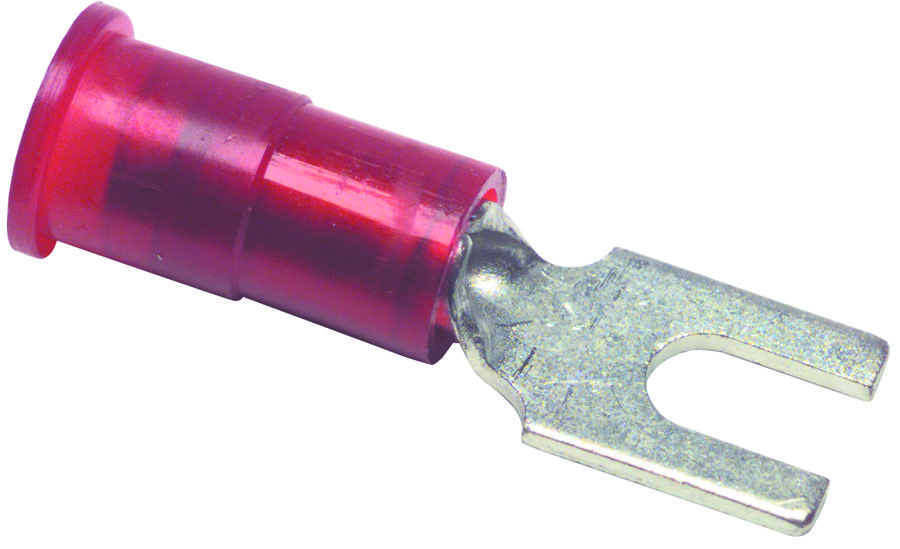

MULTICOMP CBSDY1804 Insulated Electrical Terminals
This product from Multicomp is a set of nylon insulated block fork terminals designed for reliable electrical connections with copper conductors. Rated for 600 V and operating in temperatures from -40°F to 167°F, these terminals feature an electro-tin plated copper construction with UL94V-2 flammability rating. Available in multiple sizes and color-coded for easy identification, they are manufactured with a butted seam, ensuring a secure fit. These connectors are suitable for various electrical applications requiring safety, durability, and efficient performance.
MULTICOMP CBSDY1804 Insulated Electrical Terminals Specifications:
- Material: Electro-tin plated copper with nylon 6/6 sleeve
- Voltage Rating: 600 V
- Flammability: UL94V-2
- Operating Temperature: -40°F to 167°F (-40°C to 75°C)
- Seam: Butted seam
- Color Coding: Yellow, Blue, Red depending on size
- Wire Range: 12—10 AWG for CBS-DY-1006 and CBS-DY-1010, 16—14 AWG for CBS-DY-1406, CBS-DY-1408, CBS-DY-1410, 22—18 AWG for CBS-DY-1804, CBS-DY-1806, CBS-DY-1808, CBS-DY-1810
- Dimensions: Length varies from approximately 0.112 to 0.190 inches depending on size
- Features: Burred free, butted seam, suitable for secure electrical connections
- Certifications: UL Listed
Buy the Multicomp Series Insulated Electrical Terminals: CBSDY1804
Enhance your electrical wiring with our high-quality insulated electrical terminals designed for safety and efficiency. Compatible with various wire sizes from 12 to 18 AWG, these copper terminals are electro-tin plated for corrosion resistance. Rated for 600 V and capable of operating in temperatures from -40°F to 167°F, they feature UL94V-2 flammability compliance and a butted seam for secure connections. Color-coded for quick identification, they are perfect for professional electricians and DIY enthusiasts seeking dependable connector solutions.
Order your Multicomp Series CBSDY1804 insulated electrical terminal today and ensure safe, reliable connections for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP CBSDY1804?
You can click on the BUY or RFQ button to purchase CBSDY1804 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CBSDY1804?
You can download the CBSDY1804 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CBSDY1804?
MULTICOMP
