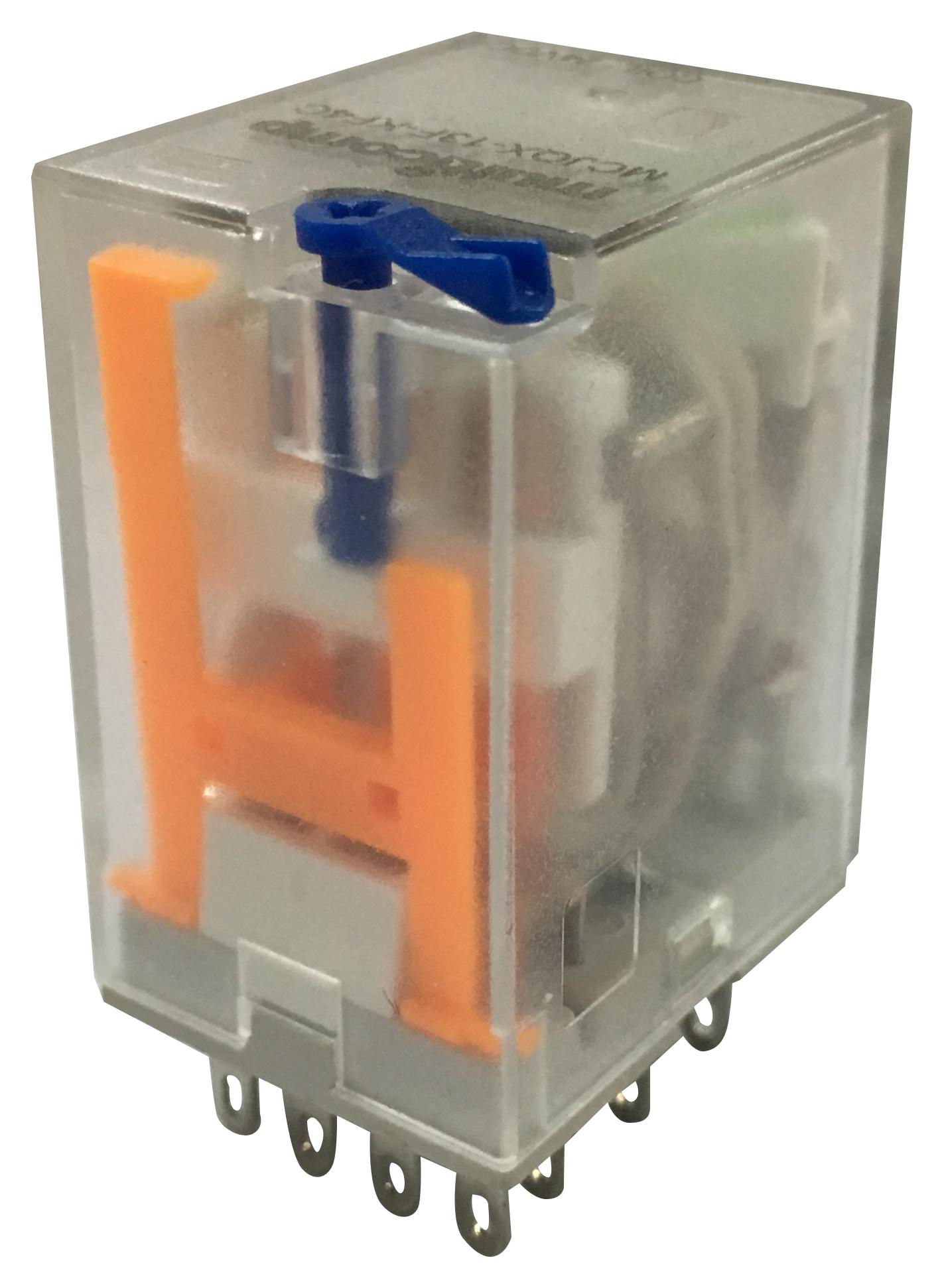

MULTICOMP MCJQX13FKF4C24VAC Power Relay
This high-performance power relay features a compact design with 2 or 4 change contact form options, supporting resistive loads up to 10A at 250V AC and switching motor loads up to 1/3HP at 240V AC. It is rated for resistive (AC-1) applications, with quick operating and release times under 20ms, making it suitable for automation and control systems. Its dual contact design provides reliable switching for various electrical and mechanical loads, with insulation resistance of 2500MQ, and withstands temperature ranges from -55°C to +70°C, offering durability in demanding environments.
MULTICOMP MCJQX13FKF4C24VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/250V DC, 30V DC
- Motor Load (AC-15): 1/3HP at 240V AC, 1/2HP at 240V AC
- Contact Operating Power: 2500VA, 300W
- Contact Resistance: <50mQ
- Material: Ag alloy
- Electrical Life: > 10^6 Cycles (1800 Ops/h)
- Mechanical Life: 2×10^7 Cycles (18000 Ops/h)
- Operate Voltage: <75% Rated at 25°C
- Release Voltage: 210-230% Rated at 25°C
- Max. Allowed Voltage: 110% Rated
- Insulation Resistance: 2500MQ at 500V DC
- Coil Power Dissipation: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Dielectric Strength: 1000V AC/1 min between contacts, 2000V AC/1 min between contact and coil
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G, Vibration Resistance: 10-55Hz
- Installation: Plug-in Terminals / PCB Terminal
- Weight: 35g
Buy the Buy multicomp Power Relay Part Number MCJQX13FKF4C24VAC Online
Enhance your electrical systems with this reliable power relay, supporting 2 or 4 change contacts, rated for 10A at 250V AC. Its fast switching, rugged construction, and wide temperature tolerance make it ideal for industrial automation, control panels, and motor switching. Easy to install with plug-in or PCB terminals, it guarantees long-lasting performance with high electrical and mechanical life. Purchase online today to ensure seamless control and dependable operation in your critical applications.
Order your multicomp Power Relay MCJQX13FKF4C24VAC today and ensure reliable switching capabilities for your automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKF4C24VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FKF4C24VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKF4C24VAC?
You can download the MCJQX13FKF4C24VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKF4C24VAC?
MULTICOMP
