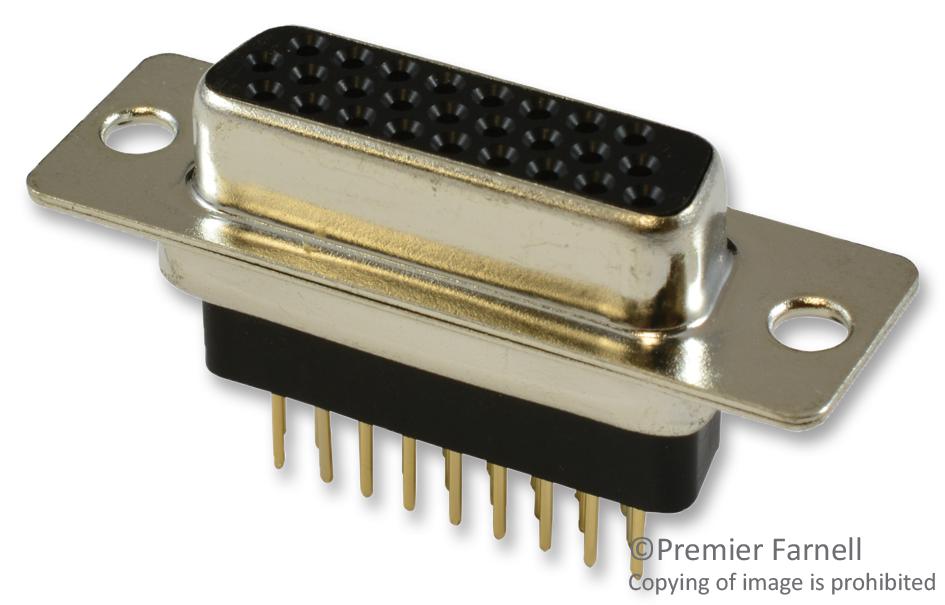

MULTICOMP SPC15300 High Density D-Sub Socket
High-density 26-way D-Sub socket designed for reliable data and signal transmission in electronic assemblies. Made from RoHS-compliant steel with tin plating, it features a PBT + 30% fibre glass insulator and brass, gold-plated contacts for optimal conductivity. Rated for 5A current and 500V AC voltage withstand for 1 minute, it operates within temperatures from -60°C to +100°C. The socket's panel cutout measures 16.65mm with precise dimensions ensuring a secure fit in various electronic panels. Suitable for high-density signal connections, this D-Sub connector ensures durability and performance in demanding environments.
MULTICOMP SPC15300 High Density D-Sub Socket Specifications:
- Number of contacts: 26
- Current rating: 5A
- Voltage: 500V AC for 1 minute
- Contact resistance: 15mΩ
- Insulation resistance: 1,000MΩ
- Operating temperature: -60°C to +100°C
- Shell Material: Steel, tin plated
- Insulator Material: PBT + 30% fibre glass, black
- Contact Material: Brass, stamped-pin, gold-plated
- Panel cutout dimension: 16.65mm
- RoHS compliant
- Dimensions: Millimetres, approximate size for installation
- Receptacle type: 26Way high density D-Sub socket
- Maximum contact resistance: 15mΩ
- Min. insulation resistance: 1,000MΩ
- Voltage rating: 500V AC
- Operating temperature range: -60°C to +100°C
- Connector gender: Receptacle
- Pin configuration: 26Way
- Suitable applications: Data, signal, electronic device connections
Buy the Multicomp Series High Density D-Sub Socket: SPC15300
Enhance your electronic assemblies with the reliable and durable high-density 26-way D-Sub socket from Multicomp. Crafted from RoHS-compliant steel with tin plating, it features brass, gold-plated contacts for superior conductivity. Rated for 5A and 500V AC, it operates efficiently between -60°C to +100°C, ensuring performance in harsh environments. Its precise dimensions and screw-receive receptacle design guarantee a secure fit and dependable signal transmission, making it ideal for complex electronic and signal connection applications. Easy to install and built for durability, order yours online today for top-quality performance.
Order your Multicomp SeriesHigh Density D-Sub Socket SPC15300 today and secure reliable electronic connections for demanding projects.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15300?
You can click on the BUY or RFQ button to purchase SPC15300 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15300?
You can download the SPC15300 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15300?
MULTICOMP
