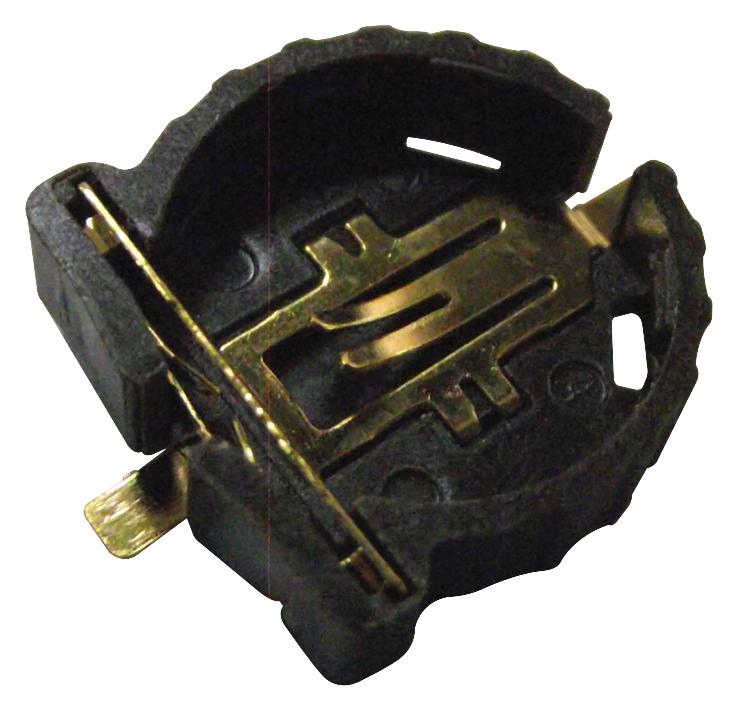

MULTICOMP CH2911220LF Battery Holder
The CH2911220LF is a PCB mount battery holder designed for surface-mount technology, featuring a compact 12 mm size, made from PPS housing, with phosphor bronze contacts that are gold plated over nickel. It operates effectively within temperatures ranging from -55°C to 105°C, providing reliable electrical contact with maximum contact resistance of 30mΩ and insulation resistance of at least 1,000 MΩ. This component is RoHS compliant, ensuring environmentally friendly and safe operation suited for various electronic applications requiring secure battery connections.
MULTICOMP CH2911220LF Battery Holder Specifications:
- Material: PPS housing
- Contact Material: Phosphor bronze, gold plated over nickel
- Maximum contact resistance: 30mΩ
- Minimum insulation resistance: 1,000 MΩ
- Dielectric voltage: 500 V one sec
- Operating temperature: -55°C to 105°C
- Dimensions: 40.3 mm length, 40.2 mm width, 3° angle with +0.1 tolerance
- RoHS compliant
- General tolerance: Millimetres
- Section: A-A PCB Mounting Layout
- Housing Thickness: 0.2 mm
- Part Number: CH2911220LF
Buy the Famelec CH2911220LF – Reliable Battery Holder for Industrial Applications
Purchase the Famelec battery holder online today for your electronic projects. This 12 mm PCB mount holder is designed for reliability and efficiency, providing a secure electrical connection with gold-plated contacts and operating across a wide temperature range from -55°C to 105°C. Made from durable PPS material and RoHS compliant, it ensures safety and environmental standards. Easy to install on PCB with precise dimensions and high insulation resistance, making it ideal for portable and stationary electronic devices requiring dependable power sources.
Get Famelec CH2911220LF today—built for precision and long-lasting durability with secure surface-mount battery connections.
Frequently Asked Questions
Where can I buy MULTICOMP CH2911220LF?
You can click on the BUY or RFQ button to purchase CH2911220LF from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part CH2911220LF?
You can download the CH2911220LF datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of CH2911220LF?
MULTICOMP
