MULTICOMP EBKA14B Eurostyle terminal block

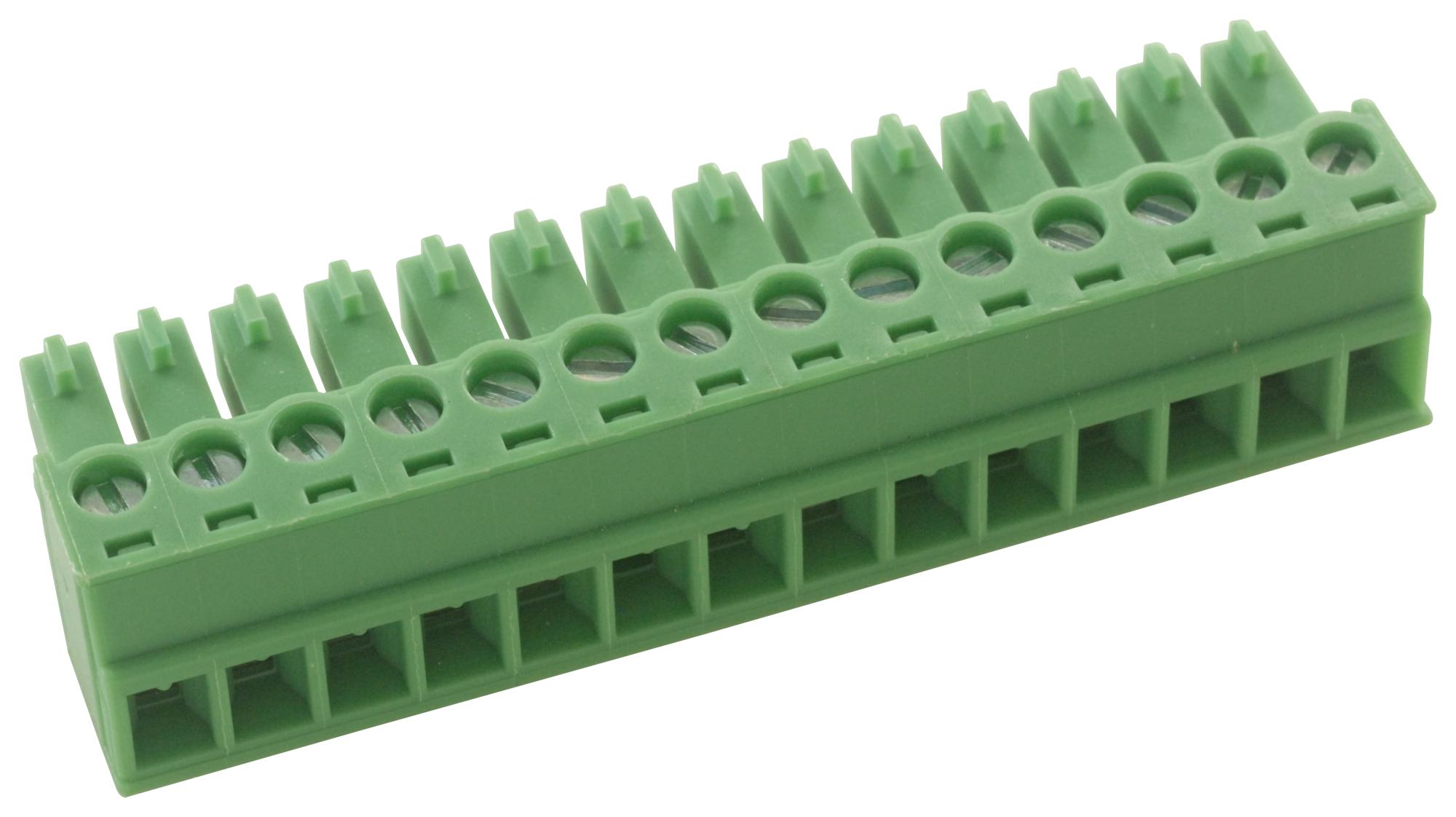

The EBK-14-B is a 14-position Eurostyle™ terminal block with a durable tin-plated brass housing and a green nylon insulator, designed for reliable electrical connections. It features a stainless steel wire guard and zinc-plated steel screw for enhanced safety and durability. Capable of withstanding dielectric voltage up to 1500VAC for 1 minute, it supports soldering at 230°C ±10°C for about 3 seconds. With an insulation resistance of 5,000 MΩ @ 1000V and operating within -55°C to 105°C, this terminal block ensures high performance in industrial wiring and control systems.
MULTICOMP EBKA14B Eurostyle terminal block Specifications:
- Material: Insulator Nylon, Metal Housing Brass, Stainless Steel Wire Guard, Zinc Plated Steel Screw
- Electrical: Operation Voltage 250V AC Max., Current Rating 15A Max. per Pole, Insulation Resistance 5,000 MΩ @ 1000V
- Dielectric Withstanding Voltage 1,500V AC for 1 minute, Soldering Temperature 230°C ±10°C for 3 seconds
- Environmental: Operating Temperature -55°C to +105°C, Torque Max. 5 kg.cm
- Dimensions: Length varies with options, pitch options include 0.138 [3.50], 0.150 [3.81], 0.276 [7.00], 0.300 [7.62], Number of poles range from 2 to 24
- Certifications: RoHS Compliant
Buy the Multicomp Series Eurostyle Terminal Block: EBK-14-B
Enhance your industrial wiring with the robust Eurostyle terminal block from Multicomp. Designed for high durability and safety, it features a tin-plated brass housing, nylon insulator, stainless steel guard, and zinc-plated screw. With a dielectric voltage rating of 1500VAC for 1 minute, insulation resistance of 5000 MΩ, and compatibility with 12-24 AWG wires, it withstands -55°C to 105°C temperatures. Perfect for control and industrial applications, order now to ensure dependable electrical connections.
Order your Multicomp Series Eurostyle terminal block EBK-14-B today and secure reliable, industrial-grade connections for your control panels.
Frequently Asked Questions
Where can I buy MULTICOMP EBKA14B?
You can click on the BUY or RFQ button to purchase EBKA14B from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part EBKA14B?
You can download the EBKA14B datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of EBKA14B?
MULTICOMP
