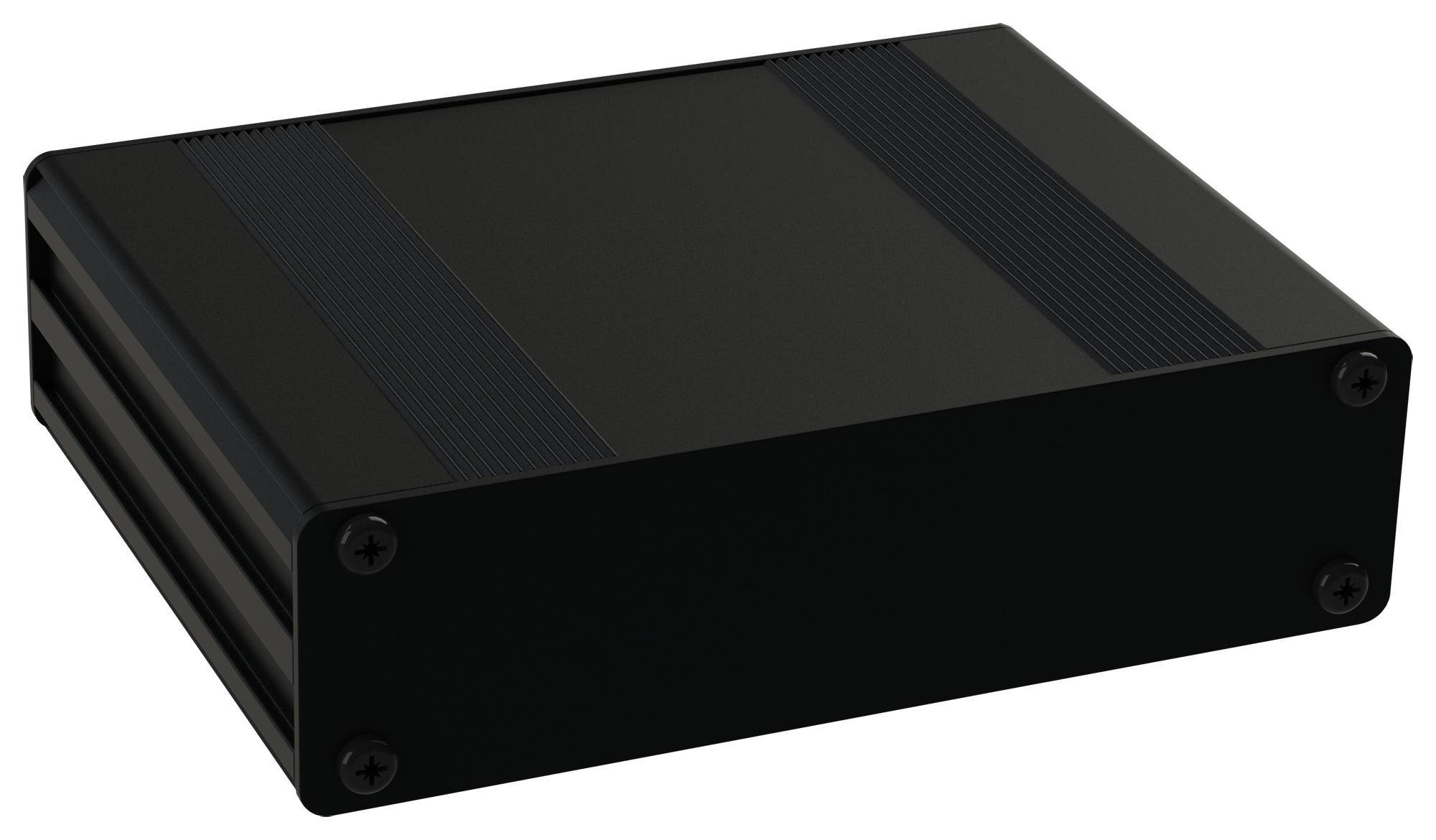

MULTICOMP MC002220 Aluminium Enclosure
The aluminium multicomp heat sink case offers a durable and lightweight enclosure for electronic components, measuring 220mm x 108.5mm x 30mm. Featuring black anodized aluminum with a 5um finish, it provides corrosion resistance and a sleek appearance suitable for space-constrained applications. The case includes dovetail slots for mounting brackets, optional waterproof gaskets, and grooved sides for aesthetic appeal. It supports circuit boards up to 18mm or 20mm high, with threaded screw ports for secure fastening. Ideal for electronic projects requiring robust, corrosion-resistant enclosures with customizable options.
MULTICOMP MC002220 Aluminium Enclosure Specifications:
- Material: Aluminium 6063 T6 (HE9)
- Finish: Black anodized 5um thickness to BS 1615
- Length Tolerance: Nominal length -0mm / +1mm
- Weight: 1.38kg/m
- Perimeter: 316mm outside, 306mm inside
- Screw ports: Nominal diameter 2.7mm, suitable for No.4 self-tapping screws, can be threaded M3 with thread-rolling tap
- Maximum components height: 18mm or 20mm depending on orientation
- Supports circuit boards: 100mm x 80mm, 100mm x 160mm, 100mm x 220mm
- Finish: Black anodized with optional waterproof gaskets
- External dimensions: 220mm x 108.5mm x 30mm
- Cut ends: Not anodized
- Features: dovetail slots for mounting, grooved sides for aesthetics, shallow recess for labels
Buy the Aluminium Series Multicomp Enclosure: MC002220
Secure your electronics with our Aluminium Enclosure, MC002220. Crafted from durable aluminium with black anodized finish, it offers corrosion resistance and a sleek look. Features dovetail slots for easy mounting, optional waterproof gaskets for outdoor use, and grooved sides for aesthetic enhancement. Supports circuit boards up to 20mm tall, with threaded screw ports for secure fastening. Perfect for industrial, automation, or hobbyist projects requiring lightweight, robust, and customizable enclosures. Order online today for reliable performance.
Buy Aluminium Series Multicomp enclosure MC002220 now and experience durable, corrosion-resistant protection for your electronic projects with customizable mounting options.
Frequently Asked Questions
Where can I buy MULTICOMP MC002220?
You can click on the BUY or RFQ button to purchase MC002220 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC002220?
You can download the MC002220 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC002220?
MULTICOMP
