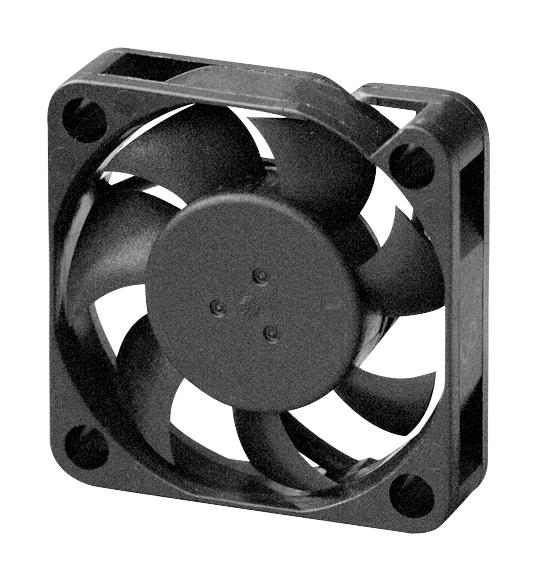

MULTICOMP MC002687 DC Axial Fan
The 40mm multicomp DC axial fan is a compact, high-performance cooling solution designed with a Vapo bearing system and a thermoplastic PBT frame and blades for durability. Operating at 12V DC with a rated current of 87mA and a power consumption of 1.05W, it delivers an airflow of 9.9 CFM and a static pressure of 0.25 Inch-H₂O. With a noise level of 31.4dB(A) and an expected life of 60,000 hours, it features automatic restart and polarity protection, making it ideal for electronics cooling and ventilation applications.
MULTICOMP MC002687 DC Axial Fan Specifications:
- Rated Voltage: 12V DC
- Rated Current: 87mA / Max. 101mA
- Rated Power Consumption: 1.05W / Max. 1.22W
- Operating Voltage Range: 4.5 to 13.8V DC
- Starting Voltage: 4.5V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Motor Design: Single Phase, 4-Pole Brushless DC Motor
- Bearing System: Vapo Bearing
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise
- Mounting Holes: 4.3mm Diameter, 4 holes
- Weight: 15.6g
- Rated Speed: 8,500RPM +15%
- Air Flow: 9.9CFM
- Static Pressure: 0.25 Inch-H₂O
- Acoustic Noise: 31.4dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours @ 40°C, 65% Humidity, 90% CL
- Polarity Protection and Automatic Restart features included
Buy the Multicomp Series Axial Cooling Fan: 40mm 12V 9.9CFM
Enhance your cooling solutions with the compact and efficient 40mm multicomp DC axial fan. Designed with durable thermoplastic blades and a Vapo bearing system, it offers low noise operation at just 31.4dB(A). Suitable for electronics cooling, it operates reliably at 12V DC with a rated airflow of 9.9 CFM and a static pressure of 0.25 Inch-H₂O. With a lifespan of 60,000 hours, automatic restart, and polarity protection, it ensures effective and long-lasting ventilation in various applications. Order online today for precise cooling performance.
Buy Multicomp 40mm axial fan now and experience unmatched reliability and high-performance cooling for electronic devices.
