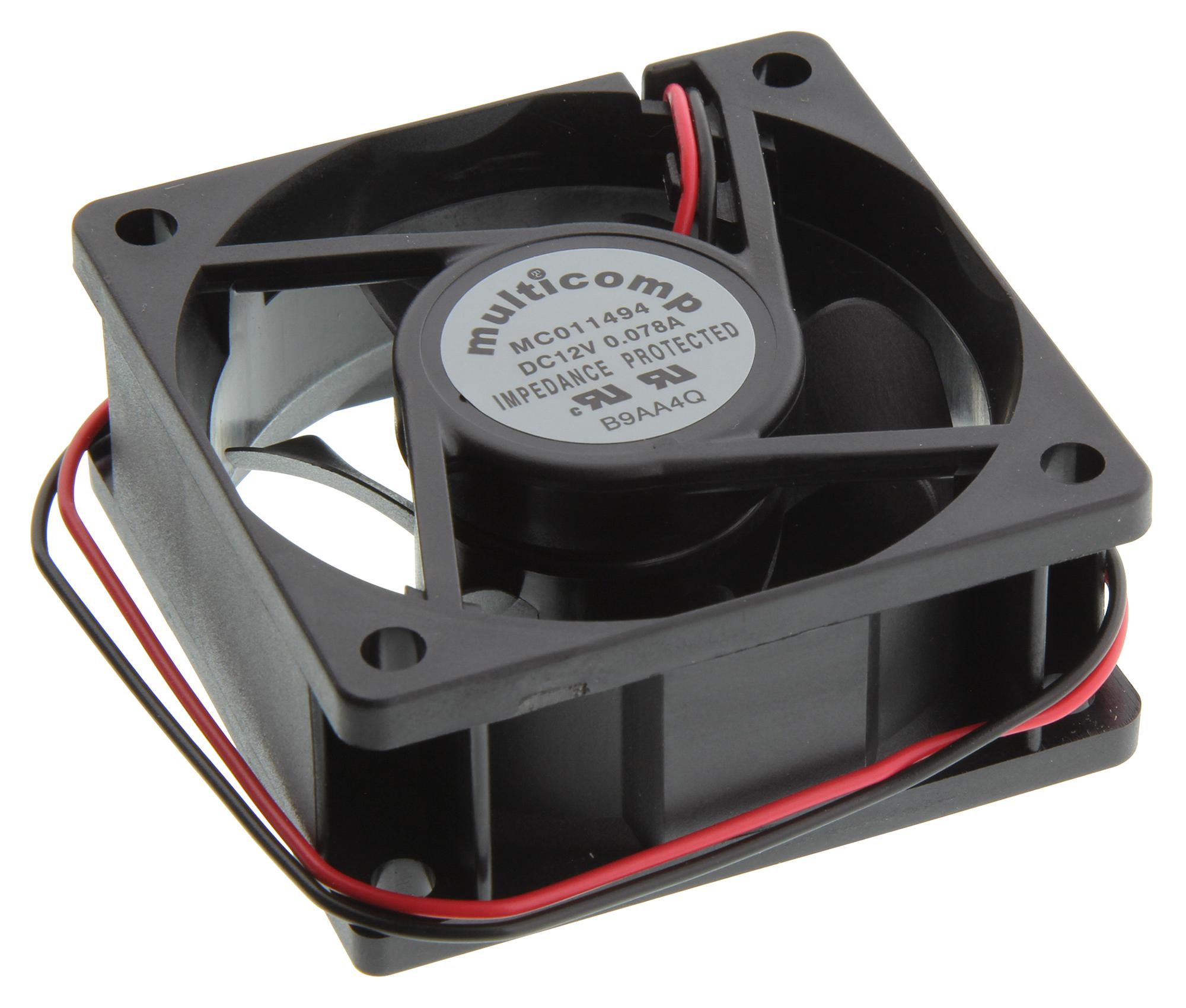

MULTICOMP MC011494 Axial DC Fan
This high-quality axial DC fan with ball bearing system offers reliable cooling performance for electronic devices and equipment. Designed with a 60mm x 60mm x 25mm thermoplastic PBT frame and blades of UL94V-0 material, it features a brushless DC motor with 2 phases and 4 poles for smooth operation. Suitable for 12V DC applications, it delivers a rated speed of 3800 RPM ±15%, airflow of 19.3 CFM, static pressure of 0.15 Inch-H2O, and operates efficiently within -10°C to +70°C temperature range. It includes mounting holes, polarity protection, and automatic restart functionality for enhanced durability and safety, ideal for industrial or electronic cooling systems.
MULTICOMP MC011494 Axial DC Fan Specifications:
- Dimensions: 60mm x 60mm x 25mm
- Motor Design: 2 phases, 4-poles brushless DC motor
- Bearing System: Precision ball bearing
- Frame Material: Thermoplastic PBT of UL94V-0
- Fan Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter-clockwise viewed from front
- Mounting Holes: Diameter 4.3mm in 8 positions
- Rated Voltage: 12V DC
- Rated Power Consumption: 1.13W / Max. 1.32W
- Rated Speed: 3800 RPM ±15%
- Air Flow: 19.3 CFM
- Static Pressure: 0.15 Inch-H2O
- Acoustic Noise: 30 dB(A)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +80°C
- Polarity Protection: Yes
- Automatic Restart: Yes
- Insulation Resistance: 10MQ @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Protection Class: UL Class A
- Lifespan: 70,000 hours at 40°C, 65% humidity
Buy the Buy multicomp Axial DC Fan Part Number MC011494 Online
Purchase the multicomp axial DC fan MC011494 online and enjoy top-tier cooling performance for your electronic devices. This 60mm x 60mm x 25mm fan features a ball bearing system, brushless motor, and UL94V-0 thermoplastic materials for durability and safety. Rated at 12V DC, it operates at 3800 RPM, providing 19.3 CFM airflow and static pressure of 0.15 Inch-H2O. Suitable for industrial and electronic cooling, it features polarity protection, automatic restart, and a lifespan of 70,000 hours, ensuring long-term reliable operation.
Buy multicomp MC011494 now and experience reliable cooling with high-quality ball bearing DC fan that ensures optimal performance and durability.
