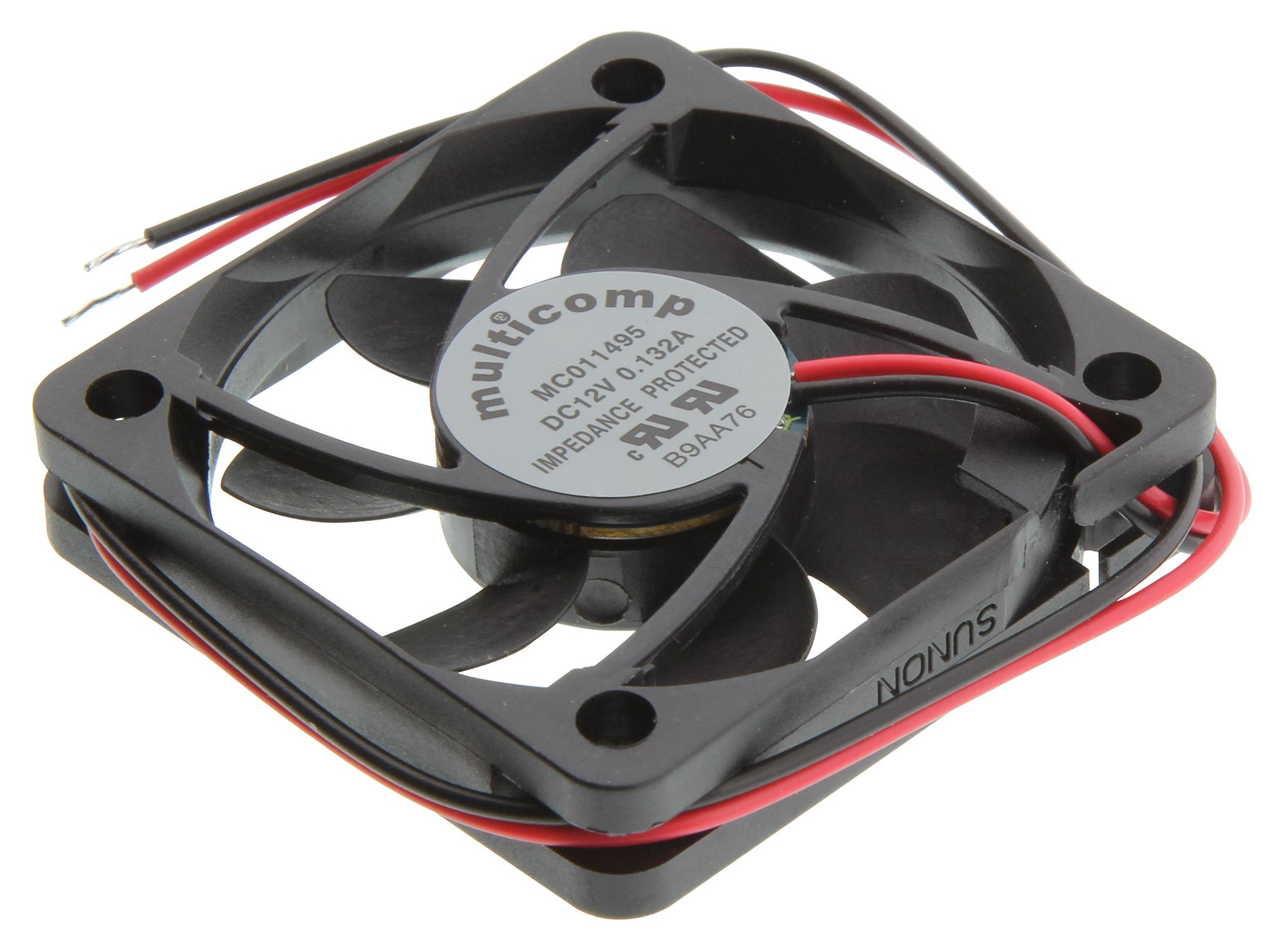

MULTICOMP MC011495 Cooling Fan
This axial DC fan features a 50mm x 50mm x 10mm size with sleeve bearings and a brushless 2-phase, 4-pole motor, ensuring reliable performance for cooling electronic equipment. Constructed from UL94V-0-rated thermoplastic PBT, it offers efficient airflow with low noise levels of 23 to 30.7 dB(A). With operating speeds of 4700 to 5700 RPM and static pressures up to 0.14 Inch-H2O, it is designed for temperature ranges from -10°C to +70°C. Its safety certifications include UL, CUR, TUV, CE, making it suitable for industrial and electronic cooling applications.
MULTICOMP MC011495 Cooling Fan Specifications:
- Dimensions: 50mm x 50mm x 10mm
- Motor Design: 2 phases, 4-poles, brushless DC motor
- Bearing System: Lubricated sleeve bearing
- Frame Material: Thermoplastic PBT UL94V-0
- Fan Blade Material: Thermoplastic PBT UL94V-0
- Rated Voltage: 12V DC
- Rated Current: 75mA / Max. 87mA / 90mA / Max. 104mA
- Rated Power: 0.9W / Max. 1.05W / 1.08W / Max. 1.25W
- Operating Voltage Range: 6V DC to 13.8V DC
- Starting Voltage: 6V DC
- Operating Temperature Range: -10°C to +70°C
- Speed: 4700 RPM +15% / 5700 RPM +15%
- Air Flow: 11 CFM / 13 CFM
- Static Pressure: 0.11 Inch-H2O / 0.14 Inch-H2O
- Noise Level: 23 dB(A) / 30.7 dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 35,000 hours at 40°C, 65% humidity
- Protection: Automatic Restart, Polarity Protection
- Certifications: UL, CUR, TUV, CE
Buy the Multicomp MC011495 – Reliable Cooling Fan for Industrial Applications
Purchase the Multicomp axial cooling fan online for reliable performance in industrial and electronic cooling systems. With UL certification and a durable sleeve bearing system, this 50mm fan ensures consistent airflow and low noise operation. Its high RPM and static pressure make it ideal for maintaining optimal temperatures in sensitive electronic devices. Easy to install with mounting holes, it offers long-lasting performance up to 35,000 hours. Buy online today for quick delivery and dependable thermal management solutions.
Get Multicomp MC011495 today—built for durability and optimal electronic cooling performance.
Frequently Asked Questions
Where can I buy MULTICOMP MC011495?
You can click on the BUY or RFQ button to purchase MC011495 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC011495?
You can download the MC011495 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC011495?
MULTICOMP
