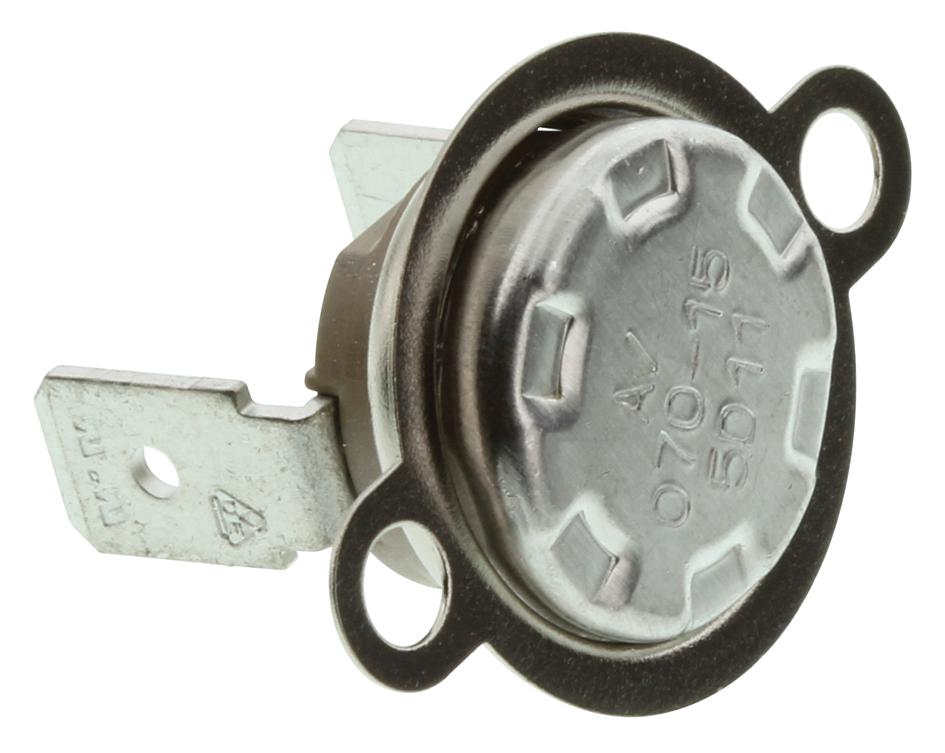

MULTICOMP T23B070ASR215 Thermal Switch
The thermal switch is a reliable control component designed for temperature regulation in various electronic and industrial applications. It features a contact rating of 250V AC / 16A, easy-to-assemble quick connect terminals, and a temperature actuating range from -55°C to +70°C. Constructed from durable thermoplastic, it endures over 100,000 electrical operations. Its compact dimensions include an external length of 16mm, width of 24mm, and depth of 17mm, making it suitable for tight installation spaces while ensuring long-lasting performance in temperature-sensitive environments.
MULTICOMP T23B070ASR215 Thermal Switch Specifications:
- Contact Rating: 250V AC / 16A, 240V AC /15A
- Number of Pins: 2
- Sensor Housing: Plastic
- Sensor Terminals: Quick Connect
- Actuating Temperature: -55°C to +70°C
- Contact Current Max.: 10A
- Contact Voltage Max.: 250V AC
- External Depth: 17mm
- External Length / Height: 16mm
- External Width: 24mm
- Fixing Centres: 16mm
- Material: Thermoplastic
- Number of Electrical Operations: 100,000
- Switch Operation: Normally Open
- Circuit Resistance: 50mΩ Max.
- Insulation Resistance: 50MΩ min. at DC 500V
- Dielectric Strength: AC 1,000V for One Minute or AC 1,800V for One Second
Buy the Multicomp Series Thermal Switch: T23B070ASR215
Order the thermal switch T23B070ASR215 online today and ensure your electronic or industrial project benefits from precise temperature regulation. This durable component offers a temperature range from -55°C to +70°C, supports 250V AC/16A, and withstands over 100,000 electrical operations. Its compact size, quick connect terminals, and thermoplastic housing make installation straightforward and reliable, suitable for demanding environments where long-term performance and safety are essential.
Buy Multicomp T23B070ASR215 now and experience unmatched reliability and performance in temperature control solutions.
