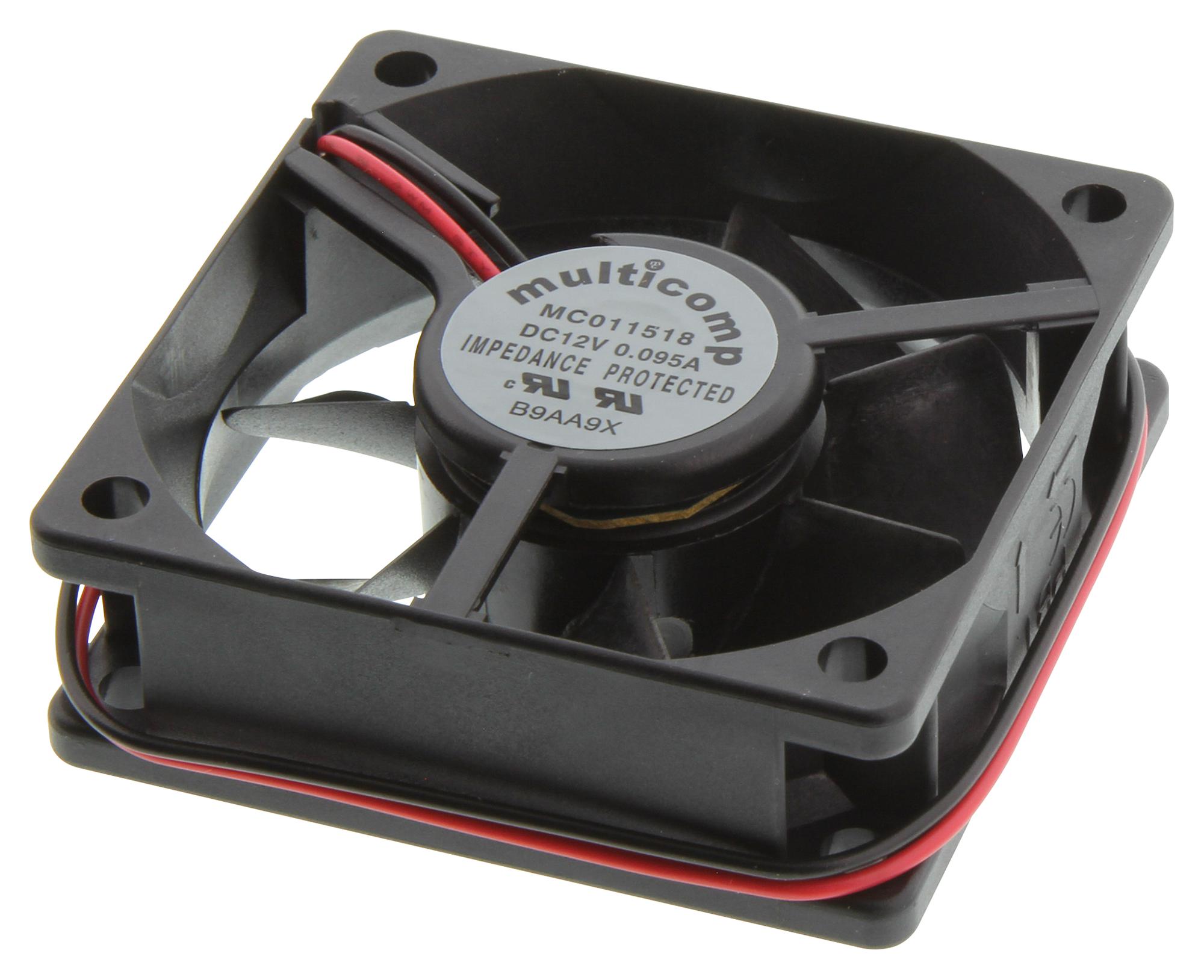

MULTICOMP MC011518 Axial Fan
This axial DC fan features a 60mm x 60mm x 20mm size with a ball bearing system, ideal for reliable cooling in electronic devices. It operates at 12V DC with a rated speed of 3700 RPM and airflow capacity of 19 CFM. Made of UL94V-0 thermoplastic, it includes mounting holes and safety features like polarity protection. Its compact design and high efficiency make it suitable for various industrial and electronic cooling applications, ensuring long life expectancy of 70,000 hours at optimal conditions.
MULTICOMP MC011518 Axial Fan Specifications:
- Motor Design: 2 phases, 4-poles Brushless DC motor
- Bearing System: Precision ball bearing system
- Dimensions: 60mm x 60mm x 20mm
- Materials of Frame: Thermoplastic PBT of UL94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter-Clockwise viewed from front of fan blade
- Mounting Holes: Diameter 4.3mm in 8 Holes
- Weight: 152g
- Rated Voltage: 12V DC
- Rated Current: 95mA / Max. 110mA
- Rated Power Consumption: 1.14W / Max. 1.32W
- Operating Voltage Range: 6V DC to 13.8V DC
- Starting Voltage: 6V DC
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Rated Speed: 3700 RPM +15%
- Air Flow: 19 CFM
- Static Pressure: 20.14 Inch-H20
- Acoustic Noise: 29 dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 70,000 hours
- Protection: Automatic Restart, Polarity Protection
Buy the Akasa Series Axial Fan: 60mm x 60mm x 20mm - MC011518
Purchase the multicomp axial fan MC011518 online today to enjoy reliable performance, efficient cooling, and durable design. Ideal for electronics and industrial applications, this 60mm x 60mm x 20mm fan operates at 12V DC with a high RPM of 3700 and airflow of 19 CFM. Its UL94V-0 thermoplastic housing ensures safety and durability, while automatic restart and polarity protection provide added reliability. Order now for fast delivery and enhance your cooling solutions with top-quality components.
Buy multicomp axial DC fan MC011518 now and experience unmatched reliability, efficient cooling, and long-lasting performance for electronic projects.
