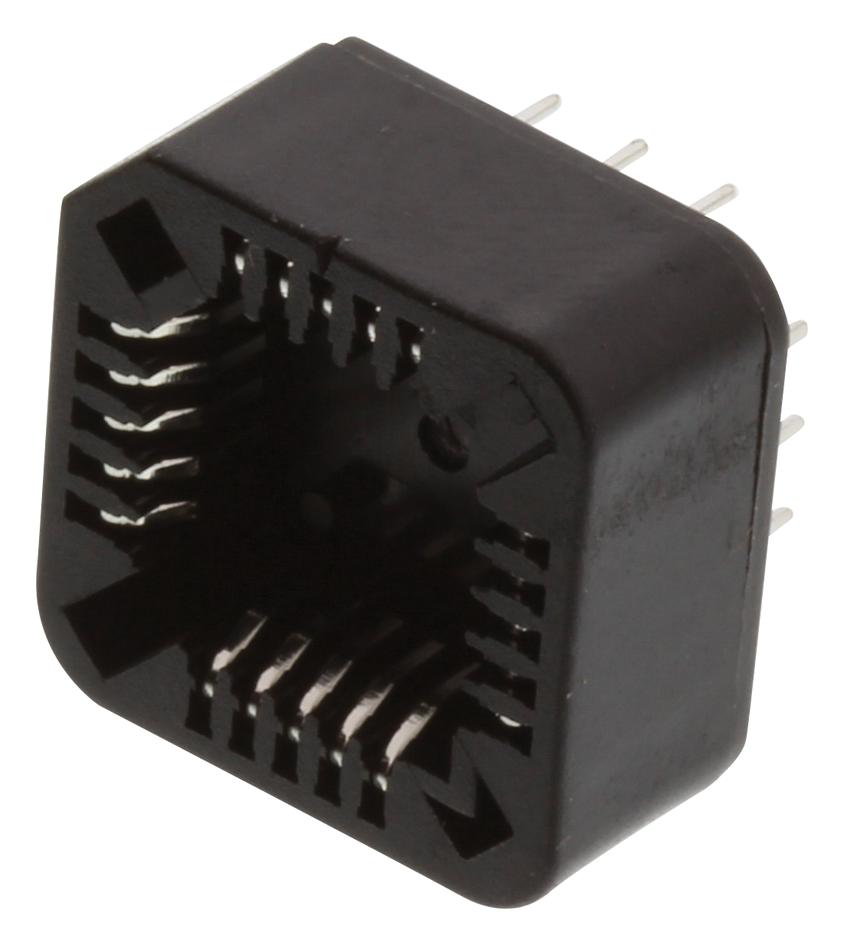

MULTICOMP MC20PLCC PLCC Socket
The MC-20PLCC is a 20-way, 2.54mm pitch through-hole PLCC socket featuring tin-over-copper plated phosphor bronze contacts and a PPS plus glass-reinforced insulator. It is rated for 1A current at 250VAC, with a maximum contact resistance of 30 milliohms and a minimum insulation resistance of 100 megaohms. The socket operates within a temperature range of -55°C to +105°C and is suitable for use in communications and networking applications. Multicomp products are highly rated, with a 4.6 out of 5-star customer rating, and come with a 12-month limited warranty.
MULTICOMP MC20PLCC PLCC Socket Specifications:
- Material: Insulator - PPS, glass reinforced
- Contacts: Phosphor bronze
- Plating: Tin over copper
- Operating Voltage: 250V AC
- Current Rating: 1A
- Contact Resistance: 30mΩ
- Insulation Resistance: 1,000MQ
- Dielectric Withstanding Voltage: 500V AC for 1 min
- Temperature Range: -55°C to +105°C
- Lead Free: Yes
- Soldering Temperature: 235°C for 5s
- Dimensions (approximate): 0.61 inches (15.5 mm) for 20 positions
- Mounting Style: Thru-hole
Buy the Multicomp Series PLCC Socket: MC20PLCC
Enhance your electronic assembly with the high-quality Multicomp Series MC20PLCC socket, designed for reliable connection in networking and communication devices. Featuring phosphor bronze contacts and a glass-reinforced insulator, this 20-pin through-hole socket supports 1A at 250VAC, ensuring efficient and dependable performance in industrial, embedded, or communication applications. Its operating temperature range of -55°C to +105°C makes it suitable for various environments. Purchase online today for fast delivery and professional-grade connectors that guarantee your project's success.
Order your Multicomp Series MC20PLCC socket today and ensure reliable connections in your electronic projects with professional-grade quality and durability.
