MULTICOMP MC35701331123 SIP Reed Relay
The multi-purpose SIP reed relay is a compact 1 Form A switch designed for low-cost switching solutions, offering reliable performance with a maximum switching power of 10W and a switching voltage up to 150V DC. It features an initial contact resistance of 200mΩ, operate time of 0.35ms, and release time of 0.2ms. Suitable for a wide temperature range from -40°C to +85°C, it includes options with internal diodes for suppression. The relay is ideal for industrial automation, telecommunications, and electronic control applications requiring fast switching and durability.
MULTICOMP MC35701331123 SIP Reed Relay Specifications:
- Contact Resistance (Initial): 200mΩ
- Operate Time: 0.35ms (typical) at nominal voltage
- Release Time: 0.2ms
- Switching Power: 10W
- Switching Voltage (Max): 150V DC
- Switching Current (Max): 0.5A
- Coil Resistance: 500Ω (5V), 1000Ω (12V), 2000Ω (24V)
- Coil Voltage Range: 5V DC to 24V DC
- Insulation Resistance: ≥10^10Ω at 100V
- Dielectric Strength: 200V DC open contacts, 1500V DC coil to contact
- Capacitance Between Open Contacts: 0.5pF
- Vibration Resistance: 20G
- Shock Resistance: 20G
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Life Expectancy: 100 million operations at specified load

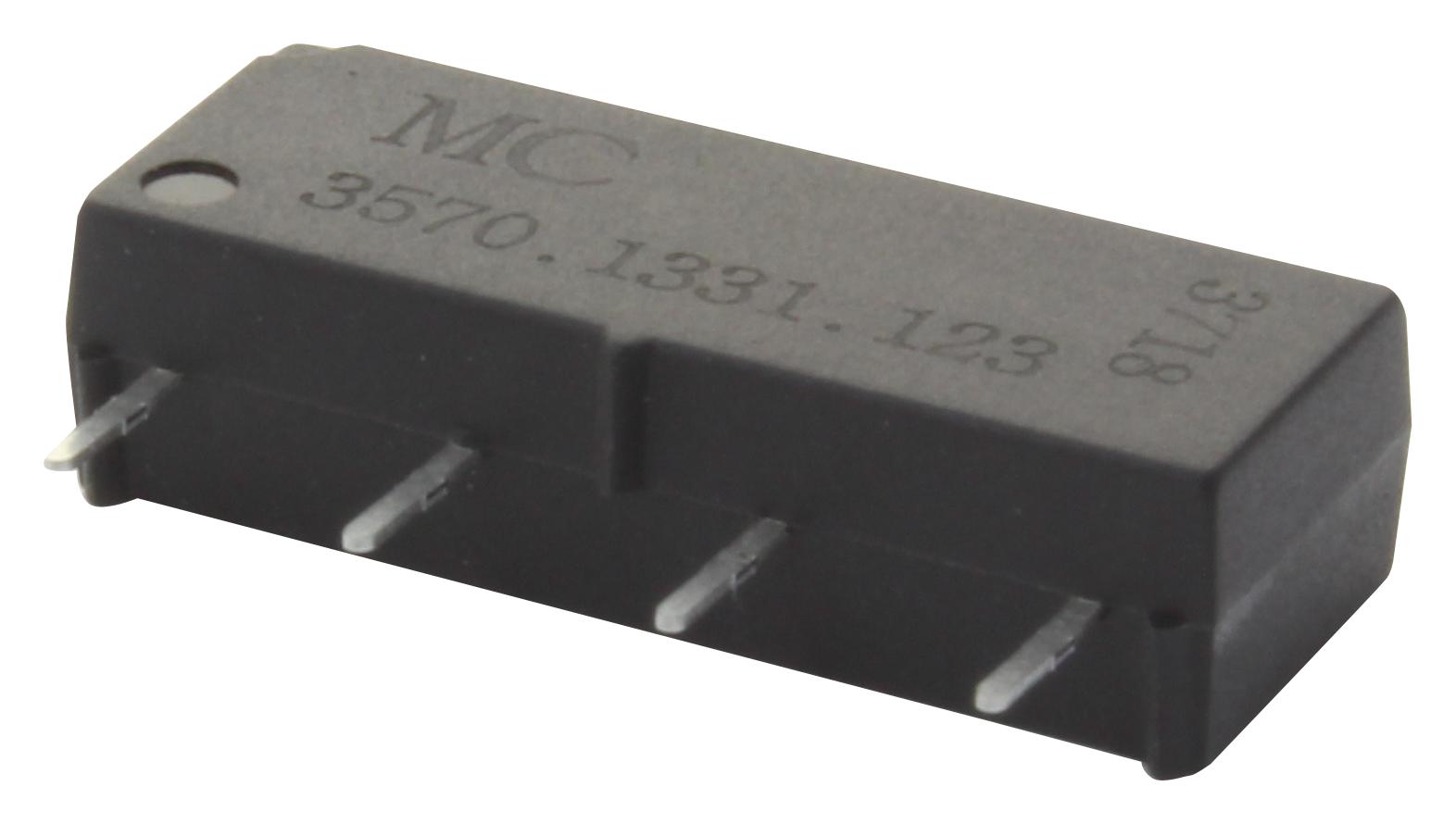

Buy the Buy Multicomp Reed Relay Part Number MC3570-1331-123 Online
Purchase the high-quality SIP reed relay online for your automation projects. With fast switching times of 0.35ms, it ensures reliable operation in demanding environments. Its robust design supports a switching power of 10W and a maximum voltage of 150V DC, making it suitable for various industrial and telecommunication applications. The relay features low contact resistance, excellent insulation resistance, and a wide temperature range from -40°C to +85°C. Buy now to enhance your electronic switching systems effortlessly.
Buy Multicomp MC3570-1331-123 now and experience fast switching and durable electronic control performance.
Frequently Asked Questions
Where can I buy MULTICOMP MC35701331123?
You can click on the BUY or RFQ button to purchase MC35701331123 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC35701331123?
You can download the MC35701331123 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC35701331123?
MULTICOMP
