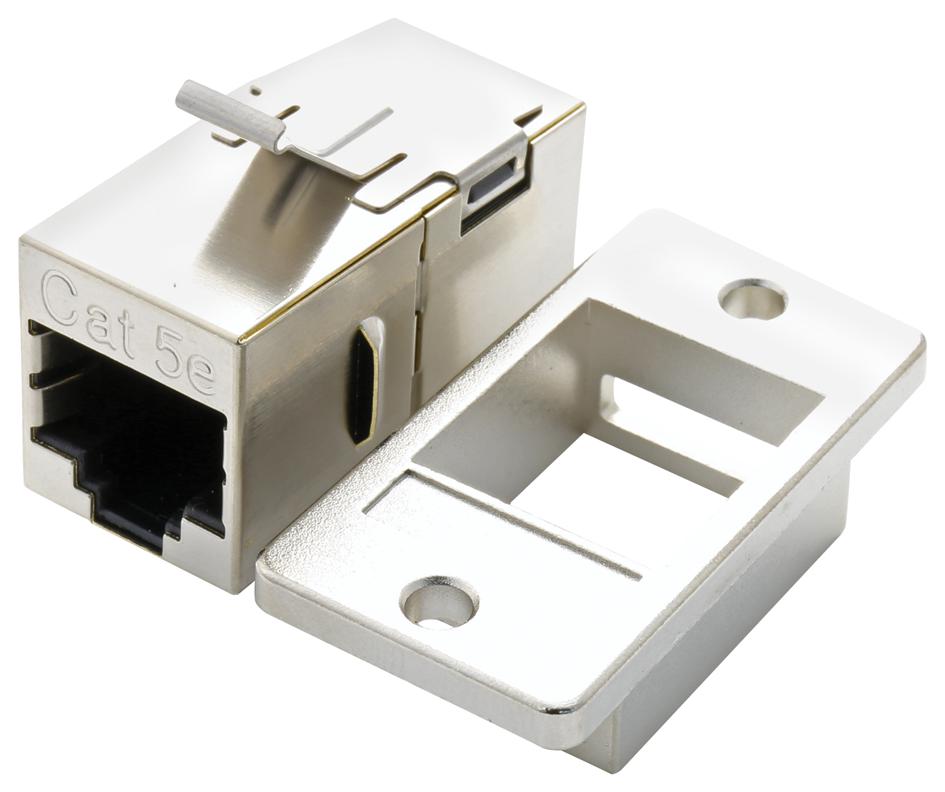

MULTICOMP MC85335201 Network Coupler
The category 5e shielded coupler with flange frame is designed for reliable network connections in industrial and commercial settings. It features a high-impact flame-retardant plastic housing and a copper alloy shield with nickel plating, ensuring durability and excellent conductivity. The device supports FCC-approved plug systems, withstands temperatures from -40°F to 150°F, and includes a zinc alloy flange with nickel plating for secure mounting. Its mechanical specifications include a plug insertion life of at least 750 cycles and a contact force of a minimum of 100 grams, making it ideal for long-term network infrastructure applications.
MULTICOMP MC85335201 Network Coupler Specifications:
- Housing: High Impact Flame Retardant Plastic
- Shielding: 0.25t Copper Alloy with Nickel Plated
- Bracket: 0.3t SUS 301
- PCB: FR4, 1mm Thickness
- Insulation Resistance: 500MQ Min.
- Contact Resistance: 20mQ Max.
- DC Resistance: 0.10 Max.
- Current Rating: 1.5 Amps
- Plug Insertion Life: 750 Cycles Min.
- Plug & Jack Contact Force: 100 Grams Min.
- Temperature Range: -40°F to 150°F (-40°C to 68°C)
- Housing Material: Flame Retardant Plastic
- Screw Size: #4-40 UNC
- Dimensions: Refer to datasheet for detailed measurements
Buy the Farnell MC8533-5201 – Reliable Network Coupler for Industrial Applications
Enhance your network setup with the reliable shielded category 5e coupler. Featuring a durable flame-retardant plastic housing and nickel-plated copper shield, it ensures a stable and protected connection. Designed for long life, it withstands high temperatures and frequent plugging. Ideal for industrial and commercial network installations, providing quick and secure connections with FCC-approved plugs. Easy to mount with its zinc alloy flange and screw fittings, this coupler guarantees consistent performance, making it the perfect solution for your networking needs.
Get Farnell MC8533-5201 today—designed for durable and reliable network connections in industrial environments.
