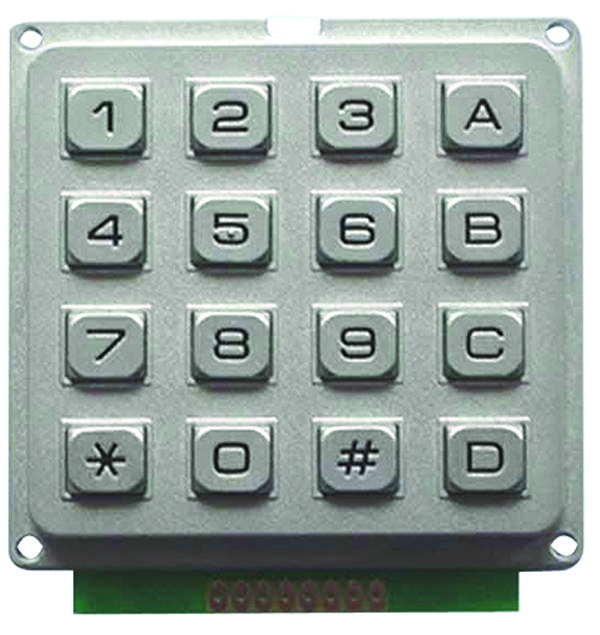

MULTICOMP MCAK1604NSSBWPMM metal matrix keypad
The MCAK1604NSSBWPMM is a waterproof, silver-colored 1 x 4 matrix keypad with 16 durable metal keys. Designed for industrial use, it features an IP67 protection rating, ensuring resistance to dust and water ingress. The keypad connects via PCB pre-drilled 2.54mm terminals and has a maximum contact resistance of 200Ω, supporting up to 20mA at 24V DC. It operates reliably within a temperature range of -20°C to 60°C, with a lifespan of approximately 2 million cycles per key. Its robust construction makes it ideal for harsh environments requiring dependable input controls.
MULTICOMP MCAK1604NSSBWPMM metal matrix keypad Specifications:
- Contact Rating: 20mA, 24V DC
- Max. Contact Resistance: 200Ω
- Life: 2,000,000 cycles per key
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +65°C
- Waterproof Rating: IP67
- Number of Keys: 16
- Keypad Array: 1 x 4 matrix
- Panel Cutout Width: 65mm
- Panel Cutout Height: 57mm
- External Depth: 64mm
- External Length/Height: 25.25mm
- Operating Force: 9mm
- Connection Terminals: PCB pre-drilled 2.54mm
- Material: Metal
- Color: Silver
Buy the Multicomp Series Waterproof Matrix Keypad: MCAK1604NSSBWPMM
Order the waterproof metal matrix keypad online today to ensure reliable performance in harsh industrial environments. Featuring IP67 protection, 16 durable keys, and a long lifespan of 2 million cycles, this keypad is ideal for automation, control panels, and machinery. With a compact design, easy integration via 2.54mm terminals, and operational temperature range of -20°C to 60°C, it guarantees lasting durability. Perfect for demanding applications, this high-quality keypad enhances operational efficiency and provides excellent user control in rugged settings.
Get Multicomp MCAK1604NSSBWPMM today—built for durability and reliable industrial operation.
Frequently Asked Questions
Where can I buy MULTICOMP MCAK1604NSSBWPMM?
You can click on the BUY or RFQ button to purchase MCAK1604NSSBWPMM from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCAK1604NSSBWPMM?
You can download the MCAK1604NSSBWPMM datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCAK1604NSSBWPMM?
MULTICOMP
