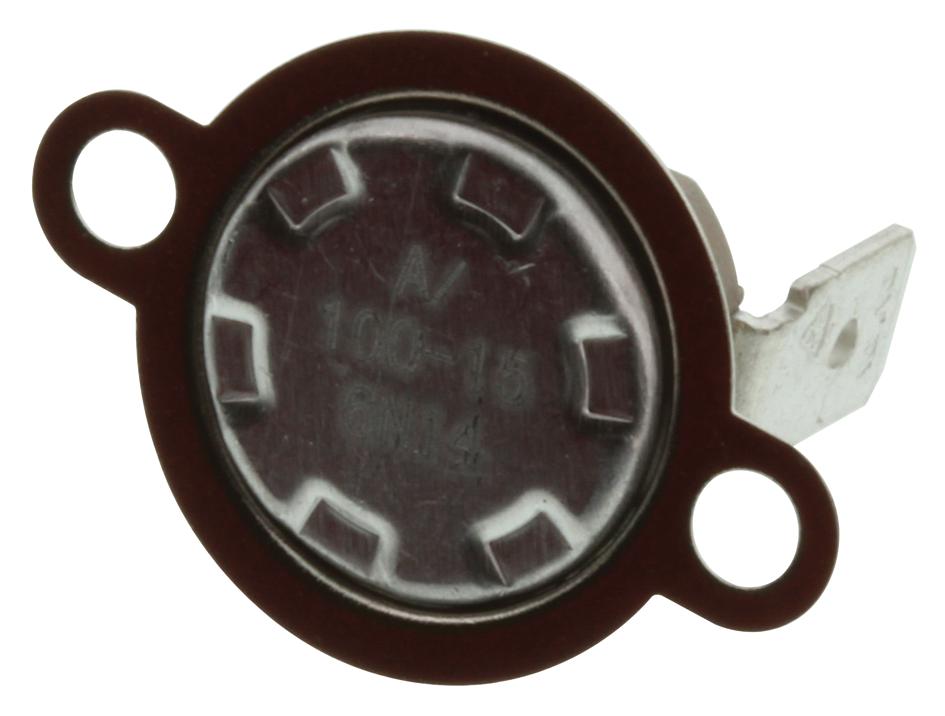

MULTICOMP T23A100ASR215 thermal switch
The T23A100ASR2-15 thermal switch features brass and steel quick-connect terminals, an aluminum sensing cap, ceramic actuating pin, and steel mounting bracket. It operates with a SPST normally closed contact at temperatures ranging from 50°C to 205°C, with a differential of 10°C to 30°C. Rated for 15 A at 125 V AC and 115 A at 250 V AC, it provides reliable thermal sensing for industrial and electronic applications. UL94V-0 flammability rating ensures safety for sensing and instrumentation tasks, with a robust construction suitable for demanding environments.
MULTICOMP T23A100ASR215 thermal switch Specifications:
- Operation Temperature: 50°C to 205°C
- Temperature Tolerance: ±5°C (fixed point), adjustable by customers
- Reset Temperature: +6°C (adjustable by customers)
- Differential: 10°C to 30°C
- Heat Resistivity: 240°C
- Electrical Rating: 15 A, 125 V AC; 115 A, 250 V AC
- Contact Resistance: 50 milliohms or less
- Dielectric Strength: 1,000 V AC for one minute between non-live parts and terminals
- Insulation Resistance: 100 Megaohms or more
- Operating Life: 100,000 cycles (class II VDE); 10,000 cycles at 15 A 250 V AC
- Construction: Brass and steel terminals, aluminum sensing cap, ceramic actuating pin, steel bracket
- Flammability: UL94V-0 rated
Buy the Buy Multicomp Thermal Switch Part Number T23A100ASR2-15 Online
Order the Multicomp thermal switch T23A100ASR2-15 online today and enjoy quick delivery. This high-quality thermal switch features brass and steel terminals, aluminum sensing cap, ceramic pin, and steel mounting bracket, supporting operation temperatures from 50°C to 205°C. Its rated for 15 A at 125 V AC, offering dependable performance for sensing, instrumentation, and industrial environments. UL94V-0 flammability rating ensures safety, while the robust build guarantees durability over extended operational cycles. Purchase now for reliable temperature control and sensing solutions.
Buy Multicomp T23A100ASR2-15 now and experience reliable thermal sensing with durable construction for industrial and instrumentation applications.
